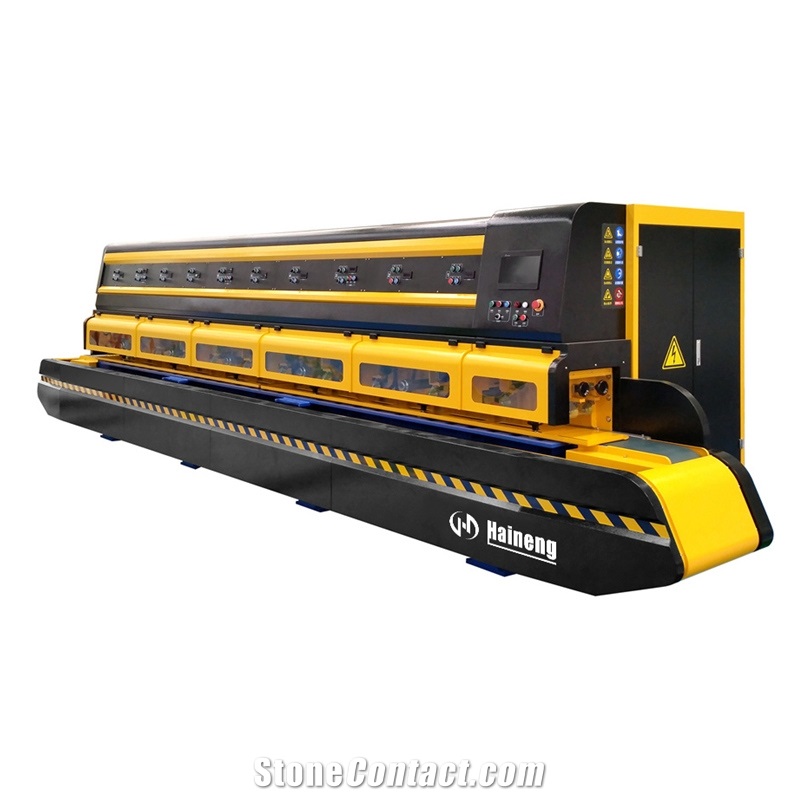

ANYTH-V Stone Slab CNC Polishing Line Machine
FOB Price:$36000-36850
Type:
Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
1.CNC polishing automatic compensation function.
2.Automatic hovering of material shortage, automatic recovery of incoming materials.
3.Automatic wheel repair correction.
4.Manual rapid lifting, convenient wheel change function.
5.Overload automatic shutdown, automatic fault detection.
6.Conveyor belt automatic slag cleaning function.
7.Processing small lines automatic break function.
8.High precision lifting system.
9.Multi-function touch display.
10.Intelligent operating system, easy to operate.
Technical Data
Parameters |
Unit |
XTJ-V10 |
XTJ-V12 |
Spindle rotation speed |
rpm |
1200-2800 |
1200-2800 |
Gross power |
kw |
about 87 |
about 115 |
Working width |
mm |
300-400 |
300-400 |
Processing thickness |
mm |
150 |
150 |
Spindle power |
kw |
1#-10#=7.5kw,2#15kw |
1#=7.5kw,2#=15kw,3#-5#=11kw,Other 7.5kw |
Machine overall length |
mm |
7600 |
8000 |
Profiling/Polishing wheel Dia. |
mm |
200/260 |
200/260 |
Cutting speed |
m/min |
0.5-1.5 |
0.5-1.5 |
Spindle dia. |
mm |
60 |
60 |
Approx. Weight |
Kg |
8000 |
8300 |
Consumption |
T/h |
7.5 |
7.6 |
Machine overall width |
mm |
1850 |
1850 |
CNC Polishing wheel |
pcs |
8 |
8 |
Machine overall height |
mm |
2000 |
2000 |
Profiling wheel |
pcs |
2-4 |
2-4 |

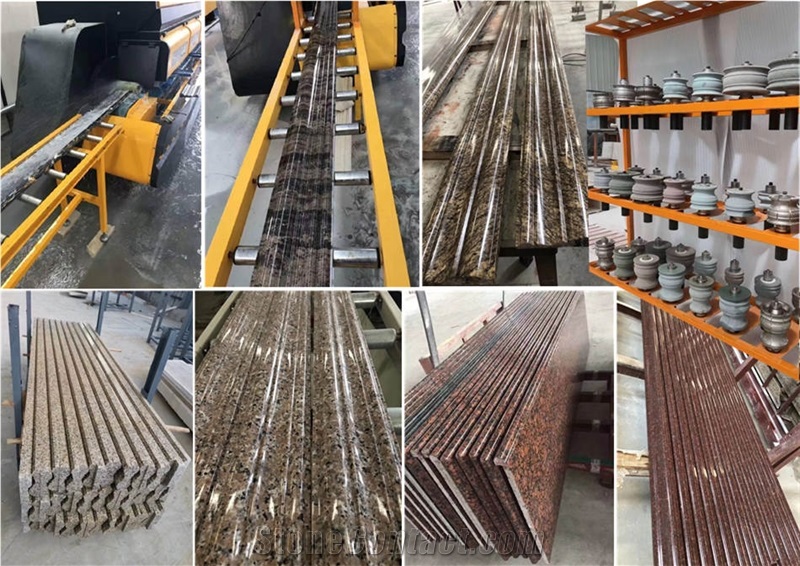

Processed Stone Photos
Components
-
Spindle head
¥Payment Required

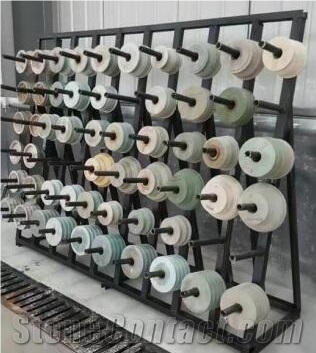

Consumables
-
Profiling/Polishing wheel
Video
Install Video
Operation Video
