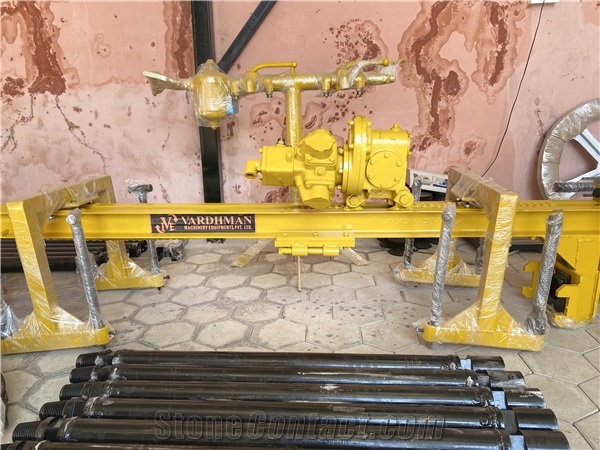

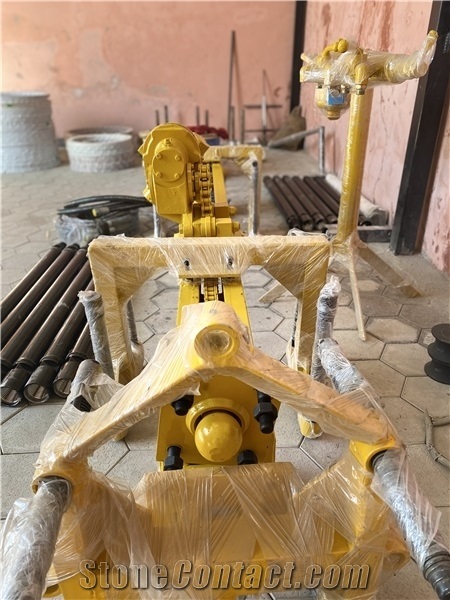

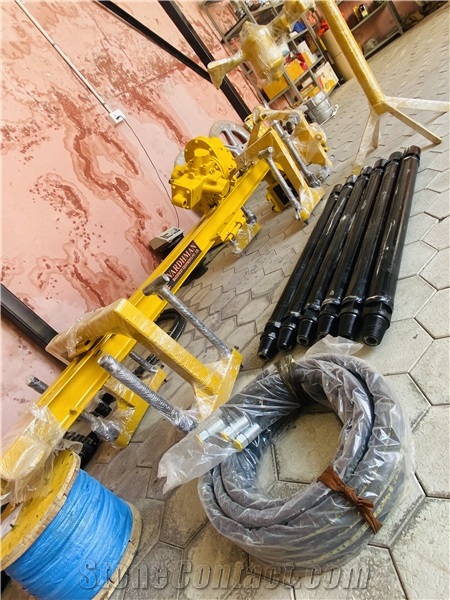

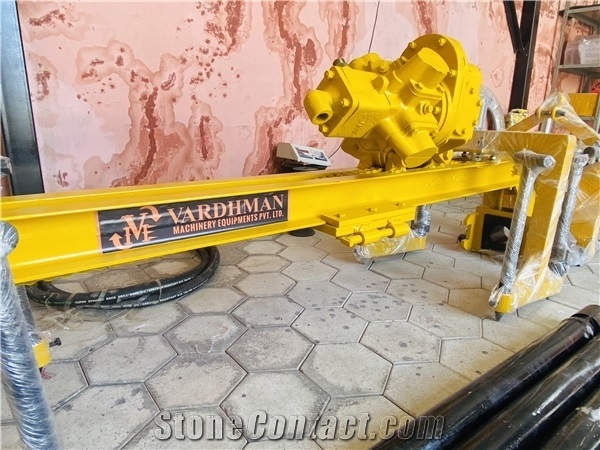

Line Drilling Machine (LD-4) / Quarry Rock Drilling Machine
FOB Price:$3500-5500
Type:
Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3-4 DAYS
Warranty:3 Months
Install and Guarantee:Customer pay for installation
Maintenance:Regular guidance & maintenance
Trade Terms
Delivery Details: FOB,CIF
Payment :
Supplier
Eatablished :May 09,2018
Main Product:
Wire Saw Machine , Air Bags, Wire Saw Accessories, Line Drill Machine, Diamond Wire Rope|
Machinery Function Features
LD-4 (LINE DRILL MACHINE) (TECHNICAL SPECIFIATION)
Mode of Drilling NG
Down the Hole Air Hammer AIR HAMMER
Hole Diameter 90mm ~ 115mm (3 ½” ~ 4½”)
Max. Drilling Depth (Vertical) 30 Mtrs. (100 ft)
Max. Drilling Depth (Horizontal) 20 Mtrs. (65 ft)
Drill Pipe Diameter 60mm / 76mm (2” / 3”)
Drill Pipe Length 1.22mtrs. (4ft)
Rotary Head 4 Cylinder Piston type Air Motor with spur type Reduction Gearbox
BHP 4.5
RPM 0-50
Max. Torque 1125Nm (10,000 lbf.in)
Free Unit
4 Cylinder Piston type Air Motor with spur cum worm drive Gearbox
BHP 4.5
Type of Feed Chain feed
Pull Down Force 0~2200 kg
Pull Up Force 0~2200 kg
Pull Up & Pull Down Speed 0~ 15 mtrs./min
Technical Data
Parameters |
Unit |
VME LD-4 |
Usable extension rods length |
m |
1.22 |
Hole diameter Φ |
mm |
90 ~ 115 |
Usable extension rods dia Φ |
mm |
60 / 76 |
Max. Drilling Depth (Horizontal) |
mt |
20mt (65 ft) |
Max. Drilling Depth (Vertical) |
mt |
30mt (100 ft) |
Processed Stone Photos
-
DRILL RODS 4 FT
Components
-
SANDVIK BIT
Consumables
-
HAMMER
