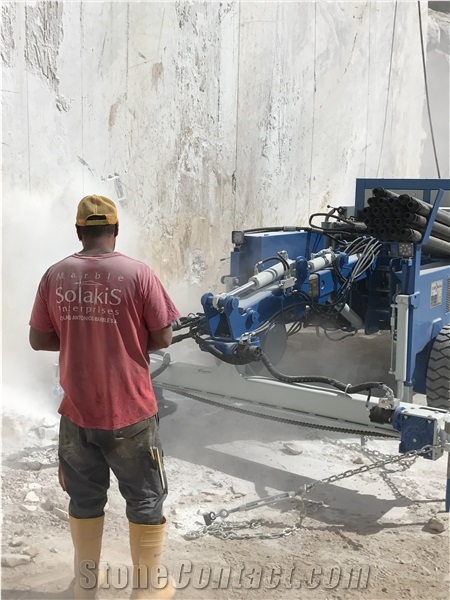

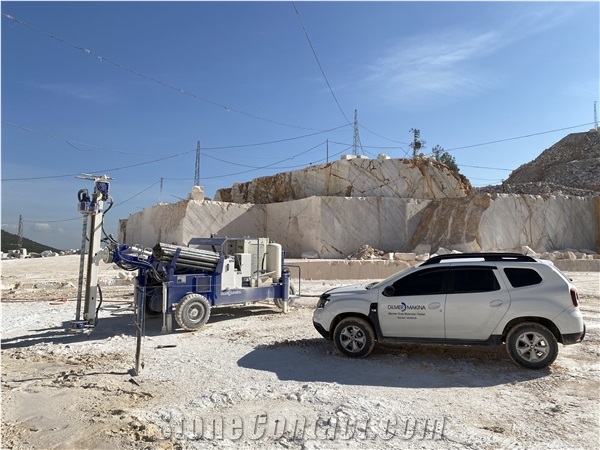

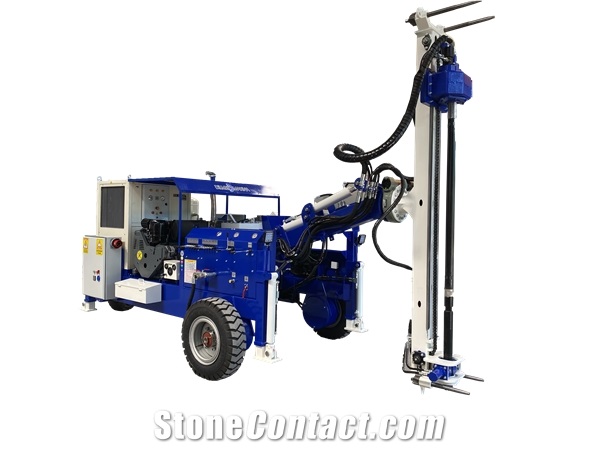

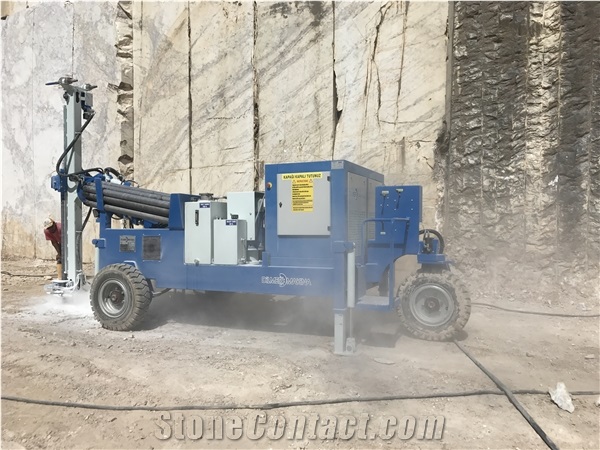

3 Wheel Drive Hydraulic Marble Quarry Drilling Machine
FOB Price:
Type:
Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
Usage:
Marble, Limestone, Onyx, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Feb 19,2007
Main Product:
Machine, Quarry, Quarrymachine, Marble, Marblequarrymachine, Export|
Machinery Function Features
Electric motor power 22 kW 1500 rpm
Diesel engine power 43 hp
Compressor engine power 37 kW - 45kw (engine options)
Progress Hydromotor (pressure and speed adjustable)
Drilling device Geared hydromotor
Drilling capacity 4-6 min/1.5 m (according to marble hardness)
7-10 min/2 mt (according to marble hardness)
Control unit Hydraulic
Compressor air pressure 10 bar
Air consumption 2.1 m³ and 3.7 m³ options
TIJ size and quantity 156 cm x 20 pieces
Drive system Hydraulic
Width-height 217x567x205 cm
Weight 4800 kg
Technical Data
Parameters |
Unit |
3 Wheel Drive Drilling Machine |
Machine length |
cm |
567 |
TIJ size and quantity |
cm/nr |
156 cm / 20 pieces |
Compressor engine power |
kW |
37 - 45 (engine options) |
Machine height |
cm |
205 |
Compressor air pressure |
bar |
10 |
Machine width |
cm |
217 |
Total weight |
Kg |
488 |
Diesel engine power |
hp |
43 |
Air consumption |
m³ |
2.1 and 3.7 options |
Drilling capacity |
min/m |
4-6 min/1.5 mt - 7-10 min/2 mt (according to marble hardness) |
Total installed power |
kw |
22 |
Electric motor rotation speed |
rpm |
1500 |
