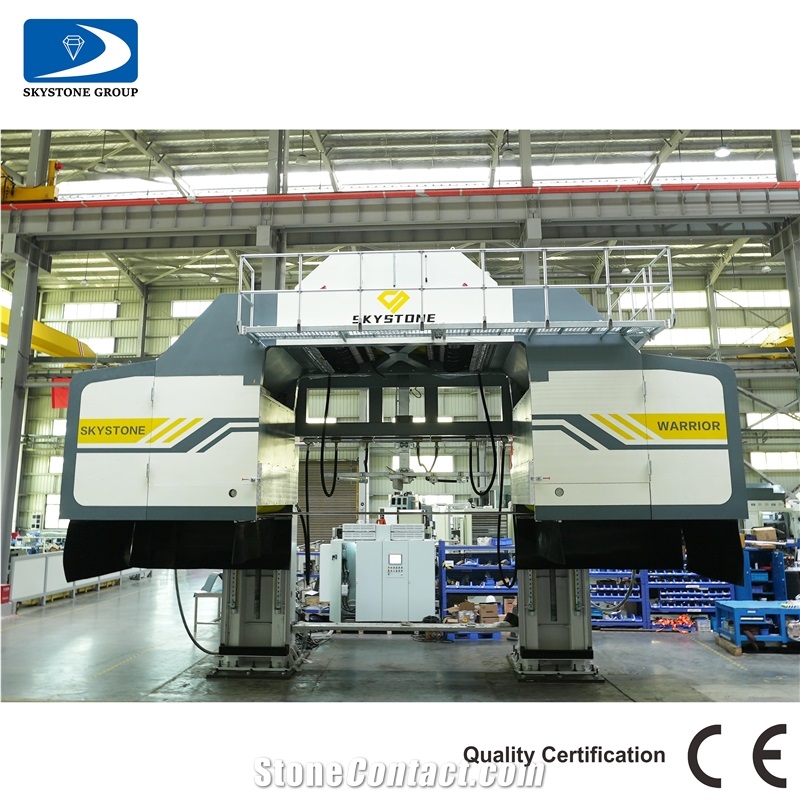

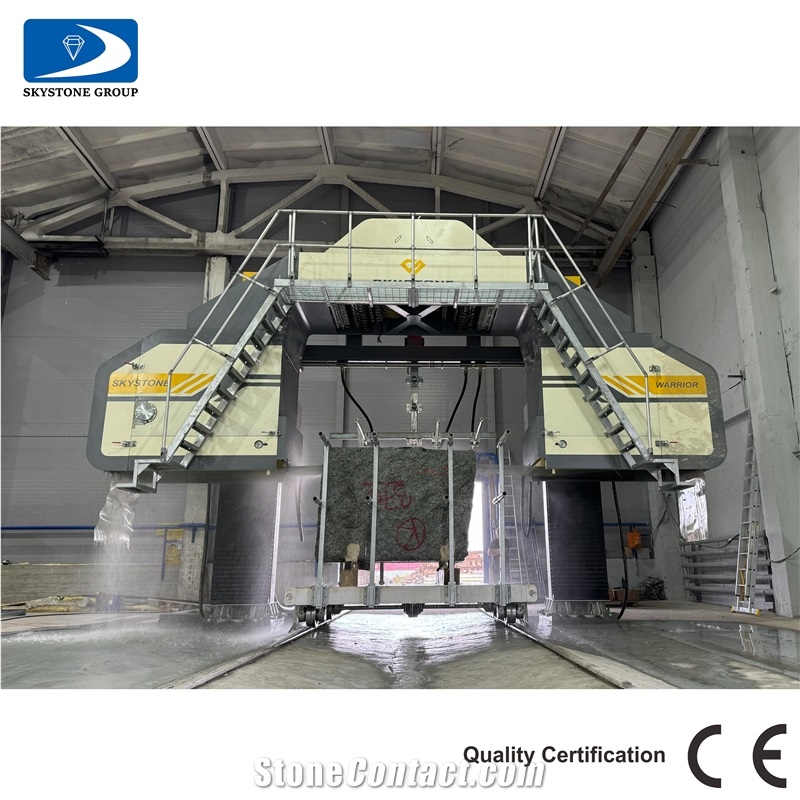

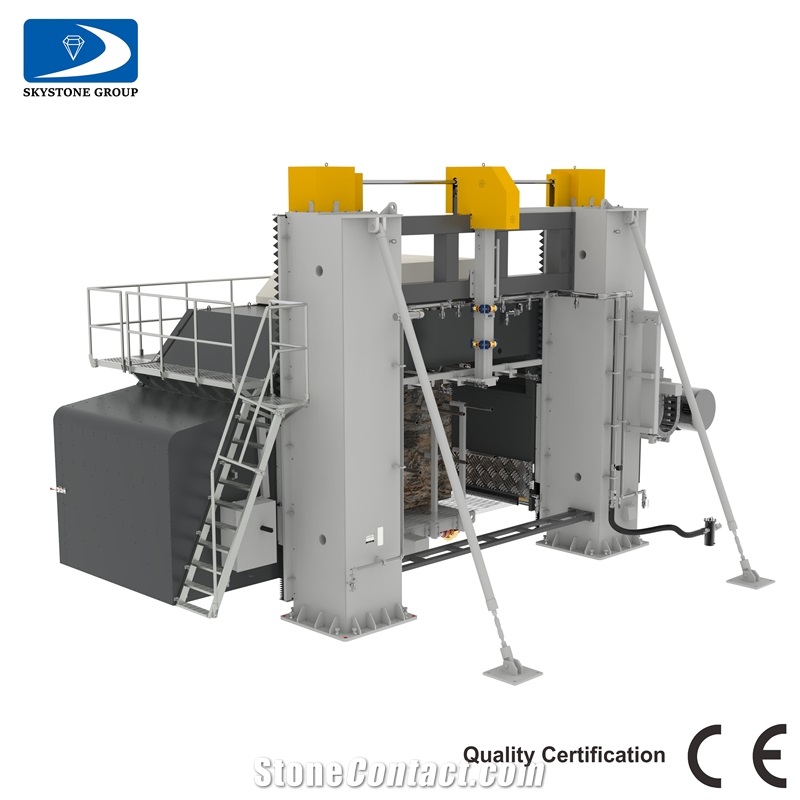

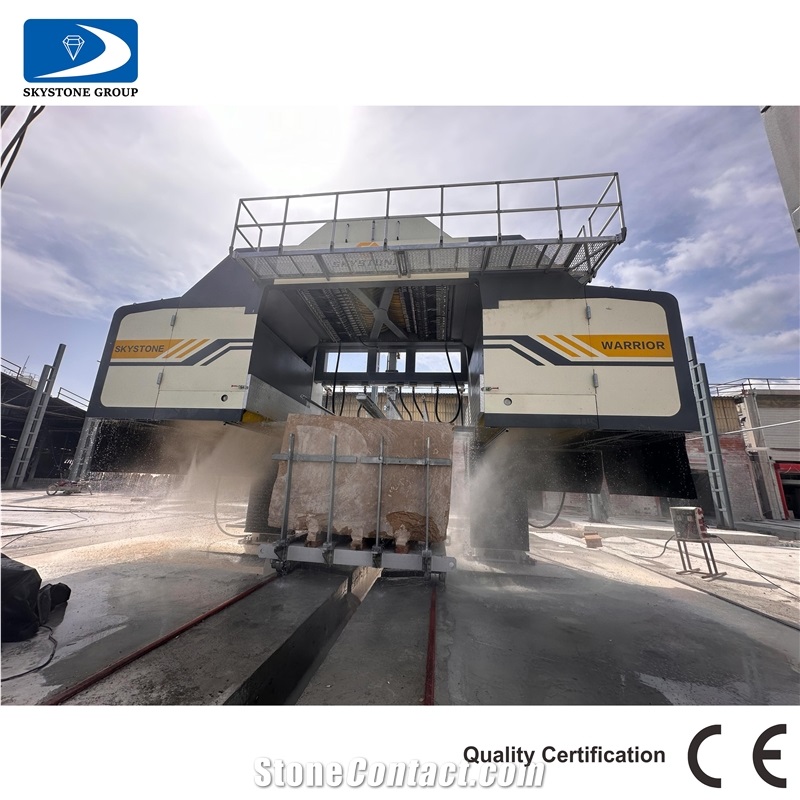

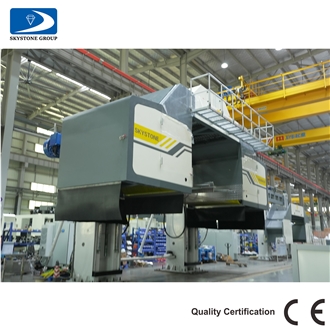

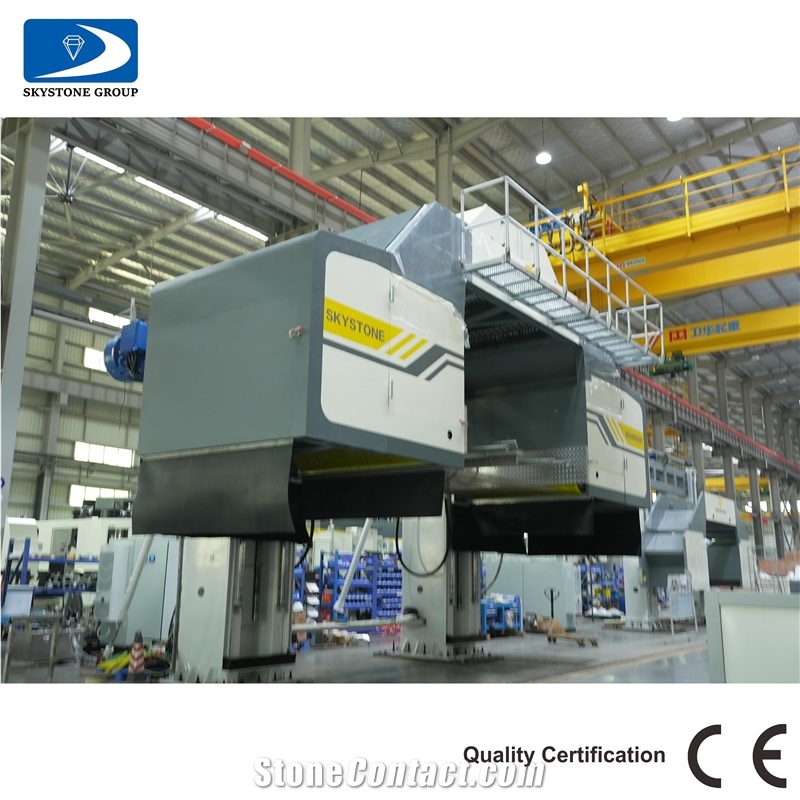

Reliable Quality Multi-Wire Saw Machine
FOB Price:$9999999-9999999
Supplier
Eatablished :Jan 01,2003
Main Product:
Stone Tool, Wire Saw Machine, Quarry Machine, Drilling Machine, Diamond Wire Saw, Wire Saw|
The latest triangle structure technology, higher cutting efficiency, and the stability of running. Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety. Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input. The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance. The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions.
Parameters |
Unit |
SMW12 |
SMW16 |
SMW32 |
SMW50 |
SMW74 |
Maxcut length |
mm |
3400 |
3400 |
3400 |
3400 |
3400 |
Slab thickness |
mm |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
Maxcut height |
mm |
2200 |
2200 |
2200 |
2200 |
2200 |
Wire diameter |
mm |
7.3 |
7.3 |
7.3 |
7.3 |
7.3 |
Total power |
kW |
65 |
85 |
145 |
216 |
304 |
Main motor power |
kW |
55 |
75 |
132 |
200 |
280 |
Tension |
kg |
250 |
250 |
250 |
250 |
250 |
Machine weight |
t |
18 |
22 |
38 |
55 |
70 |
Machine size |
m |
10*3.0*6.5 |
10*3.0*6.5 |
10*4.5*6.5 |
10*5.0*6.5 |
10*5.5*6.5 |
Wire length |
m |
20 |
20 |
20 |
20 |
20 |
Line-speed |
m/s |
0-40 |
0-40 |
0-40 |
0-40 |
0-40 |
Cooling water |
L/min |
180 |
250 |
500 |
750 |
1100 |
Wire quantities |
pcs |
12/9 |
16/12 |
32/24 |
50/38 |
74/55 |
-

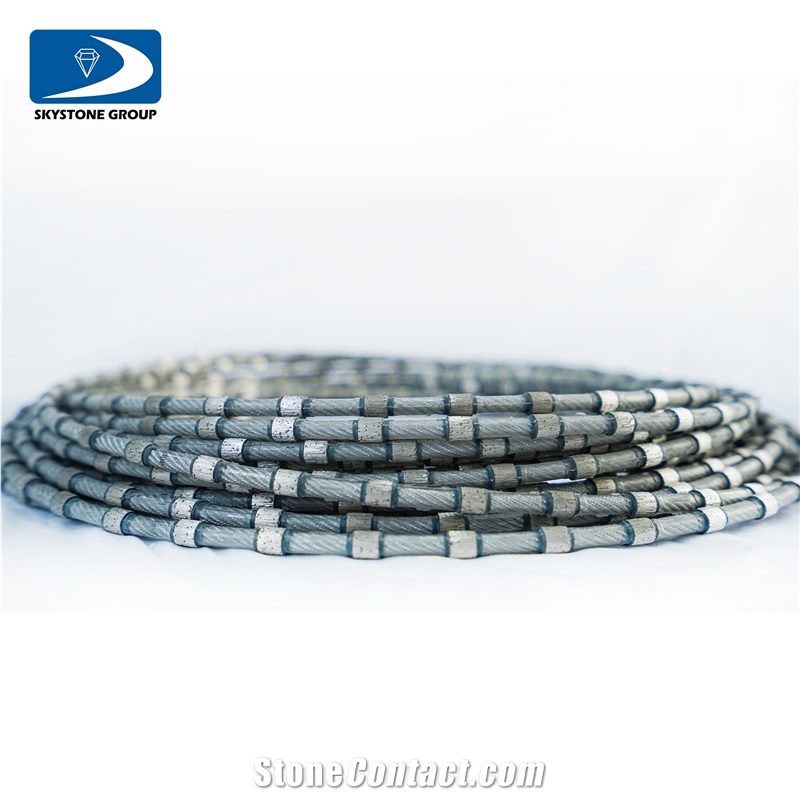

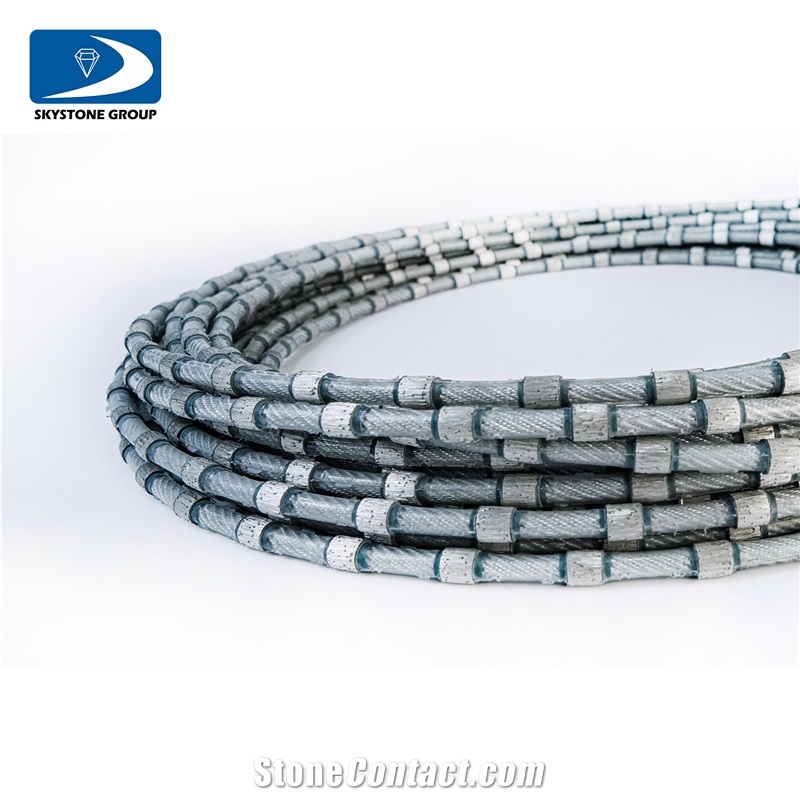

wire
-
wire
