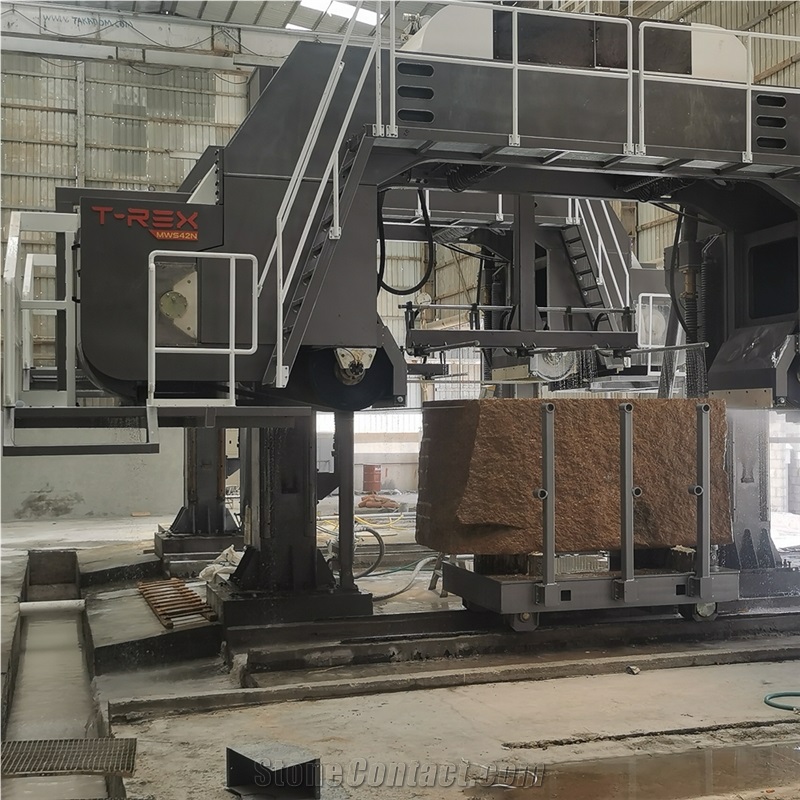

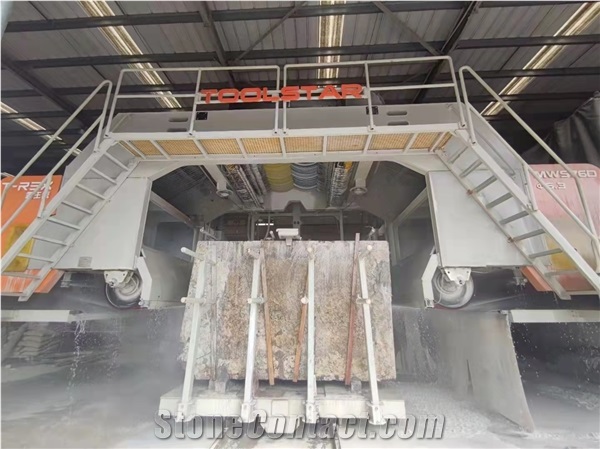

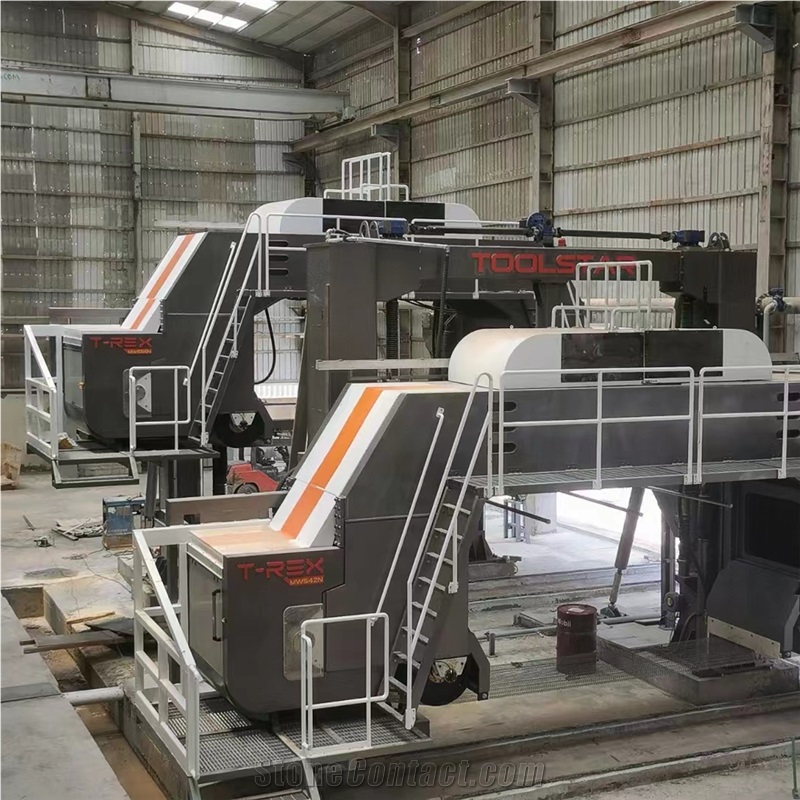

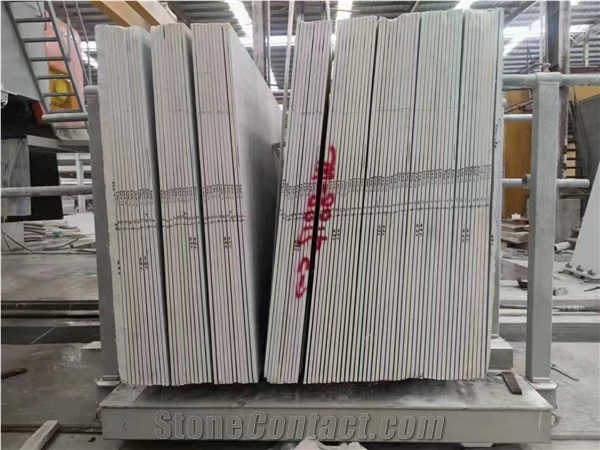

Multi Diamond Wire Saw Machine For Marble And Granite Block Cutting

Name: Multi Diamond Wire Saw Machine For Marble And Granite Block Cutting
Brand: CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO., LTD
SKU: 4897
Price: 300000 USD
Availability: InStock

FOB Price:$300000-500000

Type: Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 3 months

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Trade Terms

Port: shenzhen- China

Delivery Details: FOB,CFR,CIF,EXW,FCA

Payment :

Supplier

CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO., LTD

TOOLSTAR

China level 3YR

Eatablished :Sep 15,2022

Main Product:

Multi Wire Saw Machine, Block Dressing Machine, Quarry Machine, Dth Bit, Diamond Wire Saw, Dth Hammer|

Contact supplier

Start Order

You may also like

Stable Multi Wire Saw Machine For Granite And Marble Blocks Cutting

Multi-Wire Saw Machine For Granite And Marble Blocks Sawing

QCXE-1500 cnc wire saw machine

Super Thin Diameter Cable Multi Wire Saw Machine For Marble Slabs Cutting

2025 High Benefit Ultra Thin Multiwire Saw Stone Block Cutting Machine

Product Detail
Company Profile

Overview

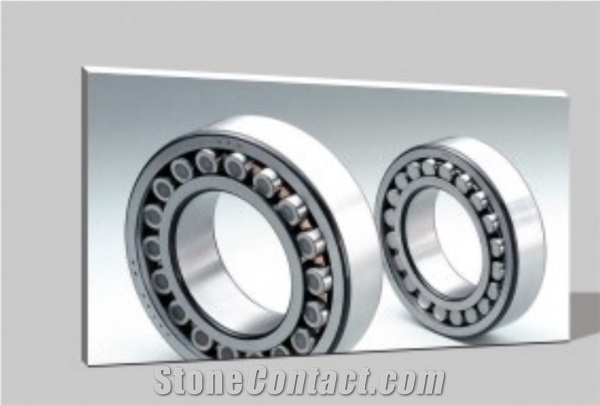

Components

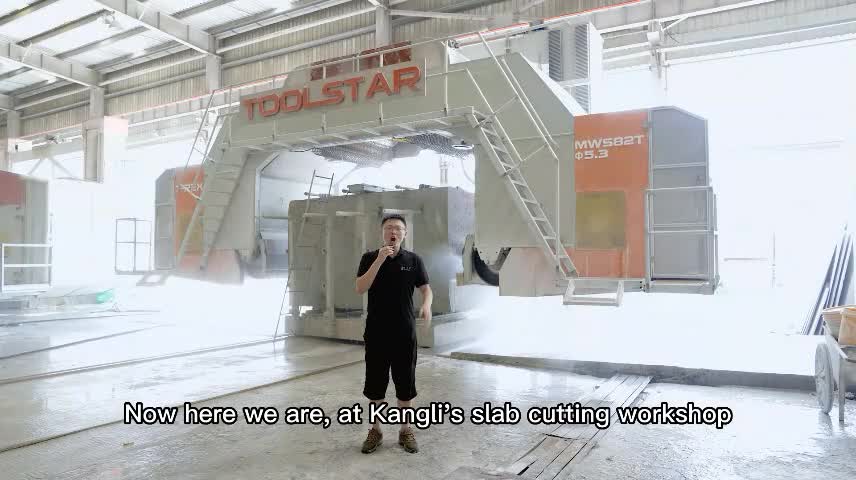

Video
Trade Terms

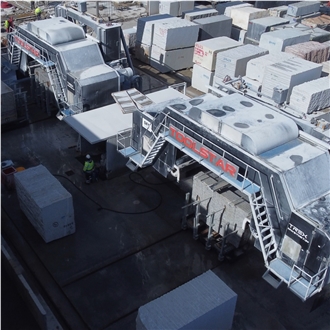

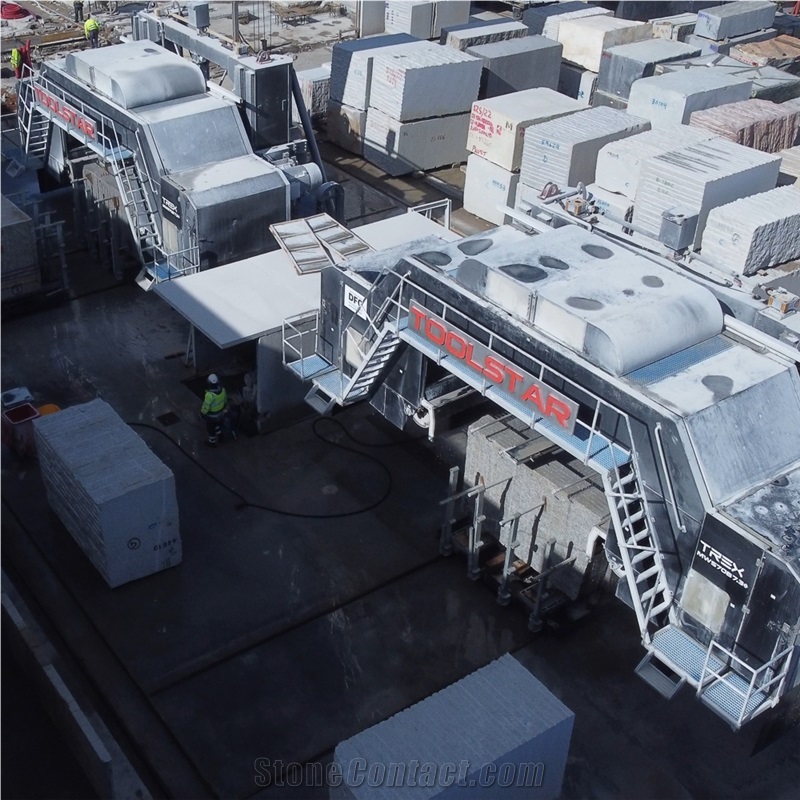

Customer Case

Machinery Function Features

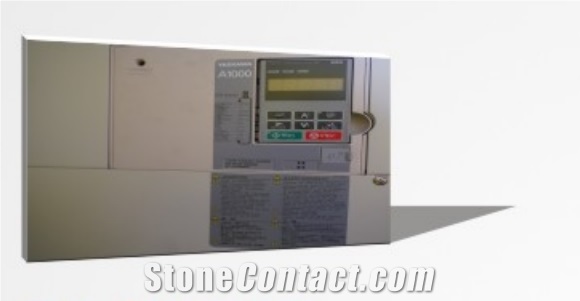

1. Adopt international brand of motor/inverter/electronics to maintain the stable workingand excellent performance; 2. Stainless steel covers with three coating and painting ensures the good protection from the rusts,especially in the water and dust working condition. 3. Ergonomical and user-friendly design makes it easy for operator to run the machine, especially for assembling thewires and regular maintainence.

Technical Data

Parameters	Unit	T-Rex MWSXB with 7.3mm Diameter Wires	T-Rex MWSXN with 6.3mm Diameter Wires	T-Rex MWSXS with 4.3mm-4.8mm Diameter Wires
Pitch groove wire driving	mm	2450	2450	2450
Max. Cutting height	mm	2100	2100	2100
Max. individual diamond wire tension	Kg	220-260	180-220	160-200
Output number of slabs 30mm per linear mt.	nr	it depends	it depends	it depends
Worktable max. rotate angle	°	not allowed	not allowed	not allowed
Machine length (L)	mm	11200	11200	11200
Worktable load capacity	T	40-80	80	62
Production efficiency 20mm thick.	m2/h	it depends，contact us to know more details	it depends，contact us to know more details	it depends，contact us to know more details
Installed electrical power	kw	57-300	110-300	220-300
Diamond wire length	mm	21.52	21.52±0.02	21.52
Max. Cutting length	mm	3400	3400	3400
Slabs nominal thickness	mm	20/30/40/50/60/70/80/90/100	20/30	18
Cooling water(min. required pressure 3.5 bar)	L/min	150-1500	1000-1500	1500
Machine height (H)	mm	6500	6500	6500
Voltage/Frequency	V/Hz	it depends on which country	it depends on which country	it depends on which country
Wires set width	mm	7.3	6.3	4.3-4.8

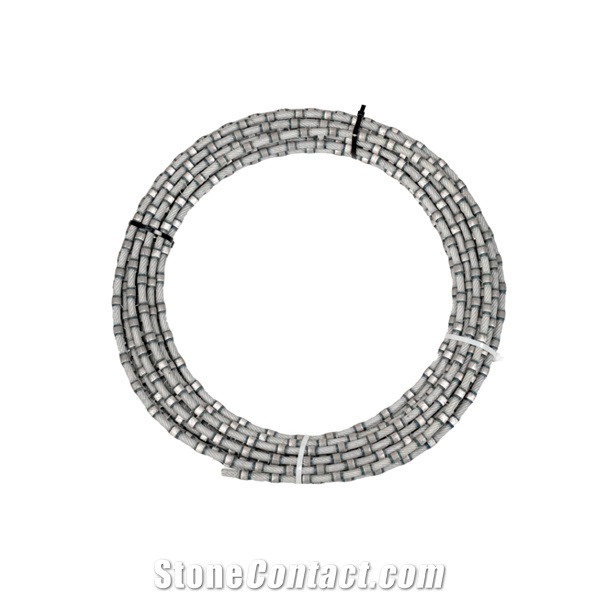

Diamond bead diameter	mm	7.3	6.3	4.3
Main motor power	kw	37-280	90-280	200-280
Dim. Trolley Size/Worktable size	mm	20002500-25003200	2500*3200	2500*3200
Machine width (W)	mm	2600-7400	4500-7400	4500-7400
Diamond wires speed	m/s	0~35	0~35	0~35
Max. Number of wires for sawing 20mm thick.	nr	76	76	88
Max. Number of wires for sawing 30mm thick.	nr	76	76	88
Wire pitch for sawing 20mm thick.	mm	28.5	27.9	24.8
Max. Cutting width	mm	600-2100	600-2100	600-2100
Fast lowering unit power	kw	37	132	200
Wire pitch for sawing 30mm thick.	mm	38	37.2	none
Approximative Weight	T	25-62	50-62	50-62
Output number of slabs 20mm per linear mt.	nr	it depends	it depends	it depends
