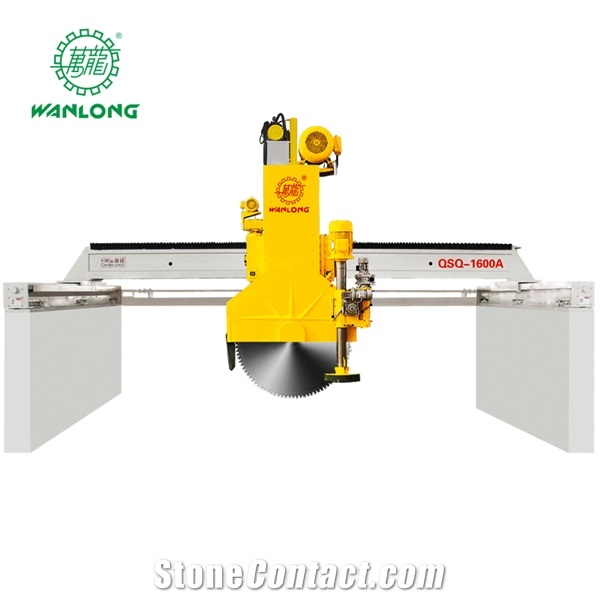

WANLONG QSQ-1200A/1600A Vertical Plus Horizontal Cutting Machine

Name: WANLONG QSQ-1200A/1600A Vertical Plus Horizontal Cutting Machine
Brand: FuJian WanLong Diamond Tools CO,.LTD
SKU: 5115
Price: 28500 USD
Availability: InStock

FOB Price:$28500-30500

Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 20 days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

FuJian WanLong Diamond Tools CO,.LTD

WANLONG

China

Eatablished :Jan 08,1993

ISO9001-2000,SGS,TUV

Main Product:

Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|

Contact supplier

Start Order

You may also like

Gantry Type Of Block Squaring/Trimming Machine

SQC/PC-3500-4D 4 Post Guide Combined Block Cutting Machine

QQJ-2200 / QQJ-2500/ QQJ-3000 Circular saw block cutting machine multi cutter

Heavy Duty Bridge Type Medium Block Cutting Machine

JOBORN Giant Disc Bridge Type Block Cutting Machine

Product Detail
Company Profile

Overview
Components
Customer Case

Machinery Function Features

QSQ-1200A 1600A has vertical and horizontal blade working on the same machine. It is designed as per the understanding of processing marble or granite block into slabs and tiles. Strong motor power,heavy-duty steel body, and user-friendly operation system as well as easy-to- maintain of machine that is an ideal machine for choice.

Technical Data

Parameters	Unit	QSQ-1200A	QSQ-1600A
Bridge transversal stroke (Y axis)	mm	7260	7260
Horizontal disc diameter	mm	400-600	400-600
Approximate Weight	Kg	9000	9500
Maximum block width	mm	2100	2100
Machine height	mm	6100	6100
Maximum block height	mm	950	1100
Production Capacity	m2/h	8-9	8-9
Machine width	mm	3800	3800
Maximum block length	mm	3800	3400
Disch vertical stroke ( Z axis)	mm	1350	1350
Disc cutting speed ( X axis)	m/min	4-3	4-3
Cut/return stroke ( X axis)	mm	3800	3400
Water consumption	m3/h	20	20
Main motor power	KW	55/75	55/75
Horizontal disc motor power	kw	11	11
Max. cutting depth	mm	950	1100
Control system		PLC(imported Brand)	PLC(imported Brand)
Vertical disc diameter	mm	1200	1600
Machine length(front)	mm	7400	7400

Software

1. SIEMENS or indigenous main motor, 45/55KW.
2. PANASONIC PLC, PANASONIC converter, FUJI contactor
3. Encoder for X, Y, Z (left & right, up & down, and forward & backward) movement.
4. Crossbeam length 7.26 meter, Side beam length 3.7 meter
5. Equiped locking devices on side beams to avoid crossbeam shifting
6. Add cloth in front of water cover.
7. with pulley cover for better protection
8. Adopts reductor RV130 for feeding.
9. Horizontal blade unit included

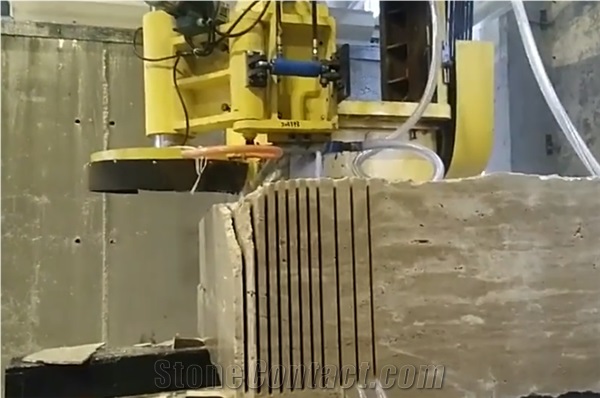

Work Example

It is designed as per the understanding of processing marble or granite block into slabs and tiles. Strong motor power, heavy-duty steel body, and user-friendly operation system as well as easy-to- maintain of machine that is an ideal machine for choice.

Processed Stone Photos
