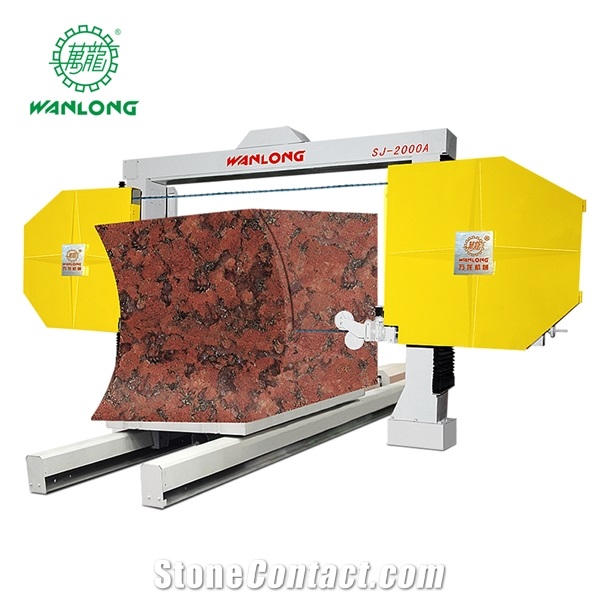

Stone Machinery SJ-2000A Numerical Control Wire Saw Machine
FOB Price:$32000-33000
Supplier
Eatablished :Jan 08,1993
ISO9001-2000,SGS,TUV
Main Product:
Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|
Parameters |
Unit |
SJ-2000A |
Dimensions of turning trolley |
mm |
2000*1300 |
Machine height (H) |
mm |
3770 |
Block max. cutting width |
mm |
2000 |
Main motor power |
kw |
7.5 |
Machine length (L) |
mm |
6810 |
Available space for the transit of the block |
mm |
2000 |
Machine Width (W) |
mm |
5354 |
Diamond wire length |
mm |
15000 |
Diamond wire linear speed |
m/s |
27-35 |
Water consumption |
m3/h |
6 |
Block max. cutting height |
mm |
1500 |
Diamond bead maximum diameter |
mm |
11 |
Approximative Weight |
Kg |
7500 |
This machine has an independent guide rail on each of the four columns. The flywheel elevates and lowers along these guide rails. The flywheel works stably, which improves the service life of the diamond wire saw. Flywheel tension has a stable, constant stretch mode to enhance cutting accuracy. CNC system makes the man-machine interface easy and flexible. Diverse, complex,2-dimensional surfaces can be processed. Guide wheel uses a four-layer sealed protection system to greatly improve cutting accuracy. The linear cutting speed can be adjusted according to different cutting requirements. The protective cover is waterproof and highly durable.
- SIEMENS or indigenous premium beand main motor, 7.5KW
- 2. Adopts servo motor for lifting
- 3. Adopts stepping motor for guide wheel rotation and worktable forward & backward movement.

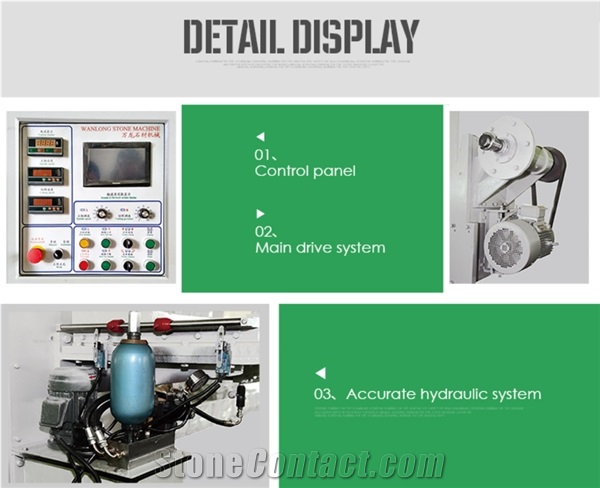

- 4. Touch sensitive Panel Easy for worker to operate.
