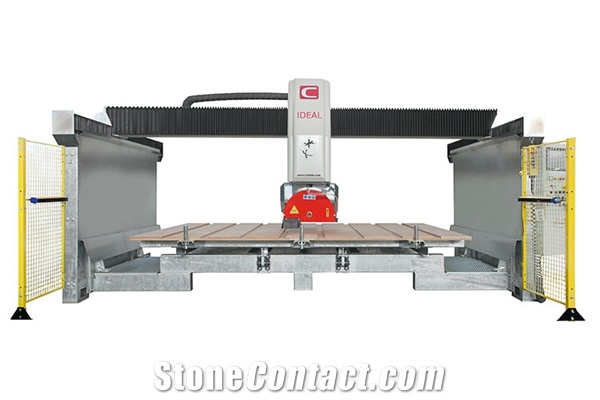

IDEAL R180/360 Automatic Bridge Saw Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Oct 01,1990
Main Product:
CNC Bridge Saws, CNC Routers, Engraving Machines|
Machinery Function Features
automatic bridge saw with controlled head rotation. The four axis are motorized with brushless motor and controlled and interpolated. The axis movement is on tilted precise racks and the sliding is on linear ball bearing guides protected by bellows.

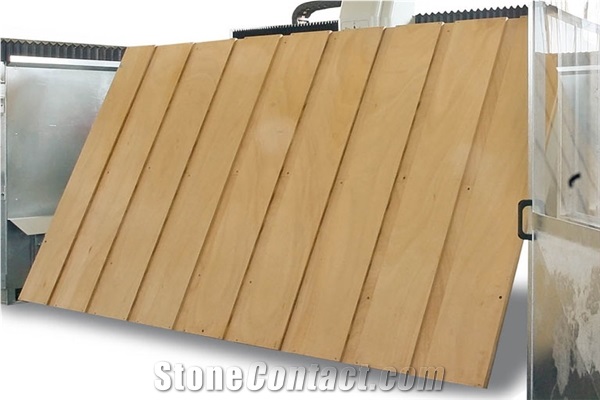

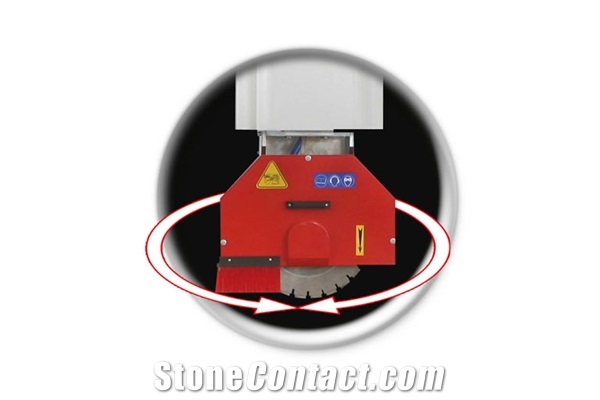

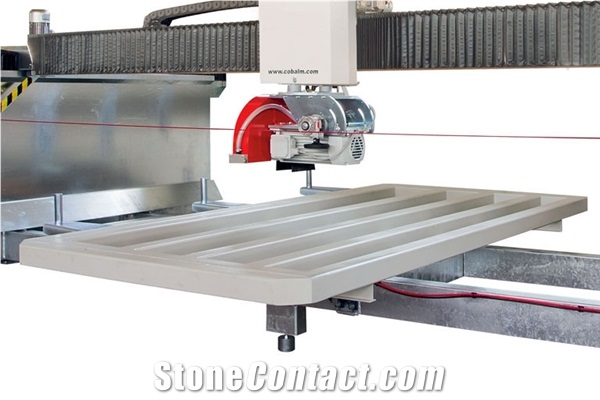

Single block machine in rugged costruction, built in electrowelded metal that has been hot galvanized and treated with special ceramic paints. Worktop, constructed with thick metallic tubular structure. Electric rotation and manual tilting 0-90 ° of the cutting head.

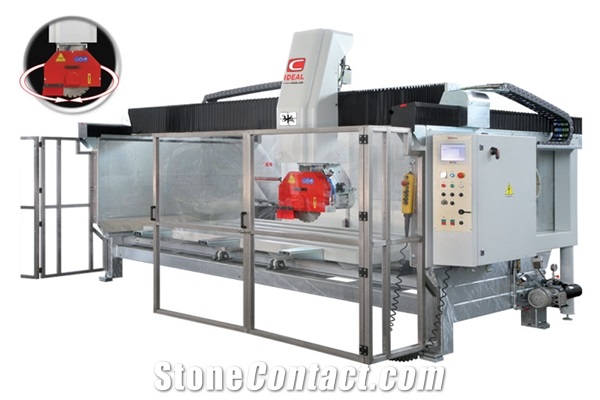

Industrial touch-screen control panel with optimizer of cutting program and MOULDING.
Technical Data
Parameters |
Unit |
IDEAL R180/360 |
Machine width |
mm |
2590 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
0/12 |
Disc diameter |
mm |
400/625 |
Disc motor power |
kw |
7.5/11 |
Machine height |
mm |
2910 |
Machine length |
mm |
5180 |
Worktable Weight |
Kg |
2900/3150 |
Head raising/lowering stroke(Z axis travel) |
mm |
270 |
Max. workable thickness |
mm |
90/200 |
Horizontal stroke(X axis travel) |
mm |
3500 |
Bridge transversal stroke(Y axis travel) |
mm |
1900 |
