IDEAL Motorized Bridge Cutting With Three Axes
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Oct 01,1990
Main Product:
CNC Bridge Saws, CNC Routers, Engraving Machines|
You may also like
Machinery Function Features

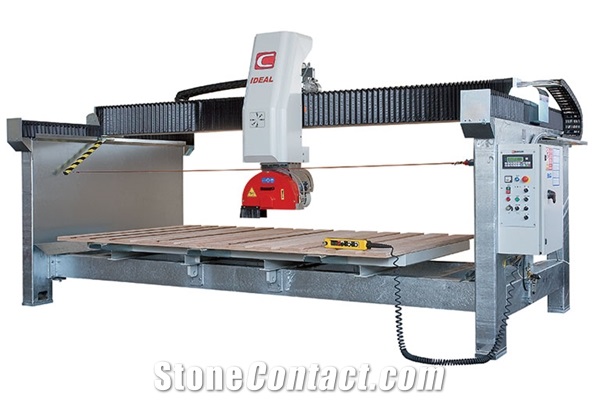

motorized bridge saw with three axes with servoventilated AC motor, controlled by positioner.

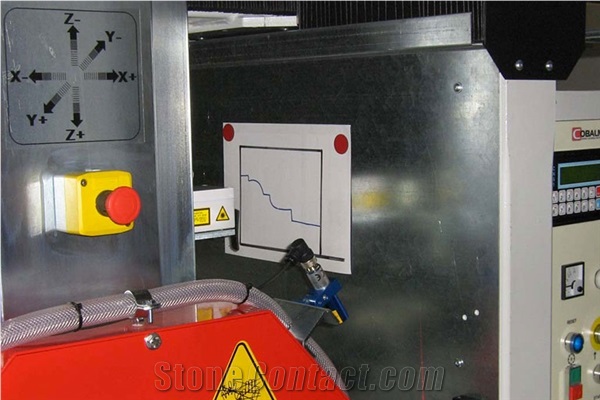

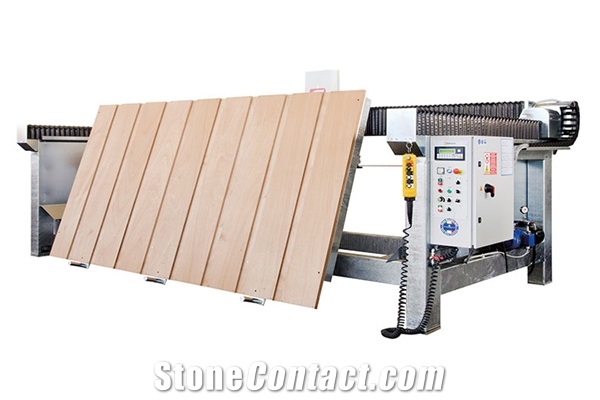

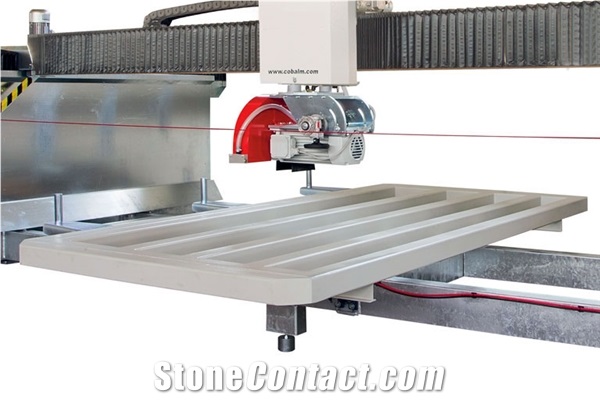

Single block machine in rugged costruction, built in electrowelded metal that has been hot galvanized and treated with special ceramic paints. Worktop, constructed with thick metallic tubular structure. It is fast, precise and reliable, builty of sturdy metal and does not require masonry work for installation. Electric rotation and manual tilting 0-90 ° of the cutting head, as standard. Control panel with color display touch-screen TFT 7”.
Technical Data
Parameters |
Unit |
IDEAL |
Approximate weight without table |
Kg |
2900 |
Bridge transversal stroke(Y axis travel) |
mm |
1900 |
Max. revolutions of the spindle unit |
r/min |
1400 |
Machine width |
mm |
2680 |
Max. workable thickness |
mm |
90/200 |
Head motor power |
kw |
7.5/11 |
Machine height |
mm |
2900 |
Machine length |
mm |
5120 |
Head raising/lowering stroke(Z axis travel) |
mm |
270 |
Horizontal stroke(X axis travel) |
mm |
3500 |
Disc diameter |
mm |
400/625 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
0/8 |
