Crawler Hydraulic Rock Marble Quarry Drilling Machine
FOB Price:
Type:
Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
Usage:
Marble, Limestone, Onyx, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Feb 19,2007
Main Product:
Machine, Quarry, Quarrymachine, Marble, Marblequarrymachine, Export|
Machinery Function Features

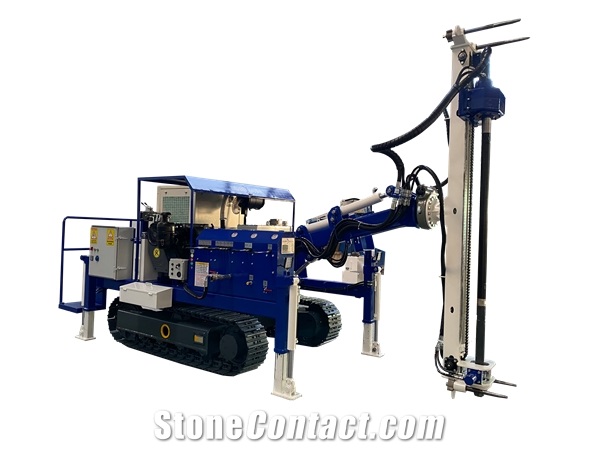

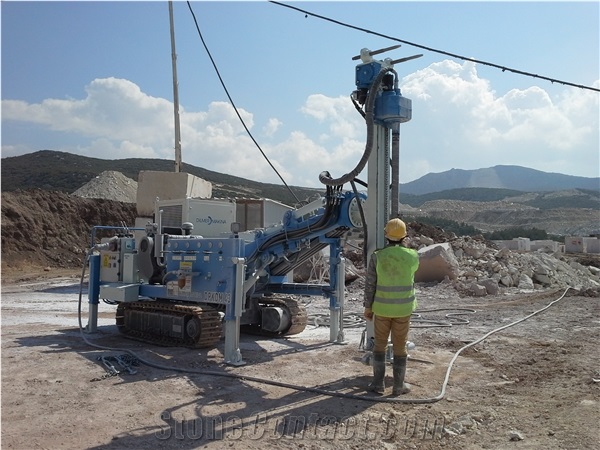

Crawler Hydraulic Rock Marble Quarry Drilling Machine
Category : Drilling Machines
Stock : In Stock
Electric motor power 22 kW 1500 rpm
Diesel engine power 43 hp
Compressor engine power 37 kw 45 kw (engine options)
Progress Hydromotor (pressure and speed adjustable)
Drilling device Geared hydromotor
drilling capacity
4-6 min/1.5 m (according to marble hardness)
7-10 minutes/2 mt (according to marble hardness)
Control unit Hydraulic
Compressor air pressure 10 bar
Air consumption 2.1 m³ and 3.7 m³ options
TIJ size and quantity 156 cm x 20 pieces
Drive system Hydraulic crawler
Width-height 2050x6000x1900mm
Weight 5800 kg
Technical Data
Parameters |
Unit |
Crawler Hydraulic Drill Machine |
TIJ size and quantity |
cm |
156 cm x 20 pieces |
Width |
mm |
2050 |
Electric motor speed |
rpm |
1500 |
Rotation motor power |
kw |
22 |
Total weight |
Kg |
5800 |
Air consumption |
m³ |
2.1 m³ and 3.7 m³ options |
Height |
mm |
1900 |
Compressor air pressure |
bar |
10 |
Lengt |
mm |
6000 |
Drilling capacity/ speed |
min/mt |
4-6 min/1.5 m (according to marble hardness) 7-10 min/2 mt (according to marble hardness) |
Hydraulic power unit motor power |
hp |
43 |
Compressor engine power |
kw |
37 to 45 (engine options) |
