Anchor Machine For Marble And Granite Stone Drilling Tool

FOB Price:$900-1000

Type: Stone Hand Held MachinesStone Hand Drill Machines
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 3-10 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Payment : Payment

Supplier

Xiamen Vigor Technology Co., Ltd.

Xiamen Vigor Technology Co., Ltd.
Vigor

ChinaChina idicon

Eatablished :May 01,2010

Main Product:

Undercut Anchors, Aluminium Brackets, Stainless Steel Brackets, Stone Fixing Systems, Drill Bits, Drill Machines|

Contact supplier

Start Order

You may also like
Mini Electric Die Grinder Drill Grinding Machine 80301
Mini Electric Die Grinder Drill Grinding Machine 80301
Pneumatic Anchor Hole Machine For Undercut Bolt In Stone Cladding System APAM
Pneumatic Anchor Hole Machine For Undercut Bolt In Stone Cladding System APAM
GPD-231 Portable Wet Air Drilling Machine
GPD-231 Portable Wet Air Drilling Machine
Stationary Slot Milling/Drilling Rig
Stationary Slot Milling/Drilling Rig
Facade Anchor Drilling For Undercut Bolt
Facade Anchor Drilling For Undercut Bolt
  • Overview
  • Components
  • Trade Terms
Machinery Function Features

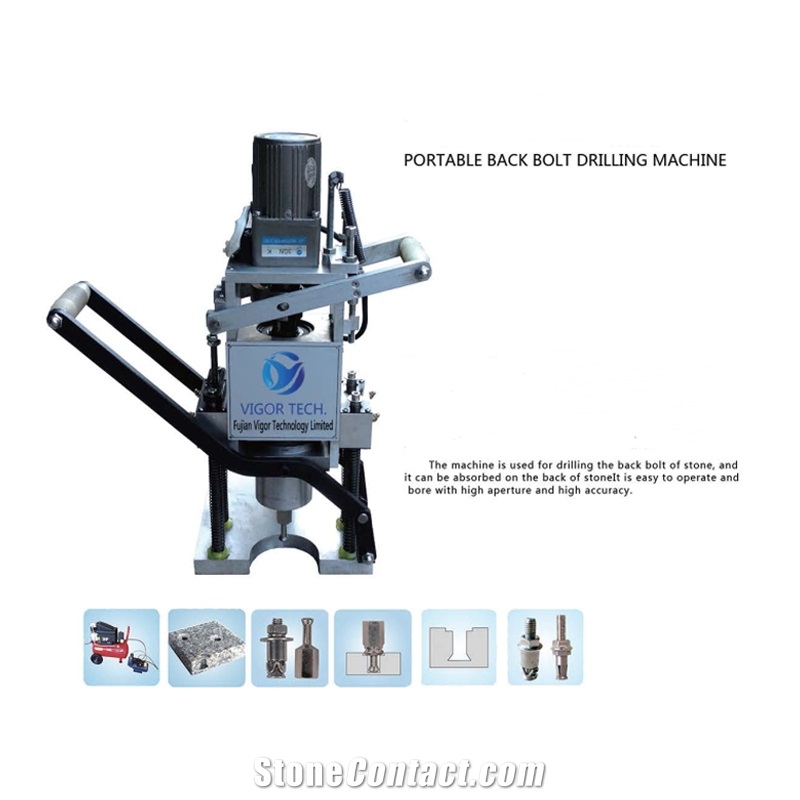

Stone Hand Drill Machines, Anchor Machine for Marble and Granite Stone Drilling Tool Application: Used to drill holes for undercut anchors in ceramic or stone panels of granite, marble,travertine, limestone, sand stone, concrete panels, cement fiber board, etc. For wall cladding projects. Specification: 350mm(Length)x380mm(Width)x500mm(Height). Accessory: Air Compressor, Water Pump, tools. Packing: Export Wooden Packing. Advantages: 1. High quality with long life. 2. High working efficiency. 3. Portable and light, easy to carry. 4. Easy to adjust and operate.
Technical Data
Parameters
Unit
VTDM-P01
Processing type(Dry or Wet)
Wet
Apr. weight
Kg
13
Max. drilling depth
mm
50
Drill rod length
mm
25
Min. drill rod diameter
mm
7
Rotating speed/Drilling speed
r/min
12000
Overall length
mm
380
Overall height
mm
500
Output power
w
1250
Power source
Electric Supply
Overall width
mm
350
Max. drill rod diameter
mm
13
Frequency
Hz
50
Rated voltage
V
220
Max. sound
dB
60
Processed Stone Photos

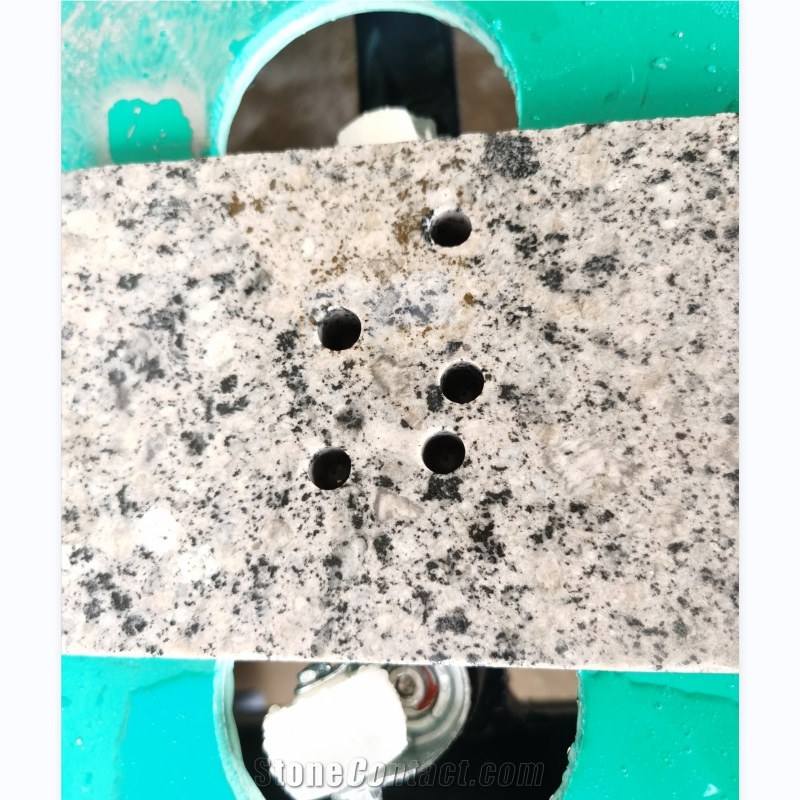

  • Can drill in different kinds of panels

    Can drill in different kinds of panels

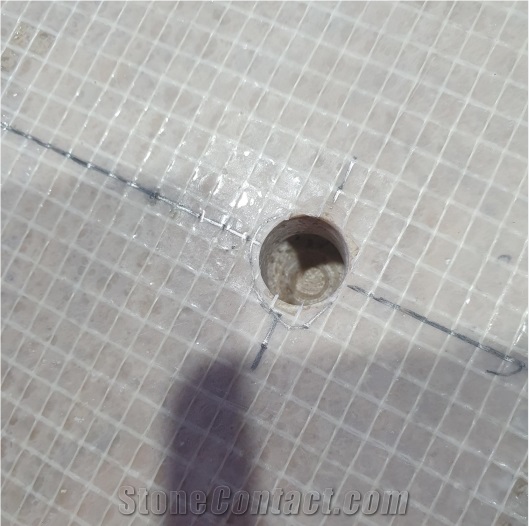

  • Drilled undercut anchor hole

    Drilled undercut anchor hole

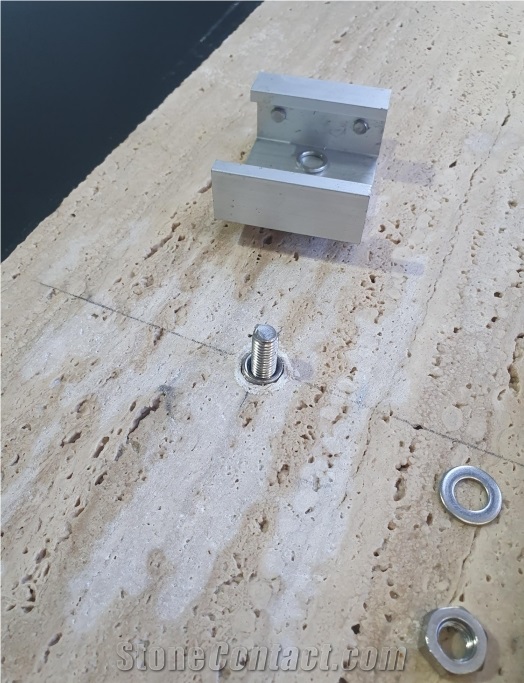

  • Used with undercut anchor and aluminium bracket

    Used with undercut anchor and aluminium bracket

Components

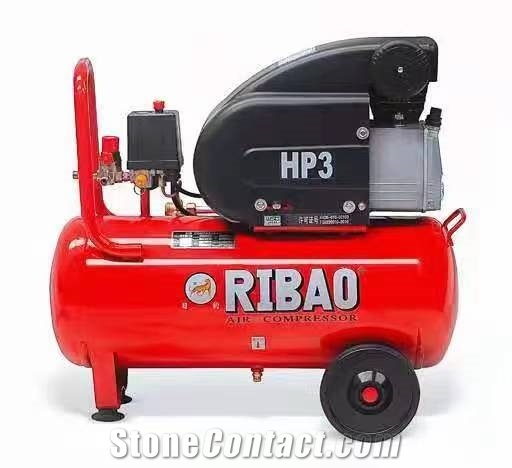

  • Air Compressor

    Air Compressor

    ¥Payment Required

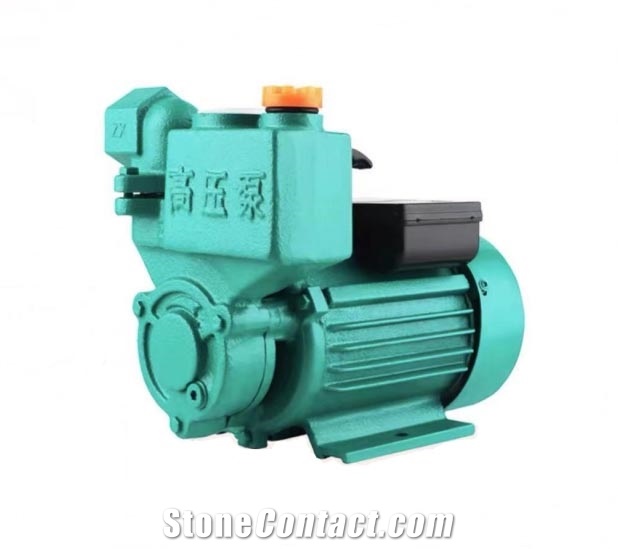

  • Water Pump

    Water Pump

    ¥Payment Required
Consumables

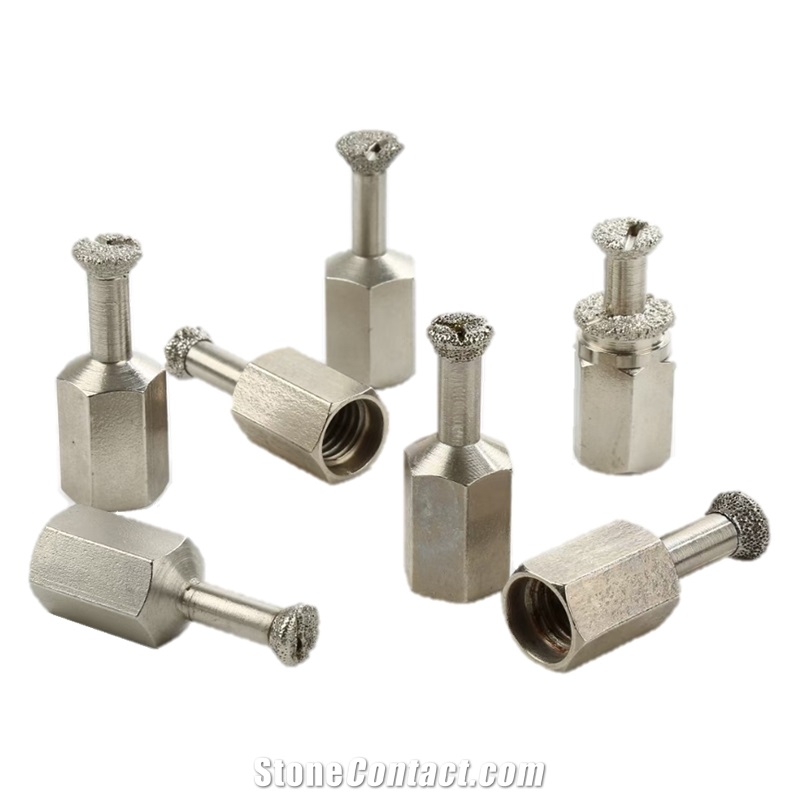

  • Diamond Drill Bit

    Diamond Drill Bit

    It will be worn out with use and needs to be replaced
