Undercut Drilling Machine For Anchor Bolt
FOB Price:$900-1000
Type:
Stone Hand Held MachinesStone Hand Drill Machines
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3-7 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Payment :
Supplier
Eatablished :May 01,2010
Main Product:
Undercut Anchors, Aluminium Brackets, Stainless Steel Brackets, Stone Fixing Systems, Drill Bits, Drill Machines|
Machinery Function Features

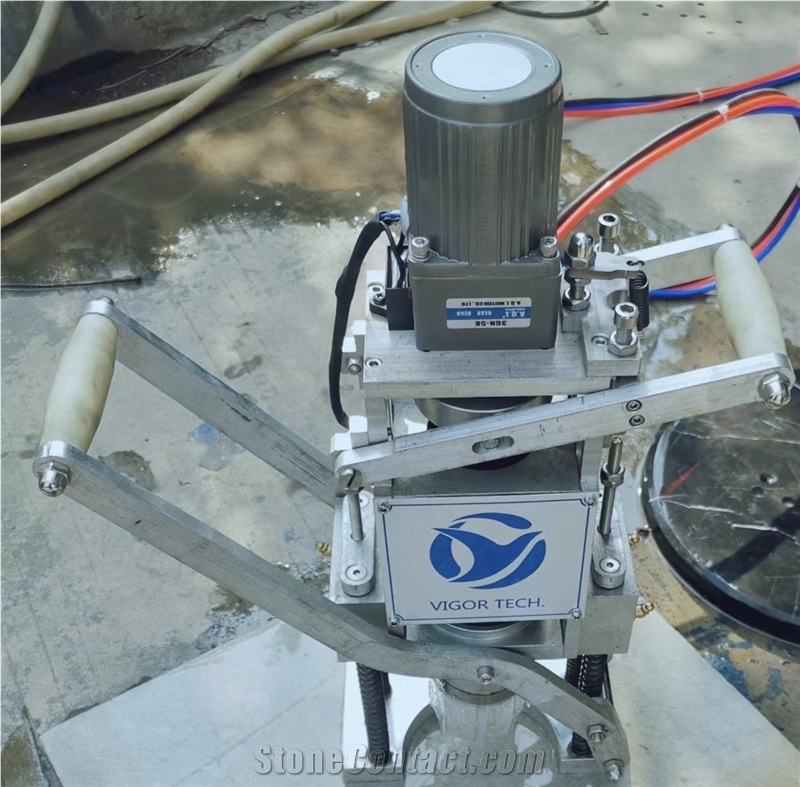

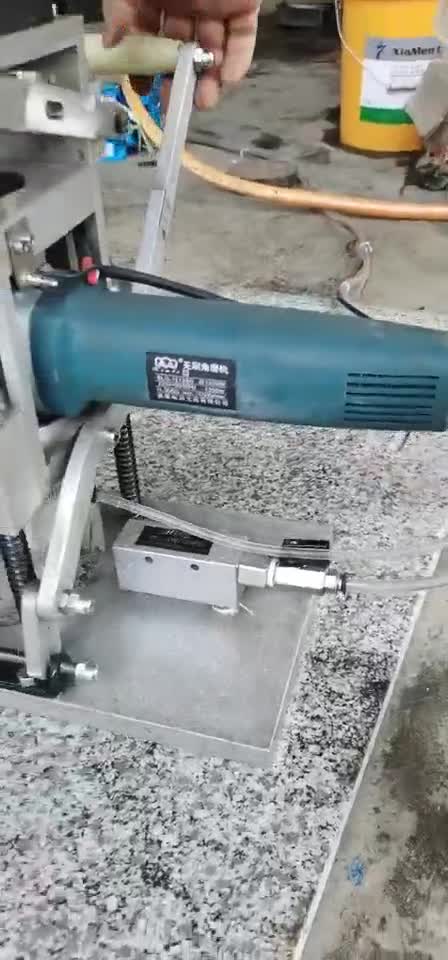

Undercut Drilling Machine For Anchor bolt
Application:Stone hand drill machines are used with diamond drill bits to drill holes for undercut anchors in ceramic or stone panels of granite, marble,travertine, limestone, sand stone, concrete panels, cement fiber board, etc. For exterior and interior wall cladding projects.
Specification: 350mm(Length)x380mm(Width)x500mm(Height).

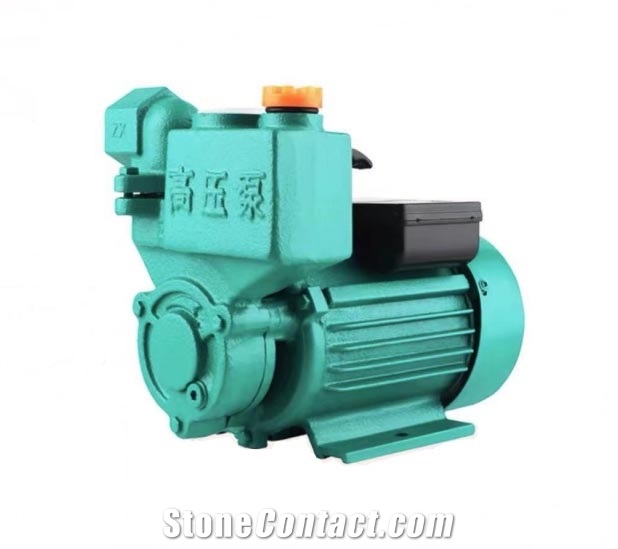

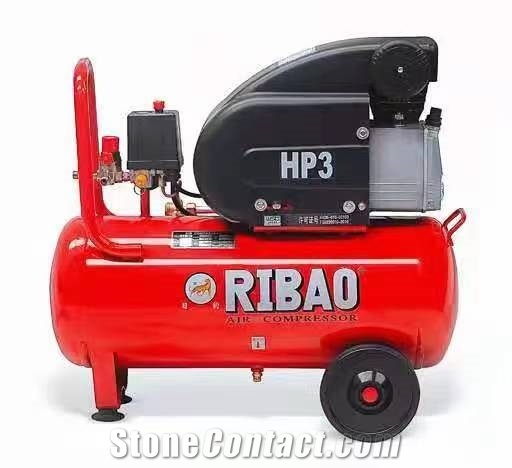

Accessory: Air Compressor, Water Pump, tools.
Advantages:
1. High quality with long life.
2. High working efficiency.
3. Portable and light, easy to carry.
4. Easy to adjust and operate.
Technical Data
Parameters |
Unit |
VTDM-P01 |
Max. sound |
dB |
60 |
Max. drilling depth |
mm |
50 |
Rotating speed/Drilling speed |
r/min |
12000 |
Min. drill rod diameter |
mm |
7 |
Apr. weight |
Kg |
13 |
Output power |
w |
1250 |
Overall height |
mm |
500 |
Frequency |
Hz |
50 |
Max. drill rod diameter |
mm |
13 |
Rated voltage |
V |
220 |
Overall width |
mm |
350 |
Overall length |
mm |
380 |
Drill rod length |
mm |
25 |
Processing type(Dry or Wet) |
Wet |
|
Power source |
Electric Supply |

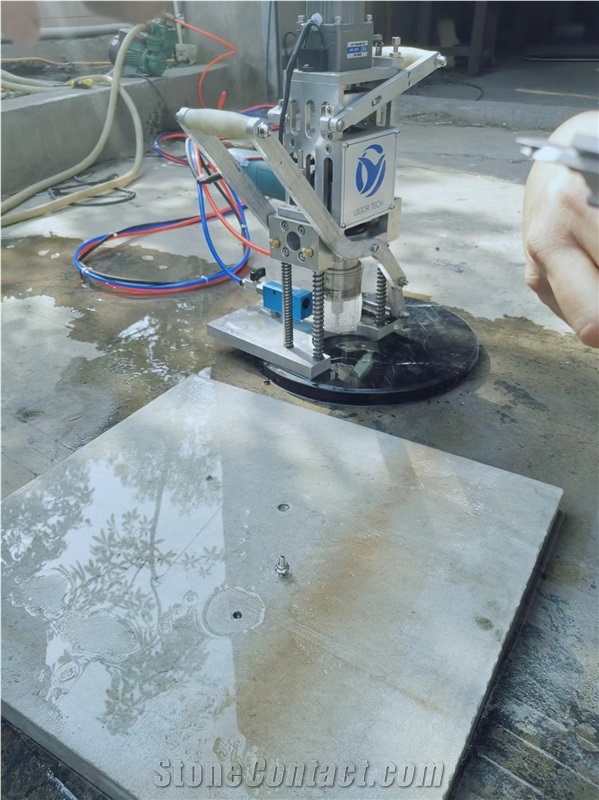

Work Example

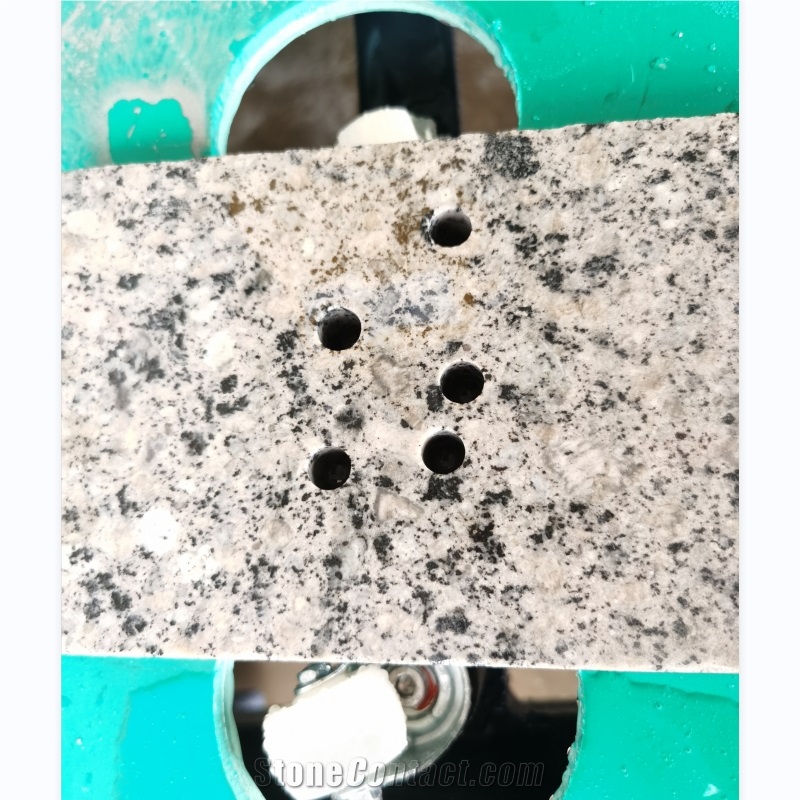

Processed Stone Photos
-

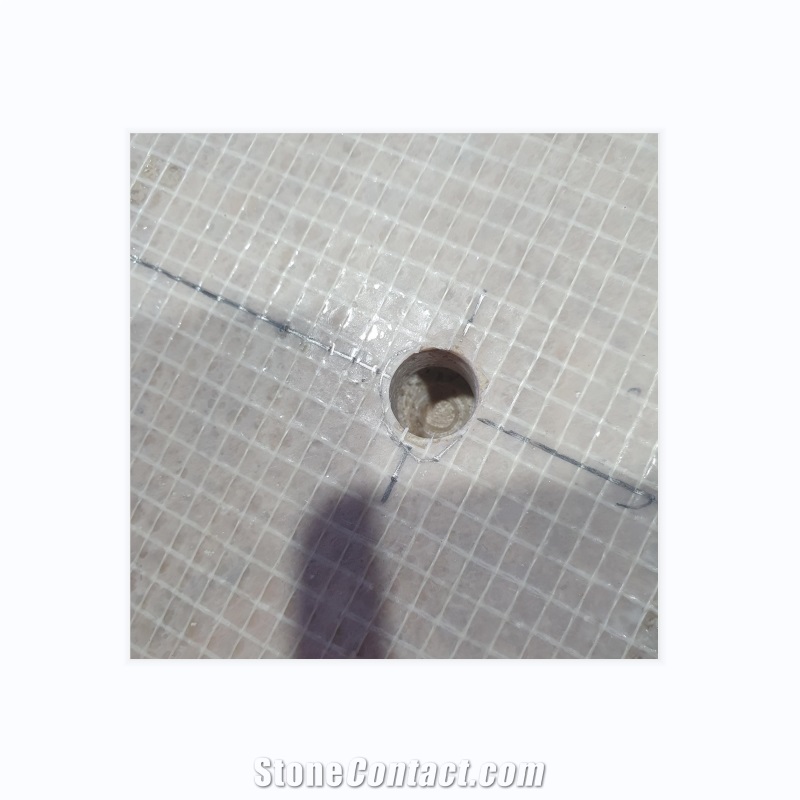

Undercut Anchor Hole
Components
-
¥Payment Required -
¥Payment Required -
¥Payment Required
Consumables
-

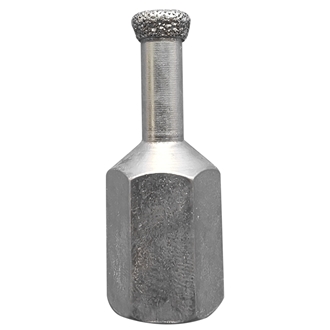

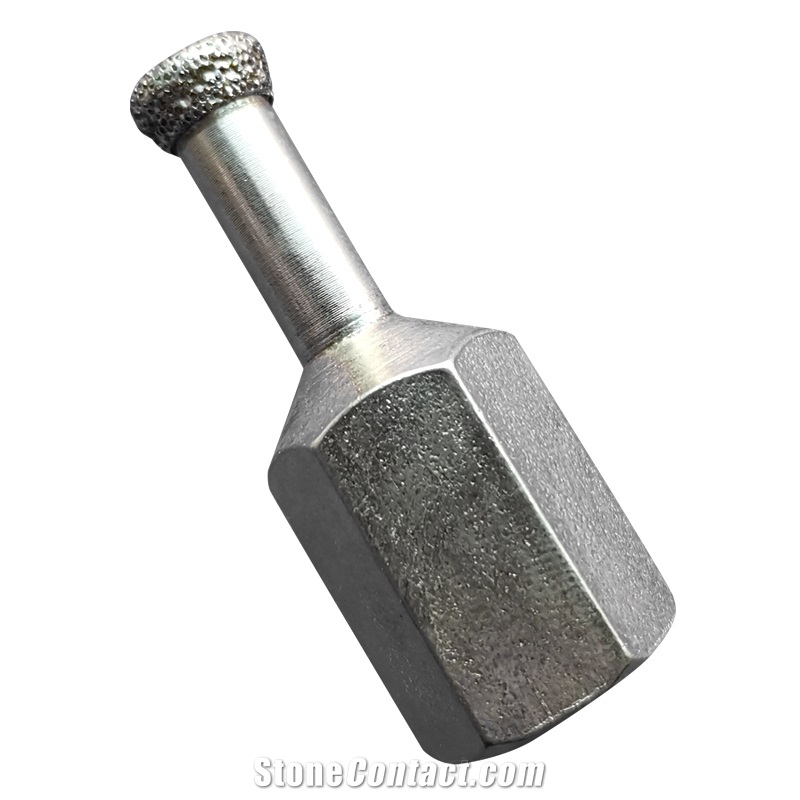

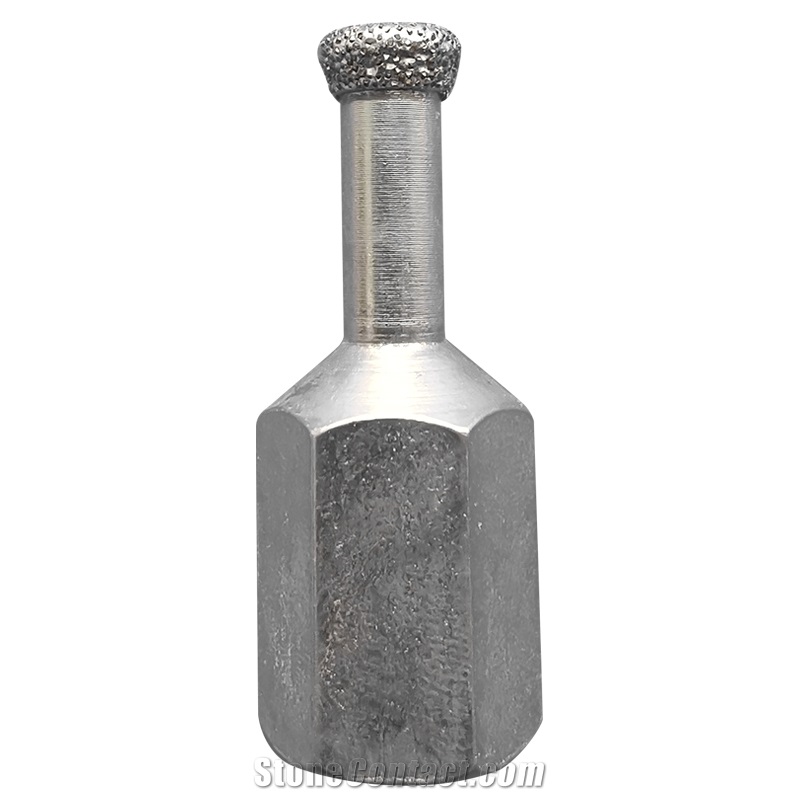

Diamond Drill Bit
Need to replace diamond drill bits
