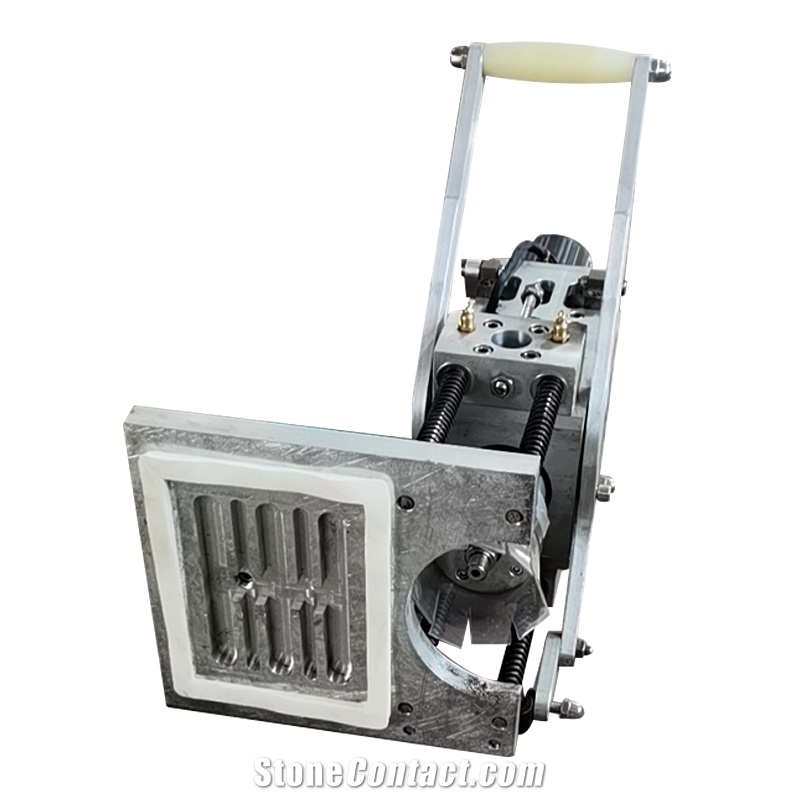

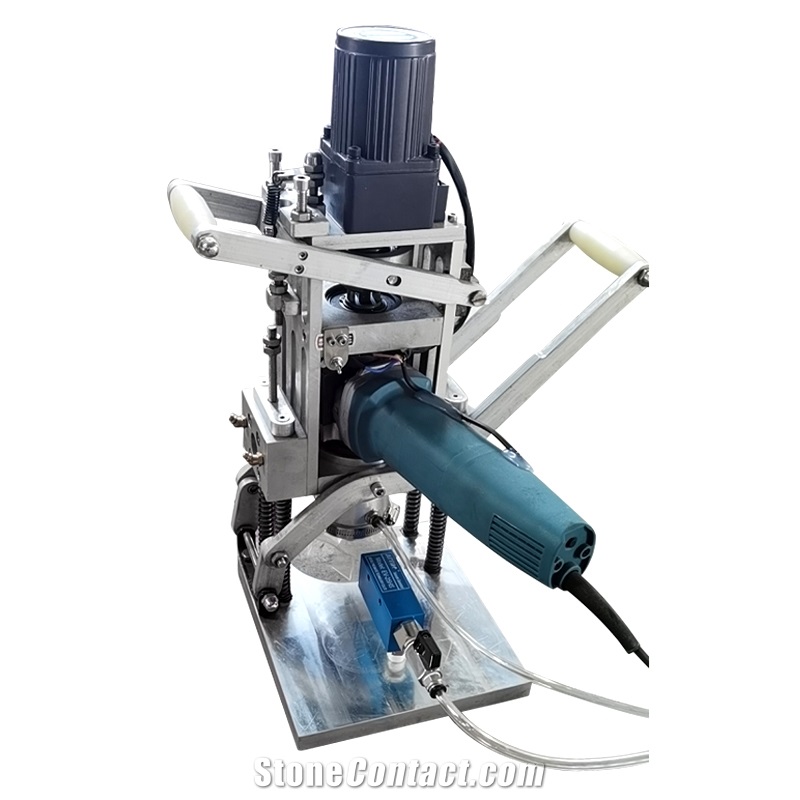

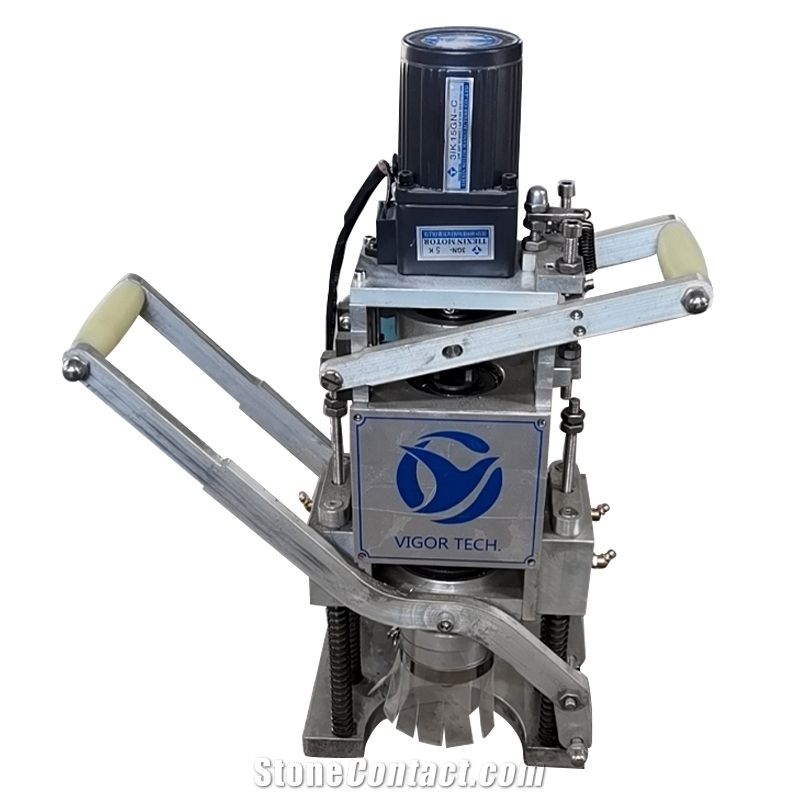

Anchor Hole Drilling Machine For Stone And Ceramic Panels

FOB Price:$900-1000

Type: Stone Hand Held MachinesStone Hand Drill Machines
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 3-7 days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Payment : Payment

Supplier

Eatablished :May 01,2010

Main Product:

Undercut Anchors, Aluminium Brackets, Stainless Steel Brackets, Stone Fixing Systems, Drill Bits, Drill Machines|

Contact supplier

Start Order

  • Overview
  • Components
  • Trade Terms
Machinery Function Features
Anchor Hole Drilling Machine for Stone and Ceramic Panels Application: Anchor Hole Drilling Machine is used with diamond drill bits, air compressor and water pump,to drill holes for undercut anchors in ceramic or stone panels, such as granite, marble,travertine, limestone, sand stone, concrete panels, cement fiber board..., etc. For exterior and interior wall cladding projects. Specification: 350mm(Length)x380mm(Width)x500mm(Height). Accessory: Air Compressor, Water Pump, Diamond Drill Bit, tools. Packing: Export Wooden Packing. Advantages: 1. High quality with long life. 2. High working efficiency. 3. Portable and light, easy to carry. 4. Easy to adjust and operate.
Technical Data
Parameters
Unit
VTDM-P01
Max. drill rod diameter
mm
13
Output power
w
1250
Max. drilling depth
mm
50
Apr. weight
Kg
13
Overall length
mm
380
Overall height
mm
500
Rated voltage
V
220
Drill rod length
mm
25
Overall width
mm
350
Rotating speed/Drilling speed
r/min
12000
Frequency
Hz
50
Power source
Electric Supply
Processing type(Dry or Wet)
Wet
Max. sound
dB
60
Min. drill rod diameter
mm
6
Processed Stone Photos

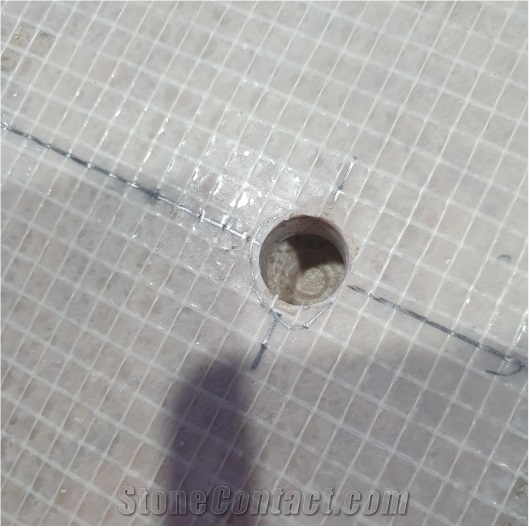

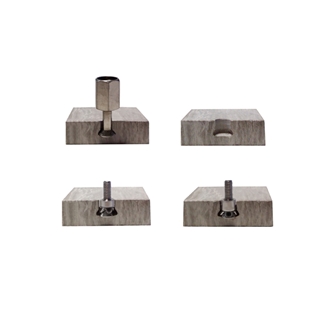

  • Undercut Anchor Hole

    Undercut Anchor Hole

  • Undercut Anchor Hole

    Undercut Anchor Hole

Components

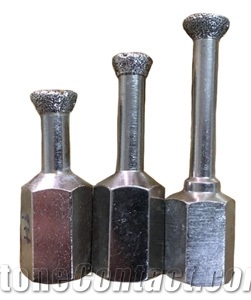

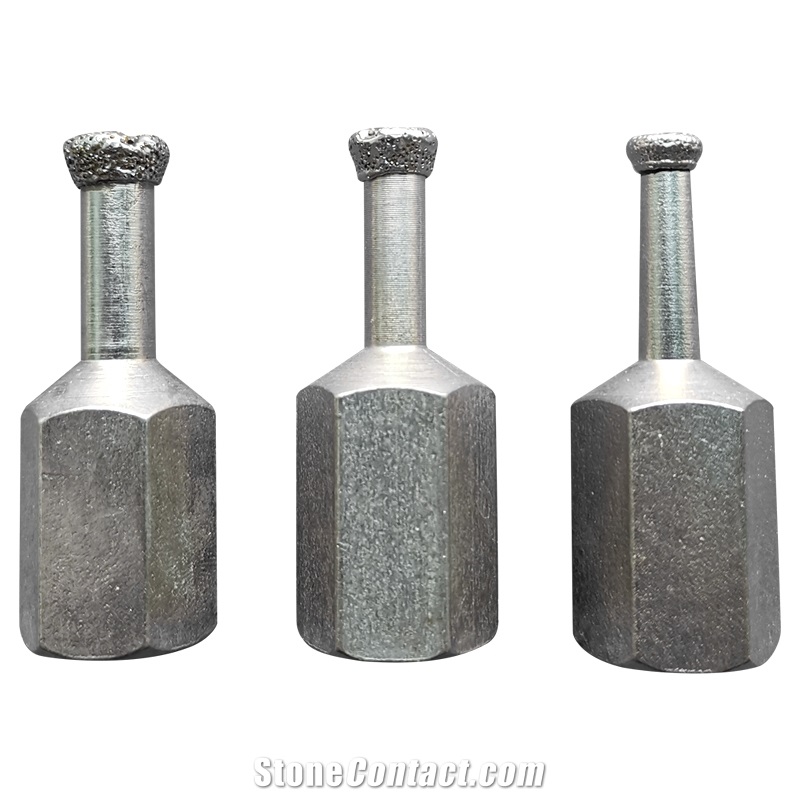

  • Diamond Drill Bit

    Diamond Drill Bit

    ¥Payment Required
  • Water Pump

    Water Pump

    ¥Payment Required

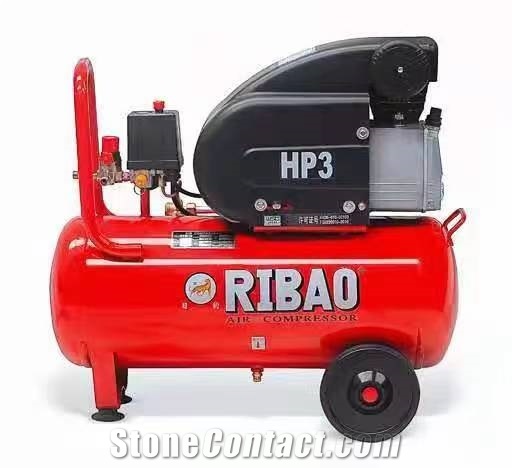

  • Air Compressor

    Air Compressor

    ¥Payment Required
Consumables
  • Diamond Drill Bit

    Diamond Drill Bit
