Hydraulic Cubes And Stone Slicing Splitting Machine
FOB Price:$7800-8000
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Sandstone, Travertine
After-Sale
Lead Time:
25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features

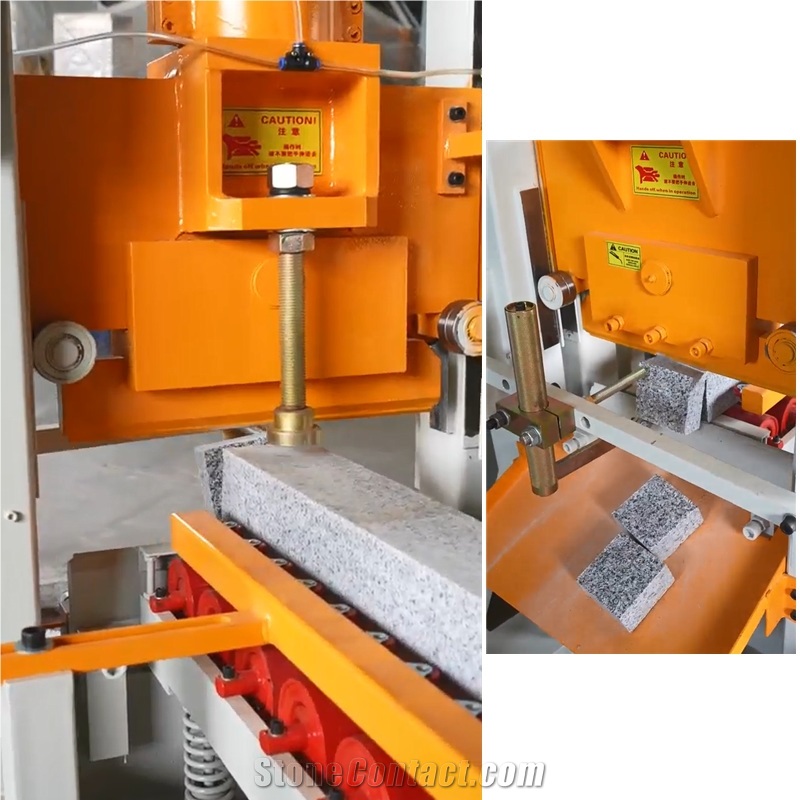

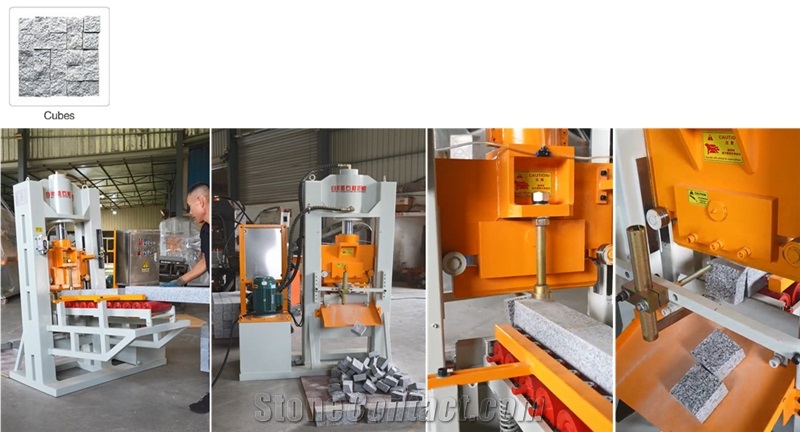

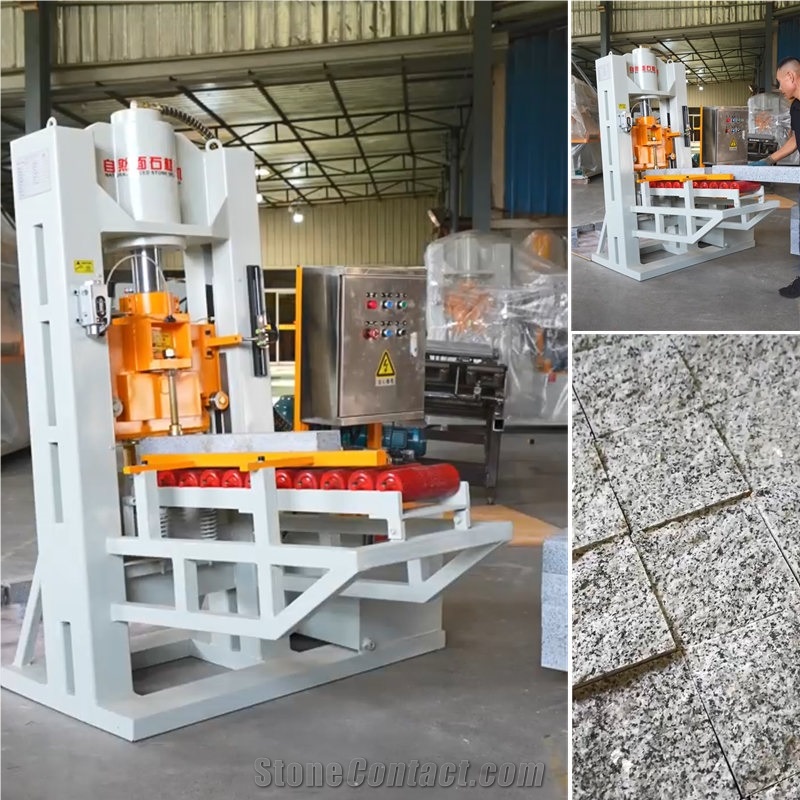

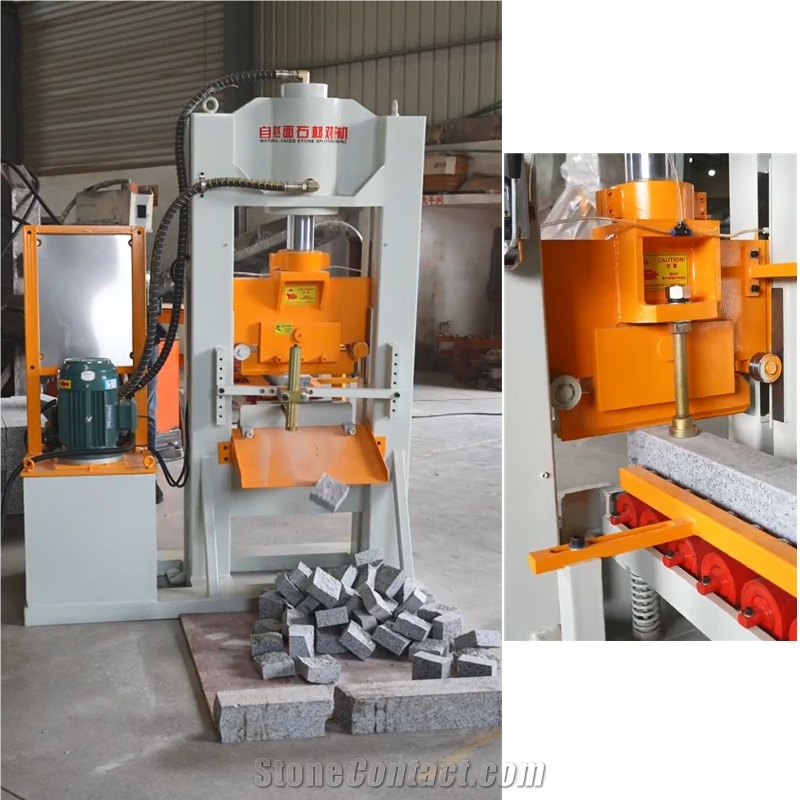

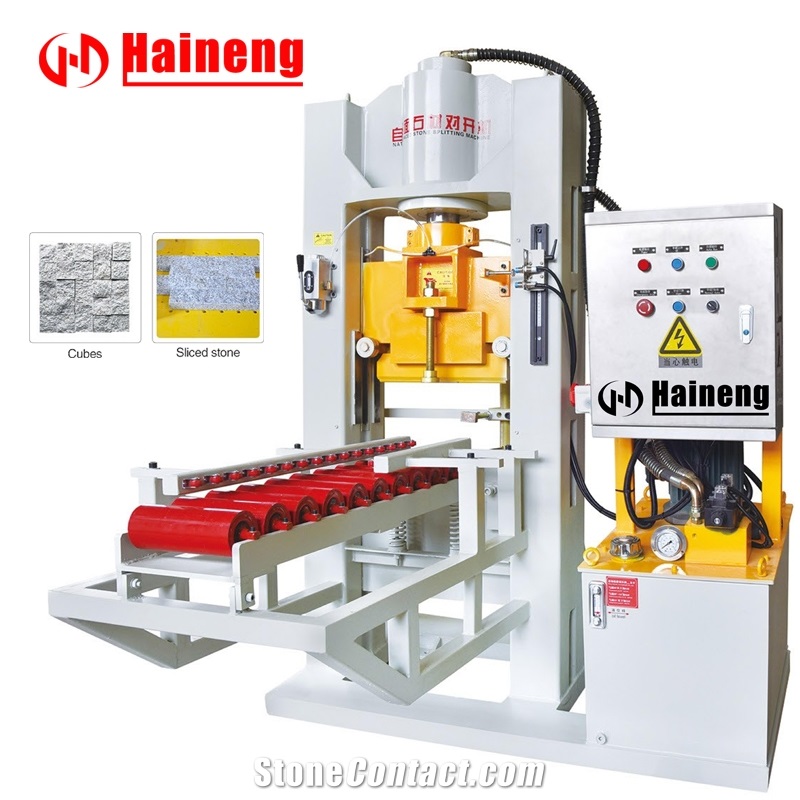

Cube stone splitter machine has an automatic conveyor mechanism, suitable for the process of processing long stone strips that have been sawn and need to be fed continuously into square blocks of stone.Natural stone splitting machine designed with hydraulic drive, it can split square paving stones into cubes or blocks with antique appearance. Stone splitting machine is an efficient machine for producing cubic paving stone and stone veneer panels.

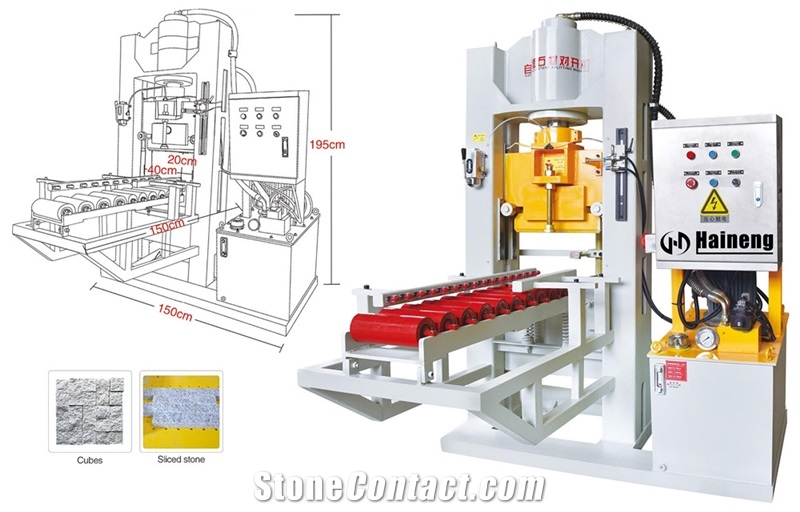

Technical Data
Parameters |
Unit |

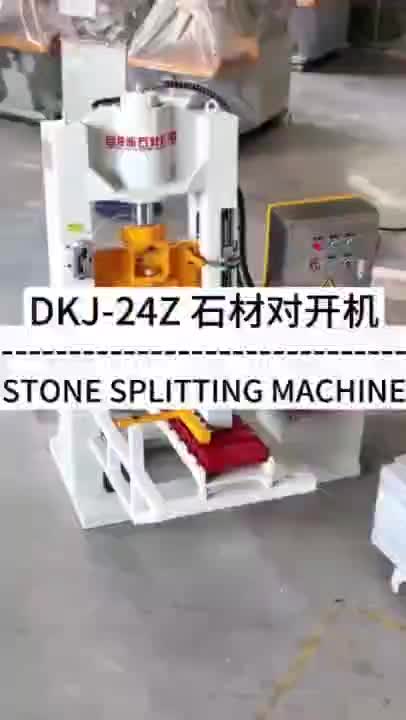

DKJ-24Z |
Machine height (H) |
cm |
195 |
Max. working height |
cm |
20 |
Flow rate |
L/min |
14 |
Frequency |
Hz |
50 |
Main Motor Power |
kw |
4 |
Voltage |
V |
380 |
Blade feeding speed |
cm/s |
3 |
Oil tank capacity |
L |
78 |
Machine length (L) |
cm |
150 |
Approximate weight |
T |
0.98 |
Hydraulic oil grade |
46 |
|
Max. Pressure |
tons |
40 |
Machine width (W) |
cm |
150 |
Output per Hour |
m2/h |
50 |
Max. working width |
cm |
40 |

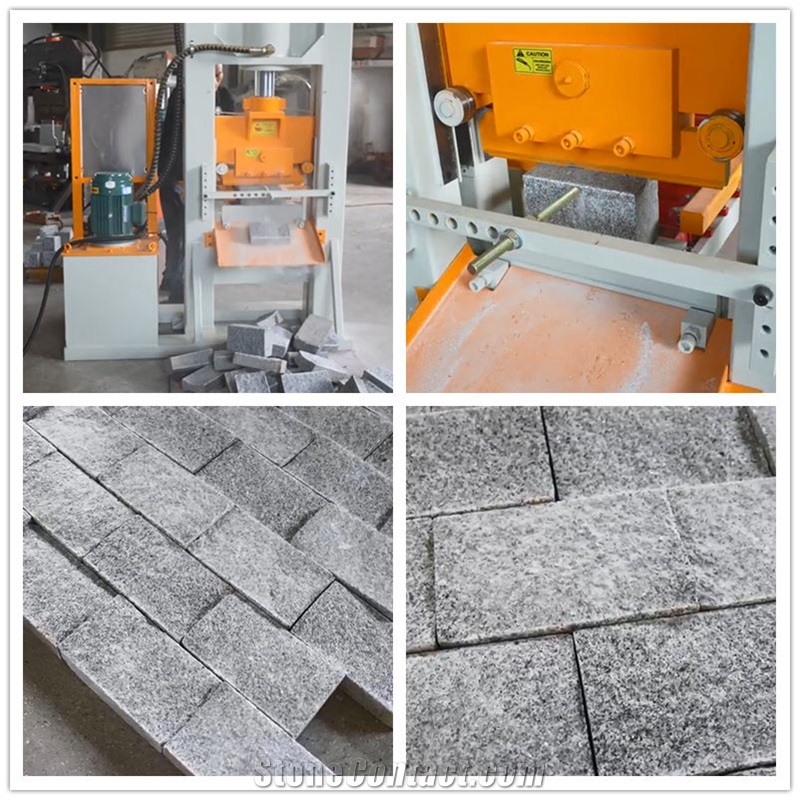

Processed Stone Photos
