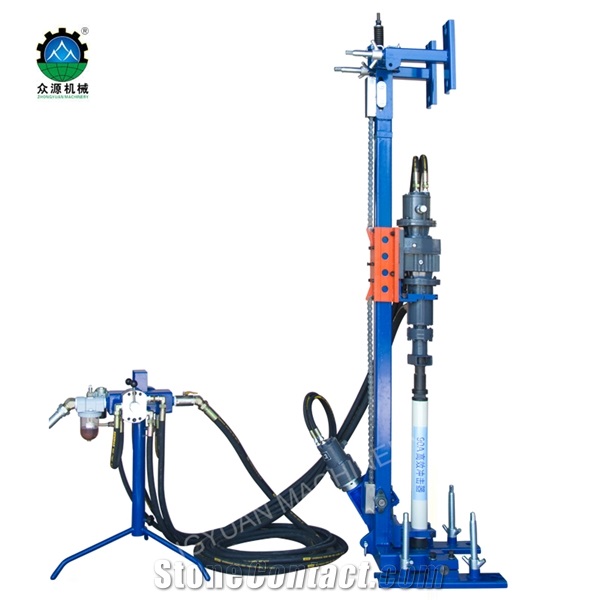

Pneumatic Down The Hole DTH Drilling Machine
FOB Price:$4999-5999
Type:
Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
Usage:
Granite, Marble, Basalt, Sandstone, Travertine
After-Sale
Lead Time:
7 days
Warranty:6 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :May 30,2011
Main Product:
Multi Wire Saw Machine, Diamond Wire Saw, Wire Saw Machine, Dth Drilling Machine, Stone Cutting Machine, Gang Saw Machine|
Machinery Function Features
1.The DTH drilling machine is used for drilling large diameter horizontal,vertical and slant holes during stone quarrying.
2.It is necessary assistive equipment to wire saw machine during stone quarrying.
3.The machine is controlled by compressed air motors.
4.The pneumatic units are high quality standard.
5.The machine has the following features: low compressed-air consumption,high drilling efficiency,light in weight,easy operating and installing,etc.
6.The particular screwing and discharging mechanism of the tube devices reduces the intensity of labor.
7.The machine has particular design for guiding drilling.
Technical Data
Parameters |
Unit |
ZY-100DTH-P |
Usable extension rods length |
mm |
1000 |
Total weight (without hammer) approx |
Kg |
600 |
Start of drilling process rod |
mm |
1000 |
Holes diametre Φ |
mm |
90 |
Total compressed air consumption |
m3/min |
9-10 |

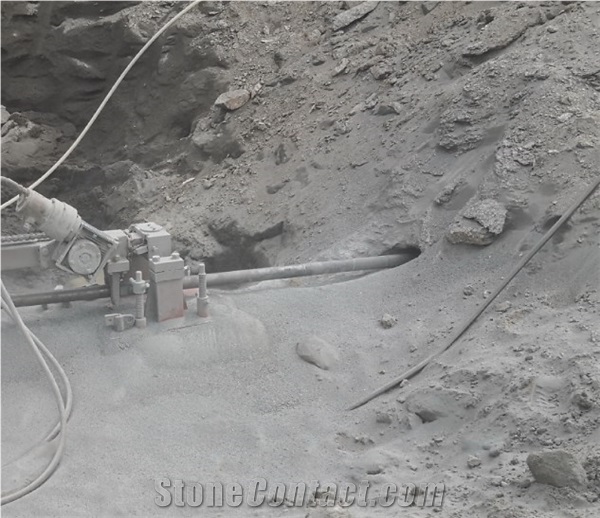

Processed Stone Photos

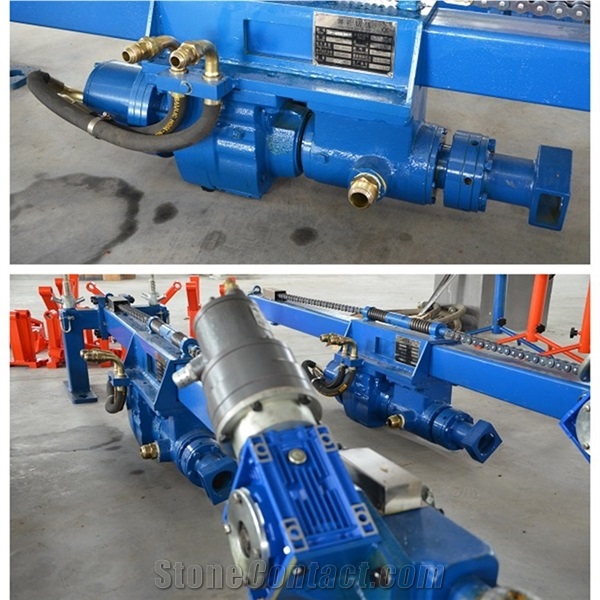

Components

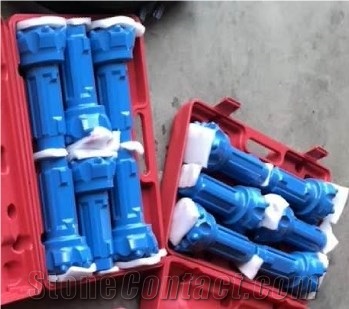

Consumables
Video

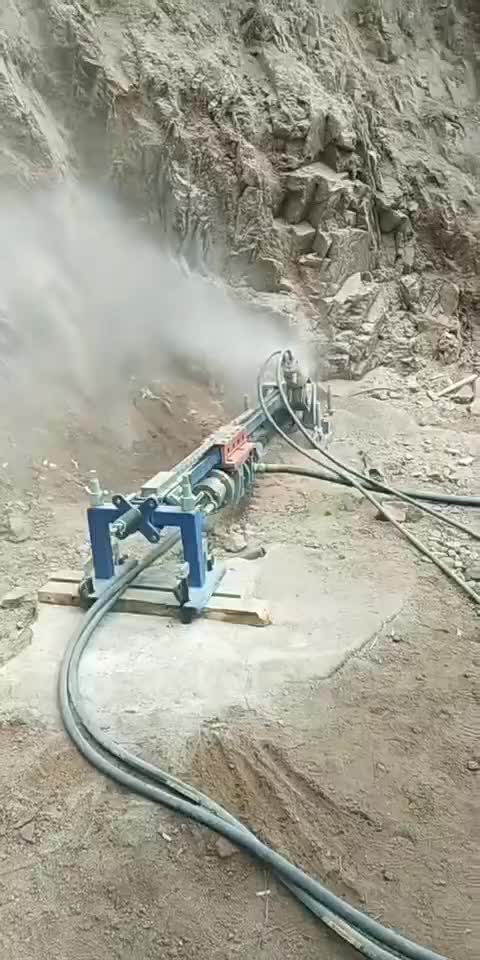

Operation Video
