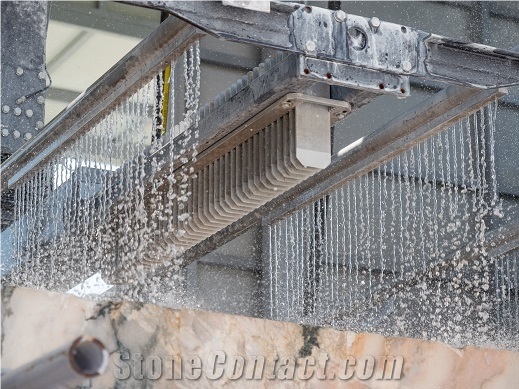

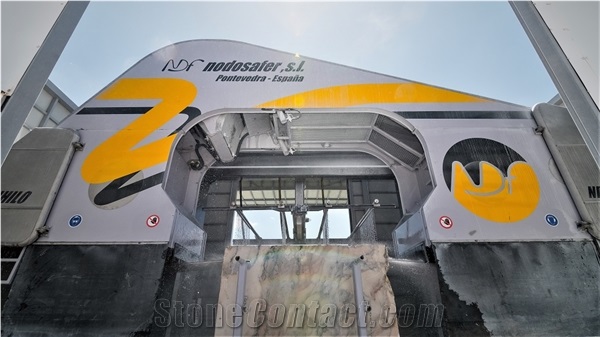

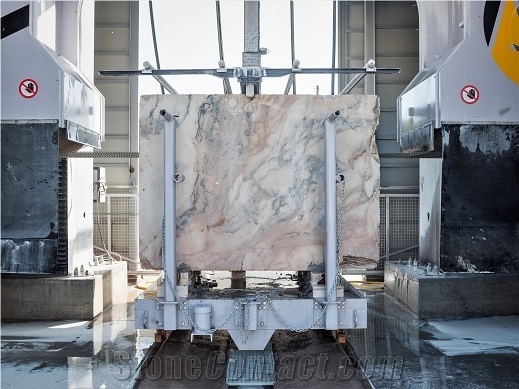

Multi Wire Saw Marble Block Cutting Machine N6870/60-62
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Marble, Limestone, Onyx, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 01,1990
Main Product:
Bridge Cutter, Carving Robots, Polishing Machines, Wire Saw Machines|
Machinery Function Features
Characteristic Specs
NO MAXIMUM OF THREADS 60-62
MAXIMUM MACHINE HEIGHT 7.65 meters
MACHINE LENGTH 11.40 meters
MAXIMUM BLOCK LENGTH 3500mm
MAXIMUM BLOCK HEIGHT 2200mm
THREAD LENGTH 23.50m
MACHINE VERTICAL TRAVEL 2400mm
FLYWHEEL DIAMETER 1800mm
WIDTH OF CUT 1600mm
MINIMUM CUTTING THICKNESS 21mm
DIAMOND WIRE SPEED 0-40m/sec
DIAMOND WIRE DIAMETER 6.3-5.3mm
MAIN MOTOR POWER 355kw
Technical Data
Parameters |
Unit |
N6870/60-62 |
N6870/80 |
Machine Vertical Travel |
mm |
2400 |
2400 |
Max. Number of wire |
nr |
60-62 |
80 |
Diamond bead diameter |
mm |
5.3 to 6.3 |
5.3 |
Max. Cutting height |
mm |
2200 |
2200 |
Diamond wires speed |
m/s |
0-40 |
0-40 |
Main motor power |
kw |
355 |
355 |
Max. Cutting width |
mm |
1600 |
1960 |
Max. Cutting length |
mm |
3500 |
3500 |
Machine length (L) |
mm |
11400 |
11400 |
Flywheel Diameter |
mm |
1800 |
1800/2300 |
Minimum Cutting Thickness |
mm |
21 |
21 |
Diamond wire length |
m |
23.50 |
23.50/25.40 |
Machine height (H) |
mm |
7650 |
7630 |
