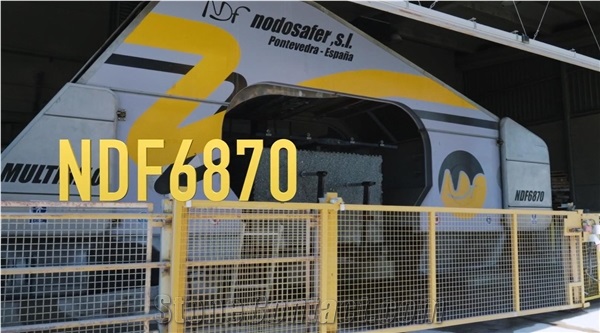

Granite Block Cutting Multi Wire Saw Machine Thickness N6870/51
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Granite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 01,1990
Main Product:
Bridge Cutter, Carving Robots, Polishing Machines, Wire Saw Machines|
Machinery Function Features
Characteristic Specification
NO MAXIMUM OF THREADS 51
MAXIMUM MACHINE HEIGHT (mt) 7.11
MACHINE LENGTH (mt) 10.18
MAXIMUM BLOCK LENGTH (mm) 3500
MAXIMUM BLOCK HEIGHT (mm) 2200
THREAD LENGTH (mt) 22.45
MACHINE VERTICAL TRAVEL (mm) 2400
MINIMUM CUTTING THICKNESS (mm) 31
DIAMOND WIRE SPEED (m/sec) 0-34
DIAMOND WIRE DIAMETER (mm) 7.3
MAIN ENGINE POWER (kw) 180
Technical Data
Parameters |
Unit |
N6870/51 |
Machine Vertical Travel |
mm |
2400 |
Max. Cutting height |
mm |
2200 |
Diamond wires speed |
m/s |
0-34 |
Minimum Cuttable Thickness |
mm |
31 |
Diamond wire length |
m |
22.45 |
Machine height (H) |
mm |
7110 |
Main motor power |
kw |
180 |
Diamond bead diameter |
mm |
7.3 |
Max. Number of wire |
nr |
51 |
Machine length (L) |
mm |
10180 |
Max. Cutting length |
mm |
3500 |
