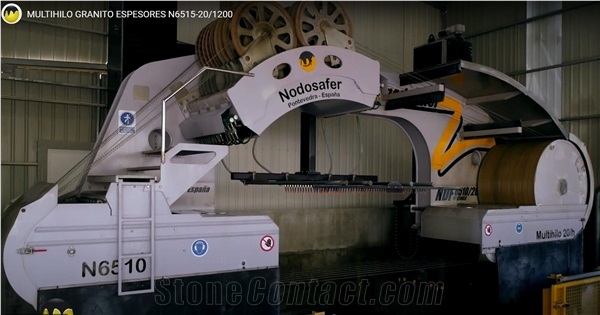

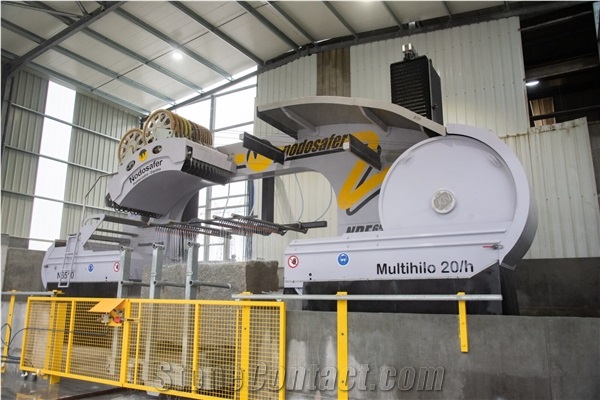

Granite Multi Wire Saw Thickness N6515/20-1200 (20 Wire With Cutting Width Of 1200 Mm)
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Granite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 01,1990
Main Product:
Bridge Cutter, Carving Robots, Polishing Machines, Wire Saw Machines|
You may also like
Machinery Function Features
Characteristic Specs
NO MAXIMUM OF THREADS twenty
THREAD DIAMETER 7.3mm
MACHINE HEIGHT (mt) 6.3
MACHINE LENGTH (mt) 10.20
MAXIMUM BLOCK LENGTH (mm) 3500
MAXIMUM BLOCK HEIGHT (mm) 2200
THREAD LENGTH (mt) 22.40
MACHINE VERTICAL TRAVEL (mm) 2400
FLYWHEEL DIAMETER (mm) 1800
MINIMUM CUTTABLE THICKNESS (mm) twenty

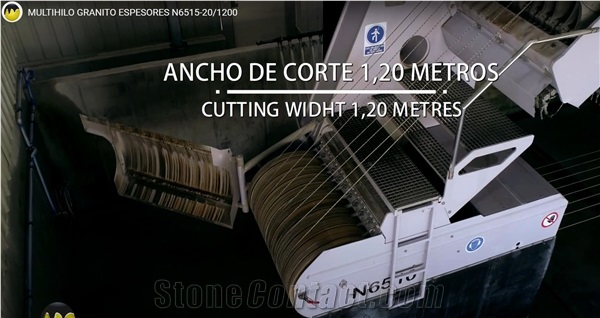

MAXIMUM CUTTING WIDTH (mm) 1200
DIAMOND WIRE SPEED 0-35m/sec
MAIN ENGINE POWER (kw) 90
Technical Data
Parameters |
Unit |
N6515/20-1200 |
Flywheel Diameter |
mm |
1800 |
Max. Cutting height |
mm |
2200 |
Minimum Cuttable Thickness |
mm |
20 |
Main motor power |
kw |
90 |
Diamond wire length |
m |
22.40 |
Max. wire number |
nr |
20 |
Machine length (L) |
mm |
10200 |
Diamond wires speed |
m/s |
0-35 |
Max. Cutting width |
mm |
1200 |
Machine height (H) |
mm |
6300 |
Max. Cutting length |
mm |
3500 |
Machine Vertical Travel |
mm |
2400 |
Diamond bead diameter |
mm |
7.3 |
