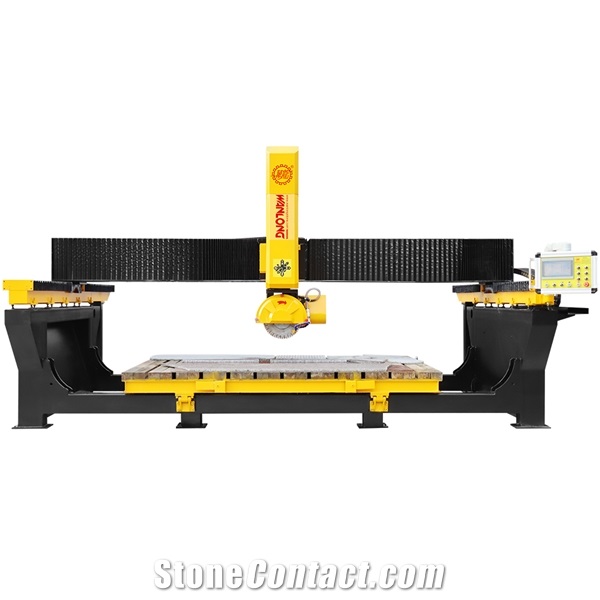

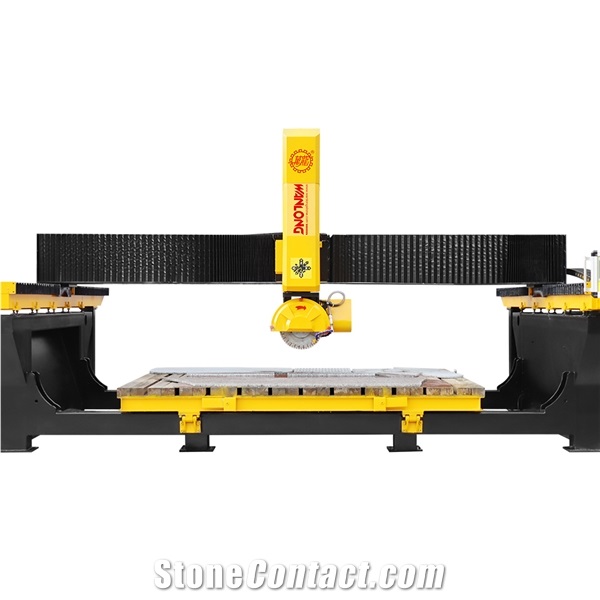

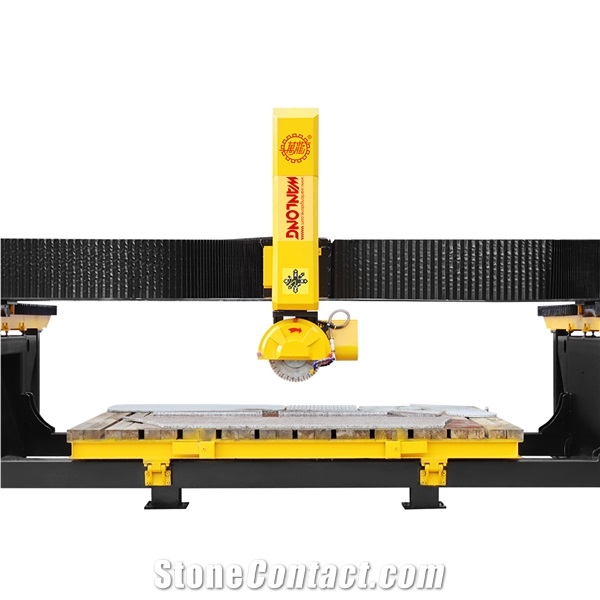

WLCNC-500 Wanlong 4 Axis Natural Stone Bridge Cutting Machine
FOB Price:$30000-40000
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Slate, Artificial Stone, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30-60 DAYS
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 08,1993
ISO9001-2000,SGS,TUV
Main Product:
Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|
Machinery Function Features
The machine is under computerized control, under the touch operating interface, and is equipped with wireless remote control, enabling the man-machine dialogue to be flexible and free. The main control components all use intermational famous brand components, cross frame oil diffuse type double V track, transverse knife adopts stepless frequency conversion speed regulation, longitudinal spliter adopts linear guide rail and high precision magnetic ruler count, to ensure the machine work stable and stable precision. The integration of fuselage and workbench base not only facilitates the installation and transportation of users, but also ensures the stability of the machine.
Technical Data
Parameters |
Unit |
WLCNC-500 |
Machine width |
mm |
3300 |
Max.length of the cut slab |
mm |
3200 |
Crossbeam motor power |
kw |
18.5 |
Machine length |
mm |
3100 |
Max.width of the cut slab |
mm |
2000 |
Machine height |
mm |
5700 |
Work Example
Technicial Parameter
| Model | WLCNC-500 | |
| diameter of blade | mm | 700 |
| Dimension of working platform | mm | 3200*200 |
| Power of main motor | kw | 18.5 |
| Power of tool slide reciprocating motor | kw | 1.5 |
| Power of crossbeam shifting motor | kw | 1.5 |
| Power of hydraulic station motor | kw | 2.2 |
| Power of elevator motor | kw | 2 |
| Overall dimension(LxWxH) | cm | 5700*3300*3100 |
| Gross weight | kg | 5400 |
| Water consumption | m³/h | 4 |

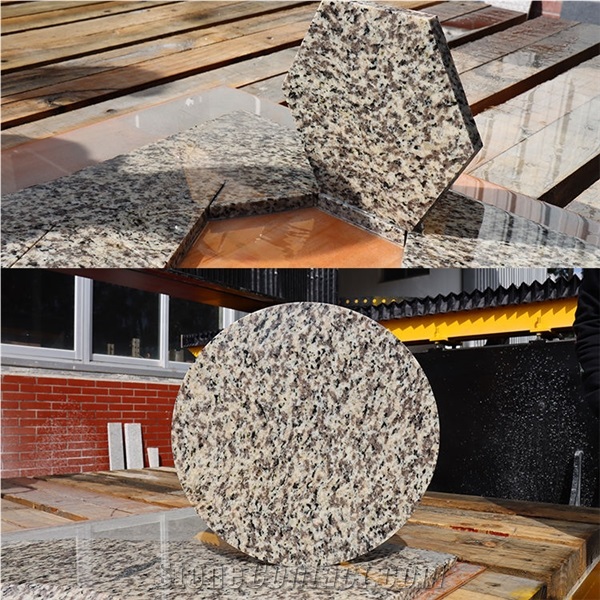

Processed Stone Photos
Components
-
PLC
Consumables
-
PLC

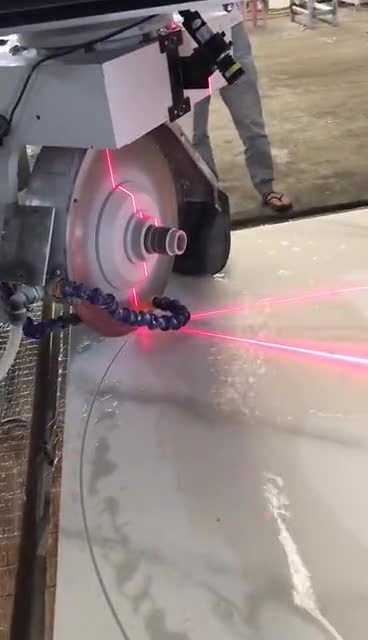

Video
Install Video
Operation Video
