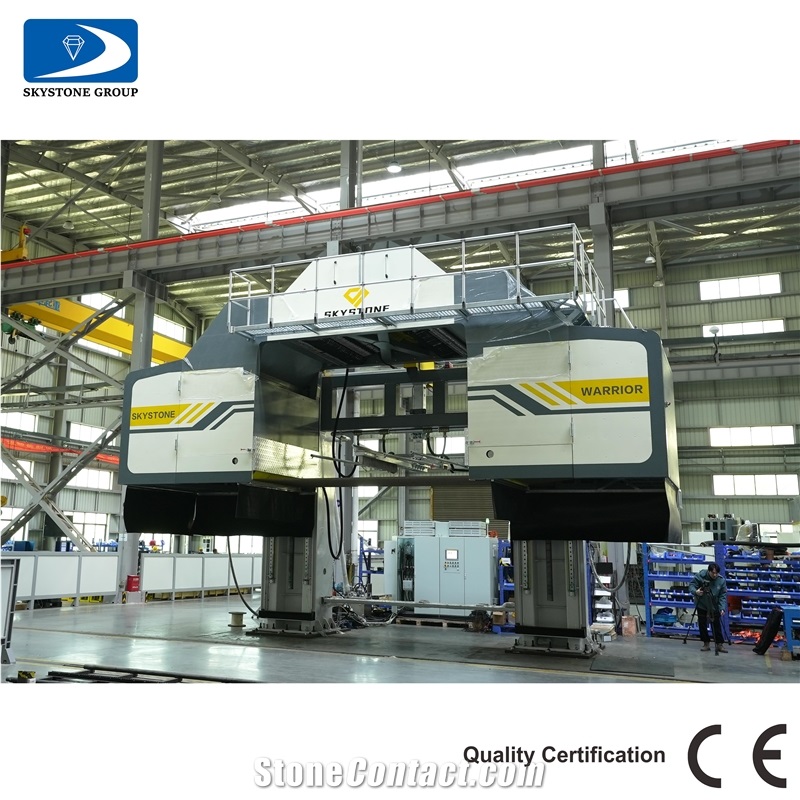

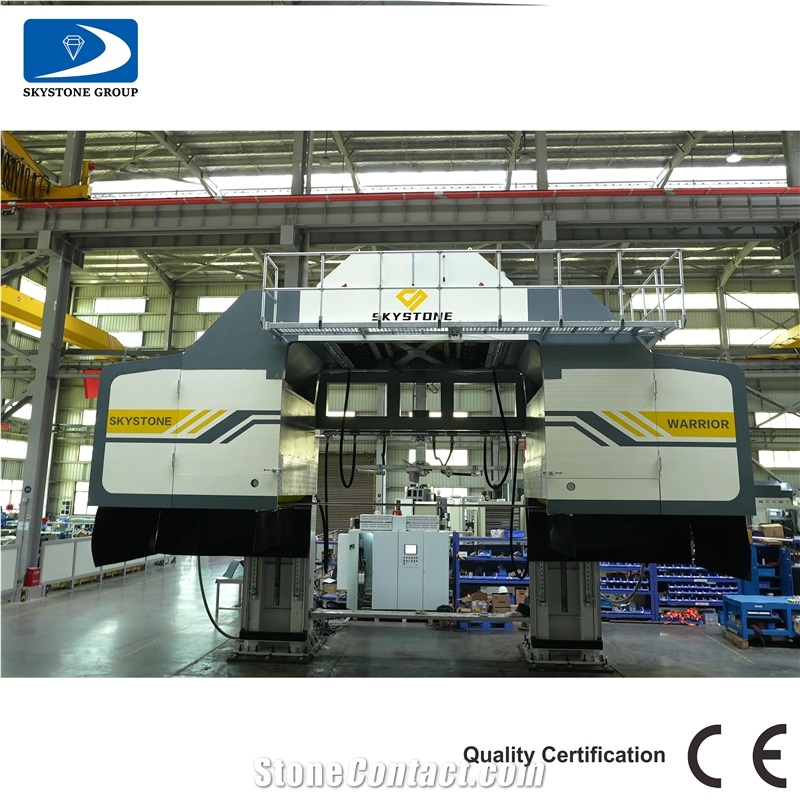

Top Multi Wire Saw Machine For Granite And Marble Blocks Cutting
FOB Price:
Supplier
Eatablished :Jan 01,2003
Main Product:
Stone Tool, Wire Saw Machine, Quarry Machine, Drilling Machine, Diamond Wire Saw, Wire Saw|

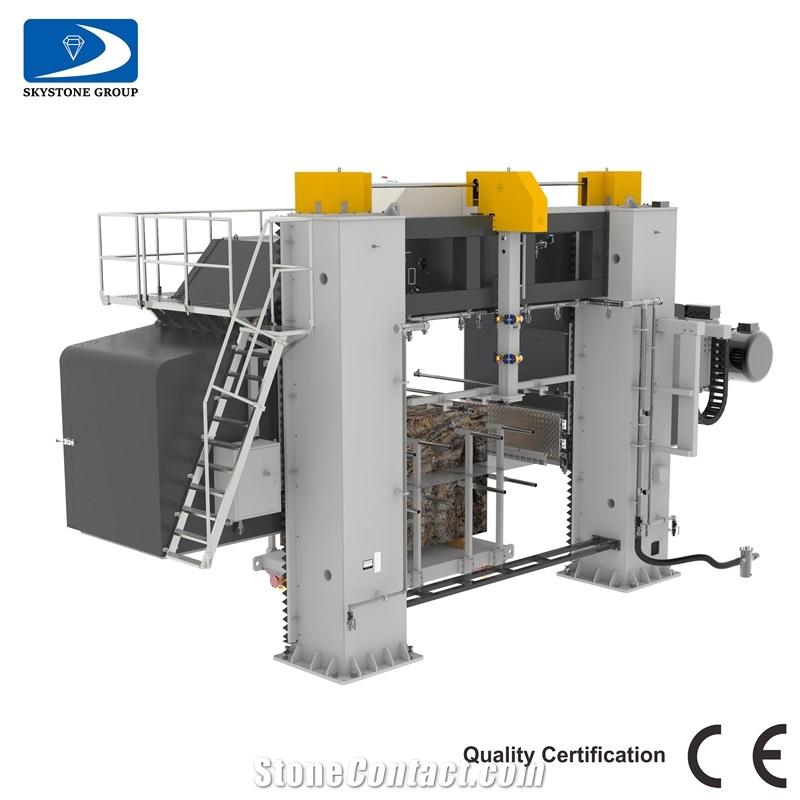

The latest triangle structure technology, higher cutting efficiency, and the stability of running. Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety. Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input. The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance. The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions.
Parameters |
Unit |
SMW12 |
SMW16 |
SMW32 |
SMW50 |
SMW74 |
SMW76 |
Wire quantities |
pcs |
12/9 |
16/12 |
32/24 |
50/38 |
74/55 |
76/57 |
Maxcut height |
mm |
2200 |
2200 |
2200 |
2200 |
2200 |
2200 |
Machine weight |
t |
18 |
22 |
38 |
55 |
70 |
70 |
Maxcut length |
mm |
3400 |
3400 |
3400 |
3400 |
3400 |
3500 |
Wire diameter |
mm |
7.3 |
7.3 |
7.3 |
7.3 |
7.3 |
6.3 |
Cooling water |
L/min |
180 |
250 |
500 |
750 |
1100 |
1100 |
Machine size |
m |
10*3.0*6.5 |
10*3.0*6.5 |
10*4.5*6.5 |
10*5.0*6.5 |
10*5.5*6.5 |
10*5.5*6.5 |
Line-speed |
m/s |
0-40 |
0-40 |
0-40 |
0-40 |
0-40 |
0-40 |
Main motor power |
kW |
55 |
75 |
132 |
200 |
280 |
280 |
Tension |
kg |
250 |
250 |
250 |
250 |
250 |
220 |
Slab thickness |
mm |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
Wire length |
m |
20 |
20 |
20 |
20 |
20 |
20 |
Total power |
kW |
65 |
85 |
145 |
216 |
304 |
304 |
-

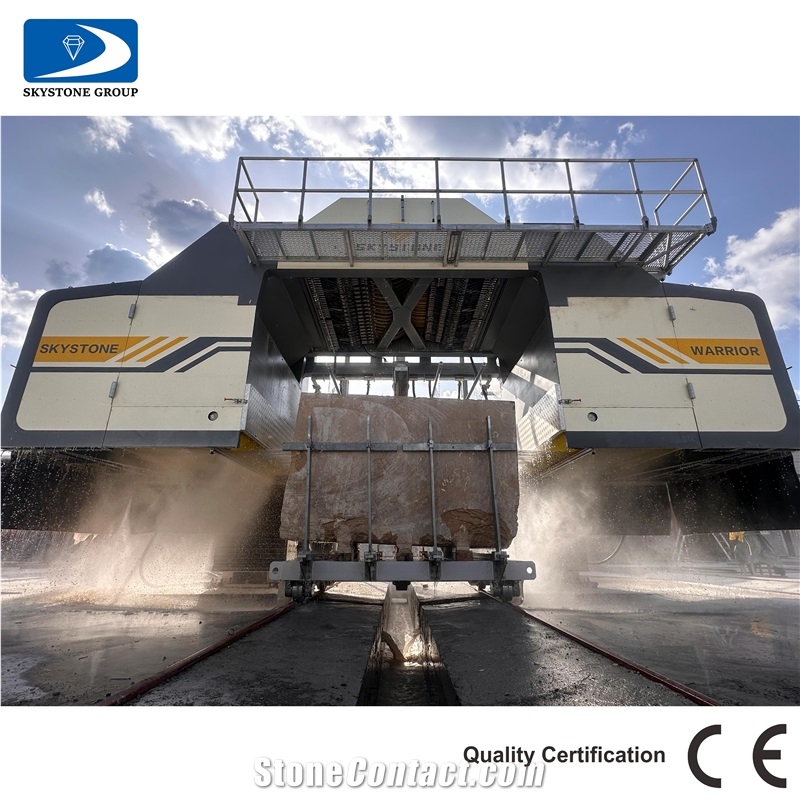

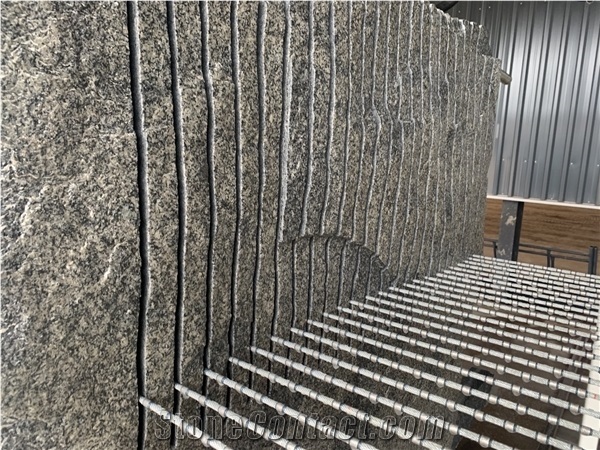

Cutting
-

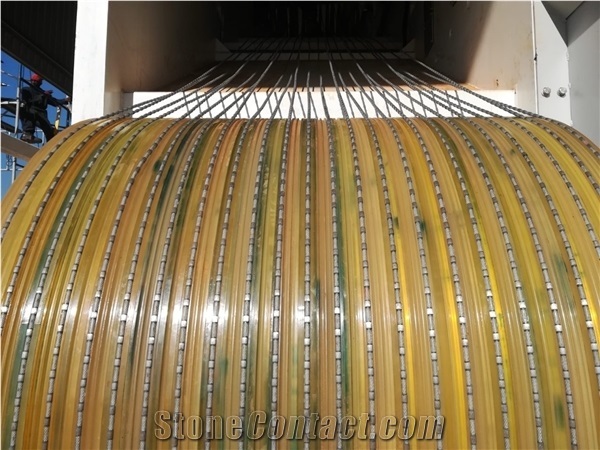

Driving wheel
-

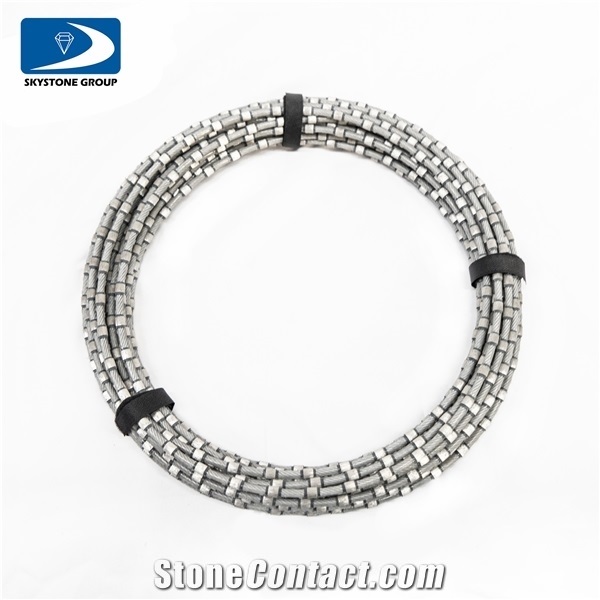

Diamong wire
