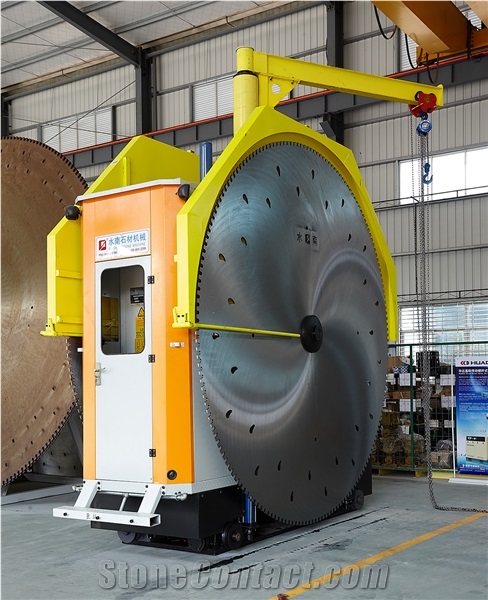

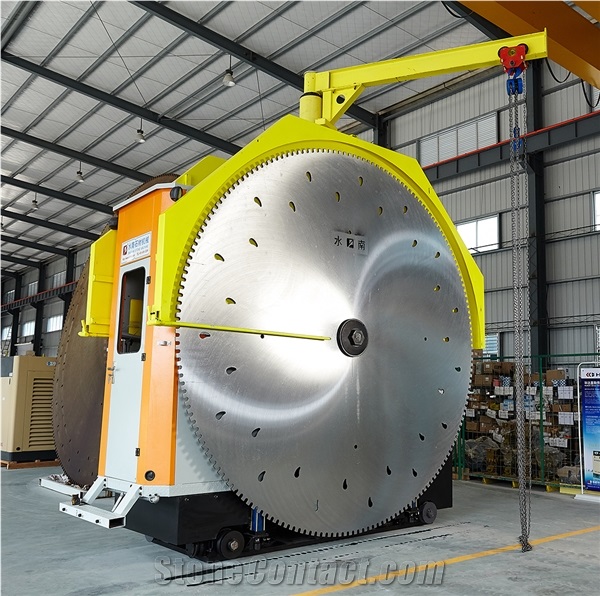

Double Blade Stone Mining Machine YZK1360/1900-3600

FOB Price:$19000-29000

Type: Stone Quarry MachinesDouble Blade Mining Machine
Usage: Granite, Marble, Limestone, Sandstone
After-Sale
Lead Time: 7 days after getting deposit
Warranty:3 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance

Supplier

Eatablished :Dec 29,1996

Main Product:

Stone Quarry Machine, Stone Cutting Machine, Infrared Bridge Cutting Machin, Multi Blade Bridge Cutting Mac, Automatic Polishing Machine, Block Cutting Machine|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
  • Customer Case
Machinery Function Features
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature. 2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits. 3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life. 4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource. 5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
Technical Data
Parameters
Unit
YZK1360/1900-3600
Water Consumption
m3/h
5
Total Power
kw
120
Cutting Width
mm
1360-1900
Max. Cutting Depth
mm
1500
Diameter of Blade
mm
3600
Motor of lengthwise rail swich
kw
2.2
Power of Tool Stroke
kw
2.2
Dimension LxWxH
mm
3800*1650*3200
Power of Pump Motor
kw
4
Power of Main Motor
kw
55
Center Distance of Rail
mm
1140
Gross Weight
Kg
7500
Processed Stone Photos
  • granite

    granite

Components

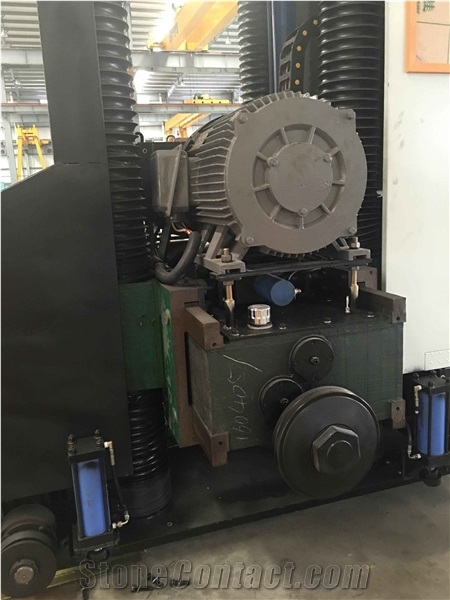

  • main motor and spindle box

    main motor and spindle box

Consumables

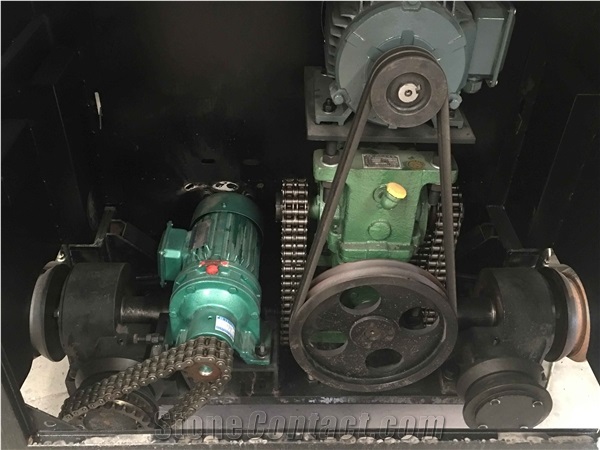

  • walk system

    walk system

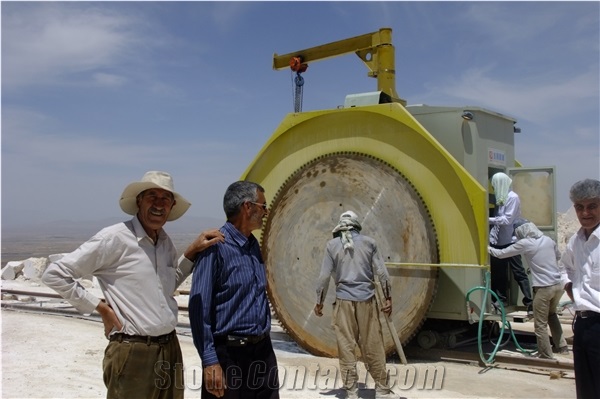

Customer Case
Fujian Stone Nigeria Nigeria 2017
Video
Install Video
Operation Video Screen.PrimaryScreen.Bounds.Height
