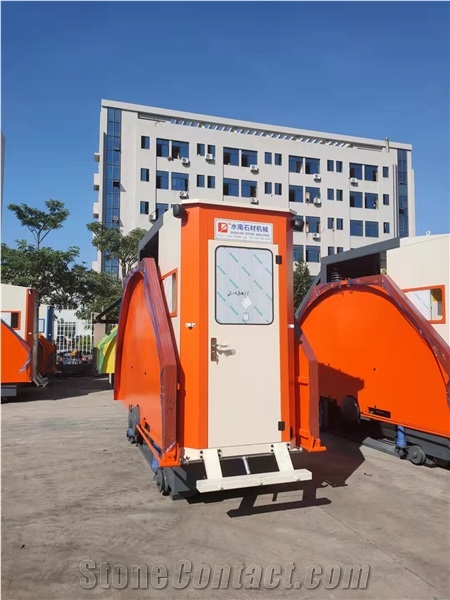

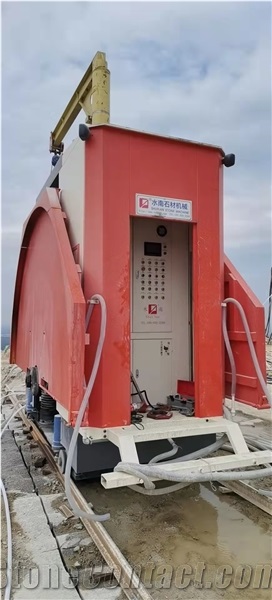

Double Discs 3300Mm Double Blade Granite And Marble Mining Machine

FOB Price:$20000-25000

Type: Stone Quarry MachinesDouble Blade Mining Machine
Usage: Granite, Marble, Quartzite, Sandstone
After-Sale
Lead Time: 10 days after getting deposit
Warranty:3 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Dec 29,1996

Main Product:

Stone Quarry Machine, Stone Cutting Machine, Infrared Bridge Cutting Machin, Multi Blade Bridge Cutting Mac, Automatic Polishing Machine, Block Cutting Machine|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
  • Customer Case
Machinery Function Features
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature. 2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits. 3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life. 4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource. 5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
Technical Data
Parameters
Unit
3300mm Double Blade Mining Machine
Cutting Width
mm
1360-1900
Power of Pump Motor
kw
2.2
Water Consumption
m3/h
5
Motor of lengthwise rail swich
kw
1.1
Gross Weight
Kg
75000
Power of Tool Stroke
kw
4
Total Power
kw
120
Power of Main Motor
kw
55
Diameter of Blade
mm
3300
Max. Cutting Depth
mm
1350
Dimension LxWxH
mm
4000*1650*3200
Center Distance of Rail
mm
1140

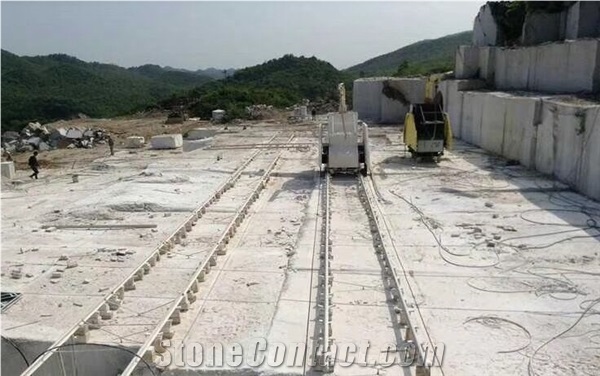

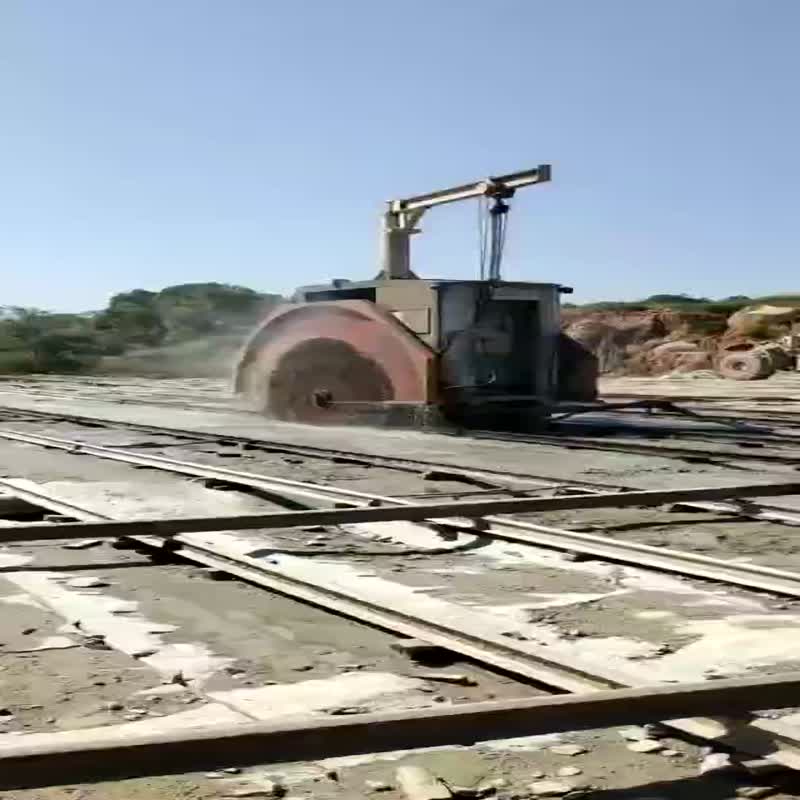

Work Example

1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.

2.The cylindrical guide rail is fully sealed to ensure that the guide railnopollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.

3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.

4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.



Processed Stone Photos

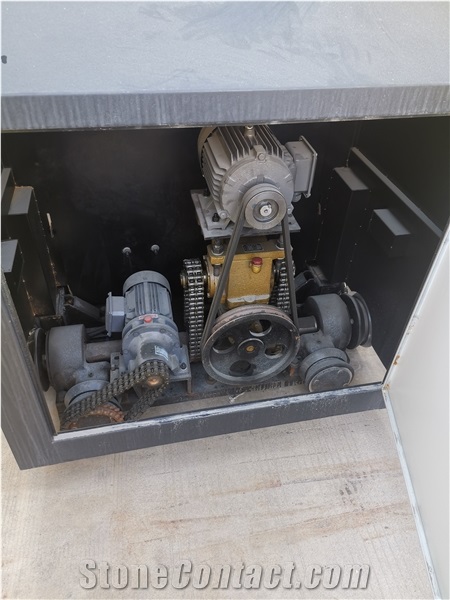

  • Turbine reducer

    Turbine reducer

Components

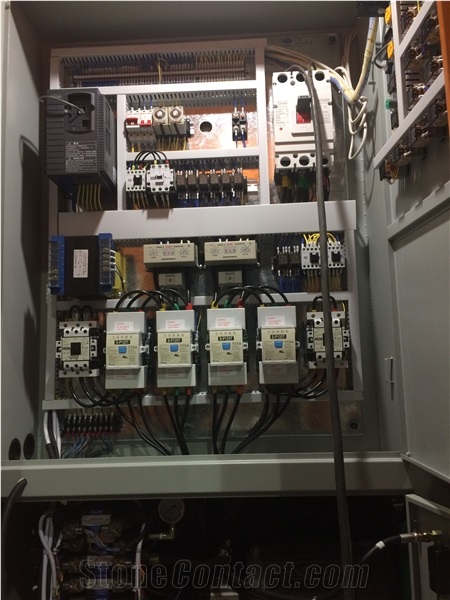

  • electric control box

    electric control box

    ¥Payment Required
Consumables
  • belt

    belt

Customer Case

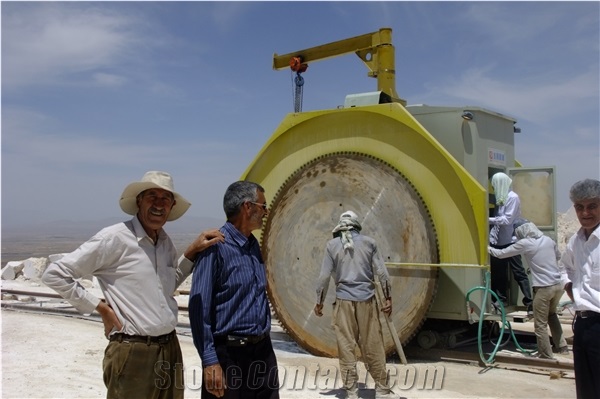

Oko Mongolia Mongolia 2020
Video
Install Video
Operation Video Screen.PrimaryScreen.Bounds.Height
