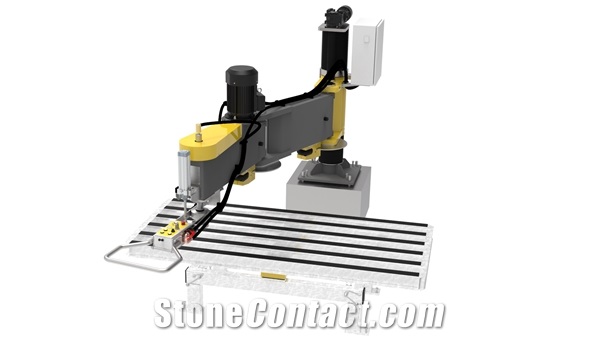

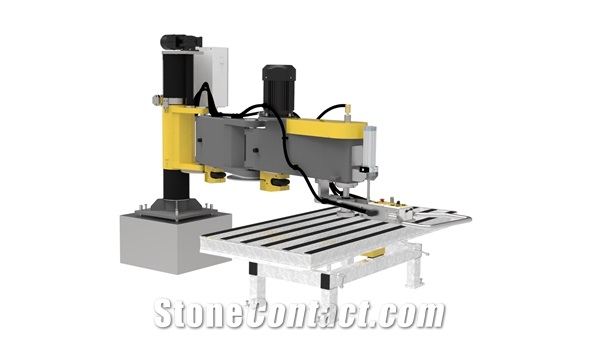

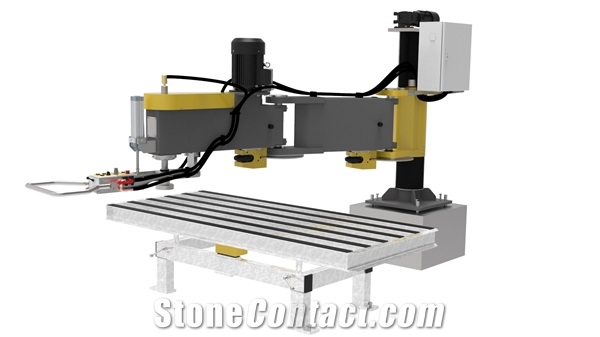

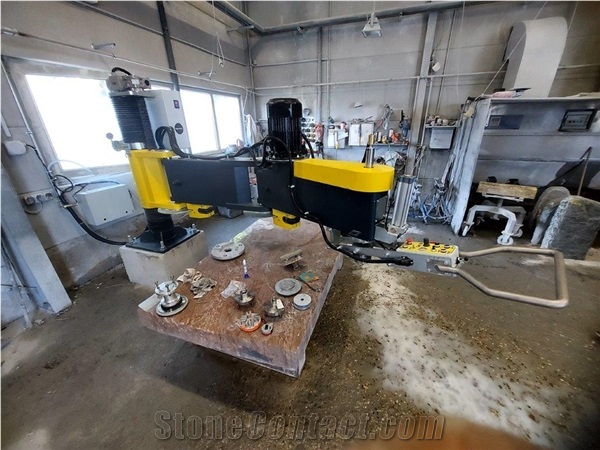

GSM 1100 B Arm Polishing Machine

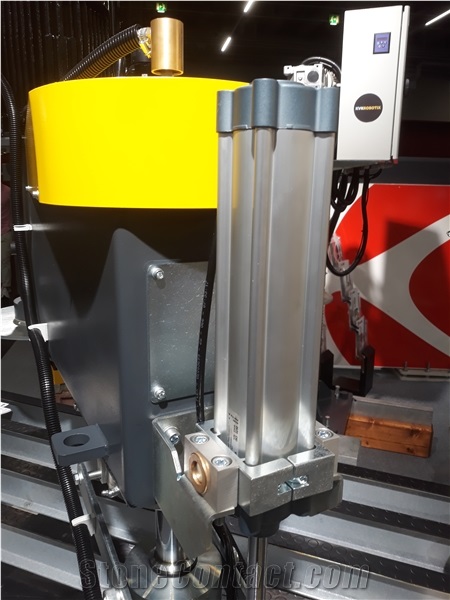

GSM 1100 B is the basic version of the machine with the addition of pneumatic arm and column brakes. The machine can be used in addition to the standard grinding, polishing and stocking operations, as well as for drilling with a maximum area of 2,500 x 1,200 mm. The machine is built with a solid construction that minimizes vibration. The emphasis is on easy handling, which is made possible by two 1,100 mm arms. In the basic version, the spindle is driven by a motor with a power of 5.5 kW and a speed of up to 1000 RPM. Motorized displacement of the arm on the column by 700 mm. The spindle of the machine has a stroke of 130 mm and is finished with a stainless steel flange with quick-action clamping.
