GSM 1100 Arm Polishing Machine
FOB Price:€21550-65000
Supplier
Eatablished :Jan 01,2021
Main Product:
Polisher Machine , Turn Tables, Bridge Saw, Cross Cutters, Machines, Used Machine|
Parameters |
Unit |
GSM 1100 |
Sound pressure level |
dB |
70 |
Spindle revs |
r/min |
0-1200 |
Spindle lifting cylinder stroke |
mm |
130 |
Max. processable width |
mm |
2500 |
Spindle motor power |
kw |
5,5 |
Minimum processable thickness |
mm |
0 |
Machine overall height |
mm |
2450 |
Lifting stroke |
mm |
700 |
Machine overall width |
mm |
3700 |
Maximum radius |
mm |
2575 |
Approx. Weight |
Kg |
1350 |
Machine overall length |
mm |
3700 |
Max. processable length |
mm |
1100 |
Water consumption |
L/min |
20 |
Diameter of plate |
mm |
2000x1200 |
Without software

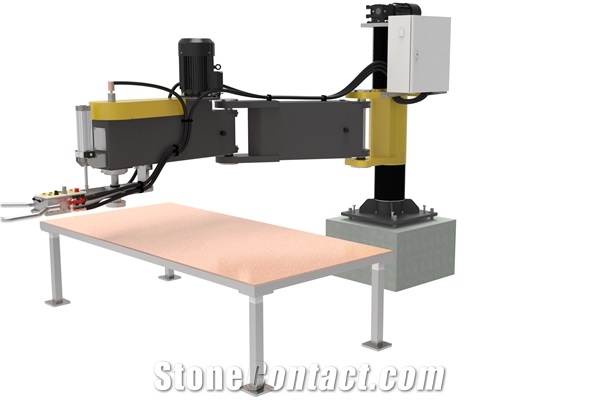

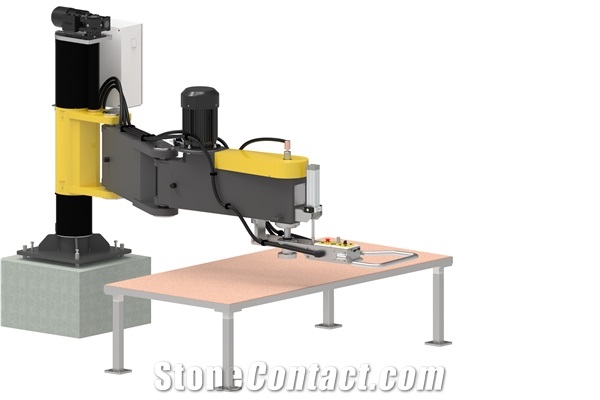

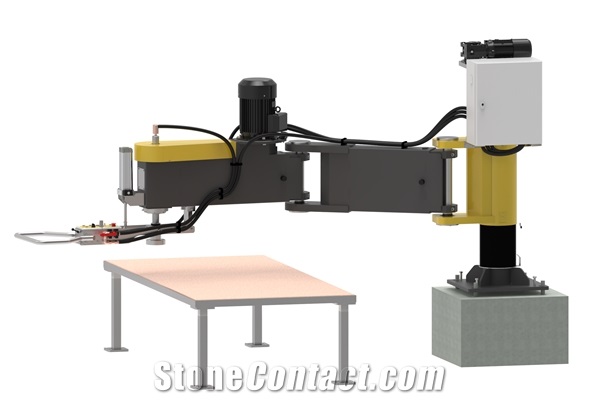

The GSM 1100 is a manual arm designed for grinding, polishing and stamping slabs and monuments made of stone or concrete with maximum dimensions of 2,500 x 1,200 mm. The machine is built with a solid construction that minimizes vibration. The emphasis is on easy handling, which is made possible by two 1,100 mm arms. In the basic version, the spindle is driven by a 5.5 kW engine.
The basic version has a vertical motorised shift of 700 mm of the arms on the column.
The spindle of the machine has a stroke of 130 mm and is finished with a stainless steel flange with quick-action clamping.
-
Air press
-
Speed regulation
-
Covers
