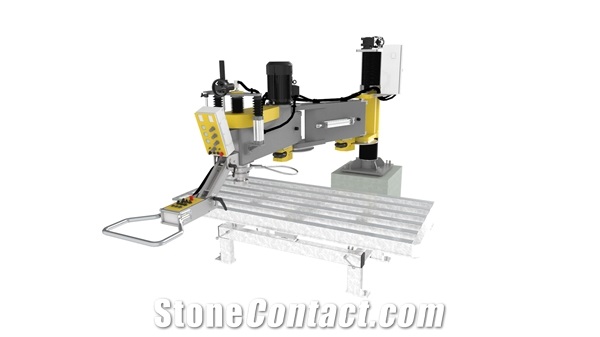

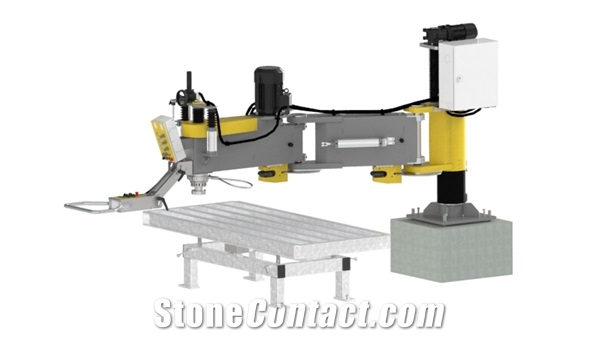

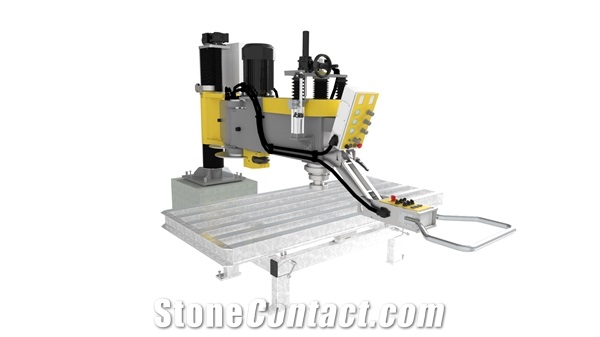

GSM 1100 F Arm Polishing Machine

GSM 1100 F is the highest version of the machine, which is capable of grinding, polishing, stocking, drilling and milling with maximum surface dimensions of 2,500 x 1,200 mm. The massive construction of the machine minimizes vibrations and thus the stability of the tool. The emphasis is on easy handling, which is made possible by two arms with a pitch of 1,100 mm separately stored in bearing housings. In the basic version, the spindle is driven by a motor with a power of 5.5 kW and a speed of 1200 RPM. The basic version of the machine enables a motorized shift of the height of the arms on the column by 700 mm. The spindle of the machine has a stroke of 130 mm and is finished with a stainless steel flange with quick-action clamping. A large selection of accessories and tools will help you succeed.
