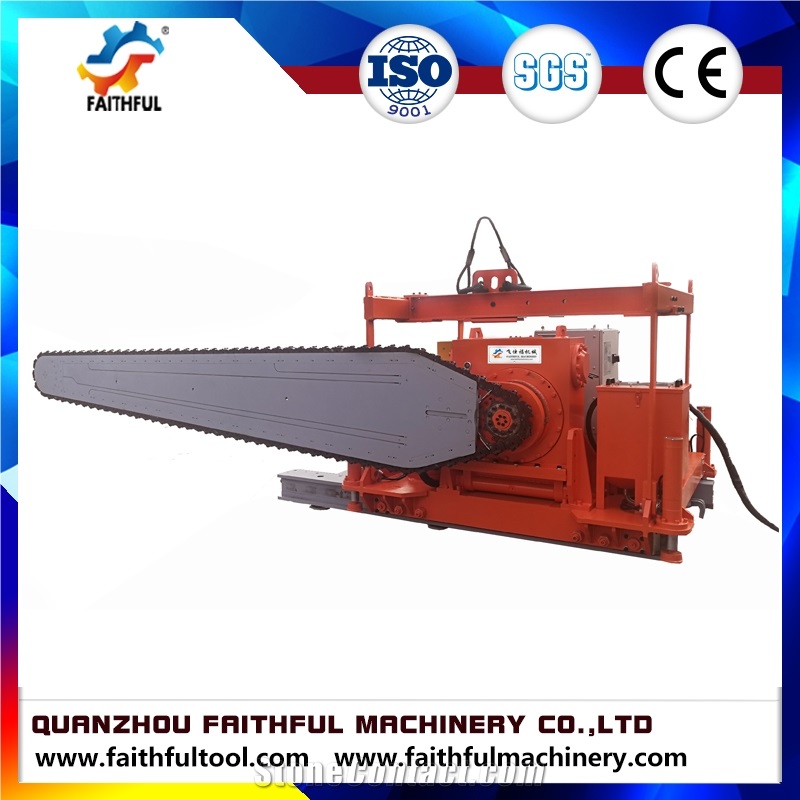

Marble Quarry Chain Saw Machine

Name: Marble Quarry Chain Saw Machine
Brand: Quanzhou Faithful Machinery Co.,Ltd
SKU: 6096
Price: 81690 USD
Availability: InStock

FOB Price:$81690-87678

Type: Stone Quarry MachinesStone Chain Saw MachinesBank Chain Saw Machines

Usage: Marble, Limestone, Onyx, Sandstone, Travertine

After-Sale

Lead Time: 30 days after the order is effective

Warranty:3 Months

Install and Guarantee:Customer pay for installation

Maintenance:Regular guidance & maintenance

Trade Terms

Port: XIAMEN- China

Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery

Payment :

Supplier

Quanzhou Faithful Machinery Co.,Ltd

Faithful Machinery

China

Eatablished :Dec 11,2020

Main Product:

Quanzhou Faithful Machinery, Stone Quarry Machine, Stone Processing Machine, Concrete Cutting Machine, Diamond Wire Saw, Diamond Tools|

Contact supplier

Start Order

You may also like

Quarry Chain Saw Machine On Rails

Rail Type Chain Saw With Hoist Jib

70RA-PD Quarry Bank Sawing Machine

Quarry Chain Saw Machine Nf-7.1

Chain Saw Machine

Product Detail
Company Profile

Overview
Components
Video
Trade Terms

Machinery Function Features

Model：FM- CS3200 Power： 53Kw Input Power and cable： 380V 50HZ， 3×35 mm²+1×10 mm² Capacity of the hydraulic tank： 200L Lubricating oil capacity： 25kg The maximum vertical cutting depth： 3.2m The maximum horizontal cutting depth： 3.2m Kerf width： 40 mm Chain rotation Angle： 360° Cutting chain speed： 0～1.2m/s Quick positioning speed： 30m/h Cutting speed： 0～7 m/h Water supply and Water pressure： 30L/min,3bar(Cutting normal Marble doesn't need water.）

Technical Data

Parameters	Unit	FM- CS3200
Cutting Efficiency	70	0～7
Total Weight	26	9040
Dimension LxWxH	4	3200×2000×1960
Power Supply	82	380V 50HZ
Motor Flywheel Unit Rotation	64	360°
Max. cutting width	2	3.2
Main Motor Power	7	53Kw
Length of rails	2	3
Wire Saw Speed	16	0～1.2
Power of Hydraulic Unit Motor	7	53Kw
