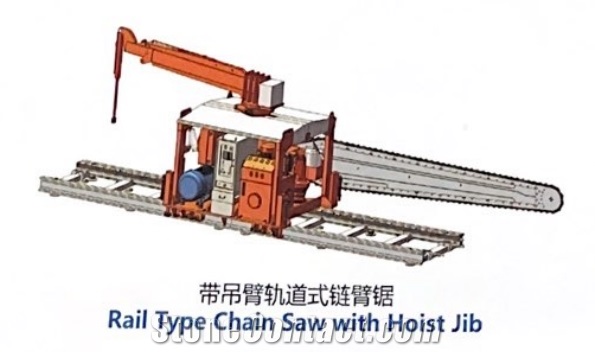

Rail Type Chain Saw With Hoist Jib

GD-CS3200-XD marble chain saw is the special marble quarrying equipment, which consists of a host, moving platform, rails, chain arm, chain, hydraulic system, electric control system, chain lubrication pump and other parts. Chain arm, cutting chain and the machine move on the rails, the machine can rapidly adjust oil cylinder action by the hydraulic pressure drive. The chain arm may rotate in 360 degree for vertical and horizontal cutting which can translate freely according to the mining requirement. The cutting chain is transmitted by motor through a gearbox, making stepless speed regulation within 0-1.2m/s by frequency control chain speed. The hydraulic motor drives the platform moving back and forth and the 360 degree rotation of chain arm, both having two speeds (fast and slow); The cutting speed can be adjusted according to the hardness of stone; The hydraulic system is equipped with automatic heating and air cooling device, which can ensure the equipment can work normally when the environment temperature difference is substantial; This equipment is suitable for quarrying the secondary level marble blocks.
