Robotor Stone Carving Robot
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving Robot
Usage:
Granite, Marble, Limestone, Onyx, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jul 07,2019
Main Product:
ROBOTIC FOR STONE, ROBOTIC FOR INDUSTRY, ROBOT FOR CARVING|
You may also like
Machinery Function Features

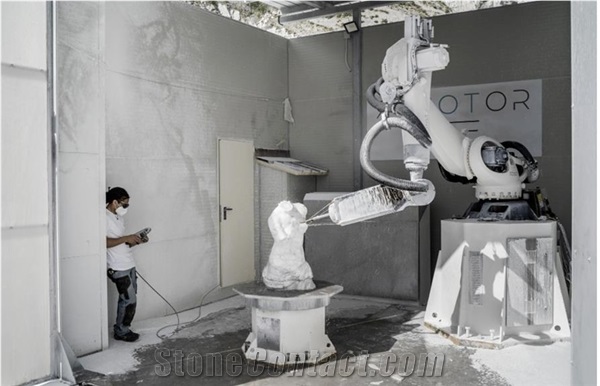

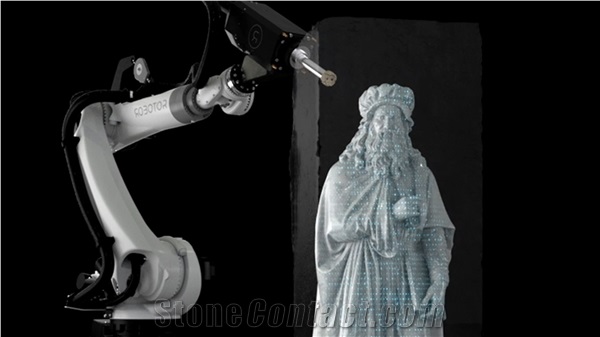

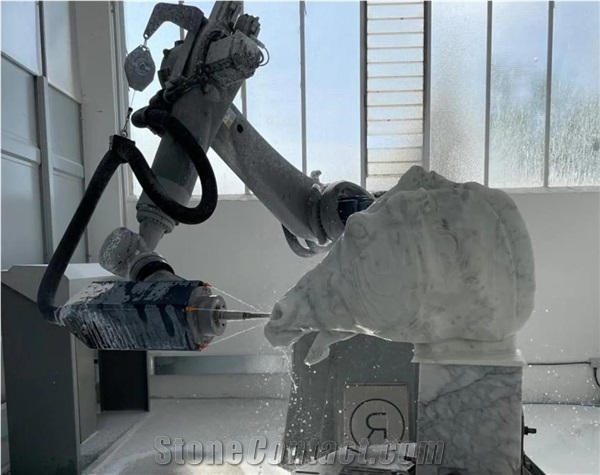

Robotor offers three versions that mainly differ in size: M, L and XL. Thanks to the maximum exploitation of its features, the BOT-ONE range allows to create sculptures up to 4.5 meters high: it is the ideal solution to sculpt and model 3D files professionally thanks to all its power and flexibility.

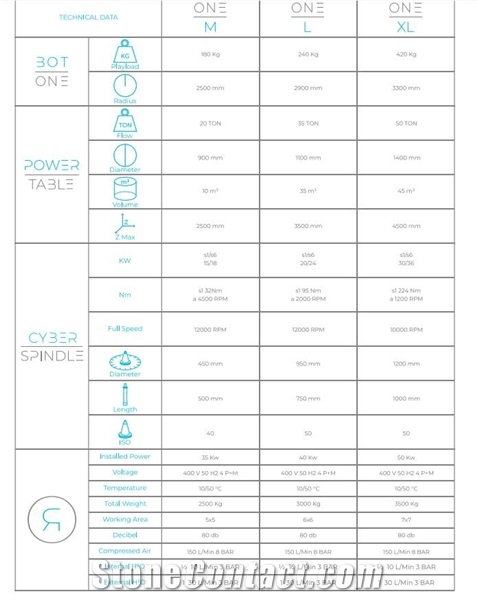

Technical Data
Parameters |
Unit |
M |
L |
XL |
Repeatability of positioning |
mm |
900 |
1100 |
1400 |
Min. water pressure |
bar |
3 |
3 |
3 |
Max. range of action |
mm |
2500 |
2900 |
3300 |
Weight (robots only) |
Kg |
2500 |
3000 |
3500 |
Min. air pressure |
bar |
8 |
8 |
8 |
Air consumption |
L/min |
150 |
150 |
150 |
Installed power |
kw |
35 |
40 |
50 |
Temperature |
C |
10/50 |
10/50 |
10/50 |
Volume |
m3 |
10 |
35 |
45 |
Weight capacity on the wirst |
T |
20 |
35 |
50 |
Sound pressure level |
dB |
80 |
80 |
80 |
Water consumption |
L/min |
30 external+10 internal |
30 external+10 internal |
30 external+10 internal |
Standard voltahe/Nominal tension |
Volt |
400 V 50 Hz 4 P+M |
400 V 50 Hz 4 P+M |
400 V 50 Hz 4 P+M |
Working Area |
m |
5x5 |
6x6 |
7x7 |
