SCHIND 16400 - Marble, Stone And Granite Cutting Machine

FOB Price:

Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting, Field troubleshooting

Supplier

SCHIND MACHINES

SCHIND MACHINES

SCHIND MACHINES

TurkeyTurkey

Eatablished :Jan 05,2002

Main Product:

Marble Cutting, Polishing Machine, Multi Wire Gangsaw, Block Cutting, Marble Block, Diamond Tool|

Contact supplier

Start Order

  • Overview
Machinery Function Features

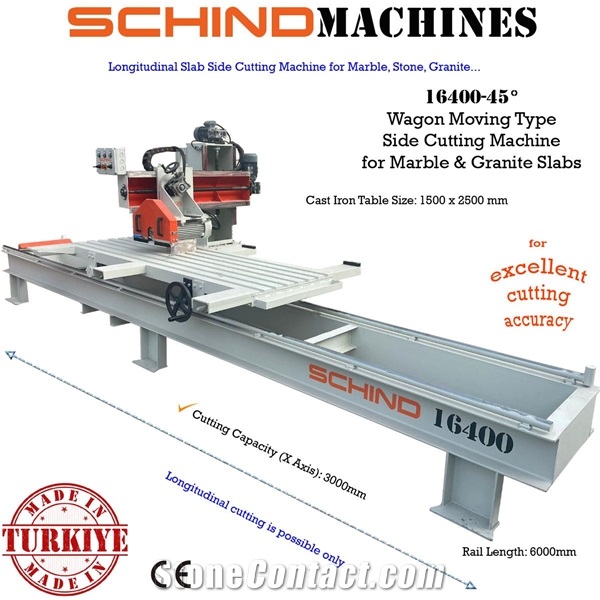

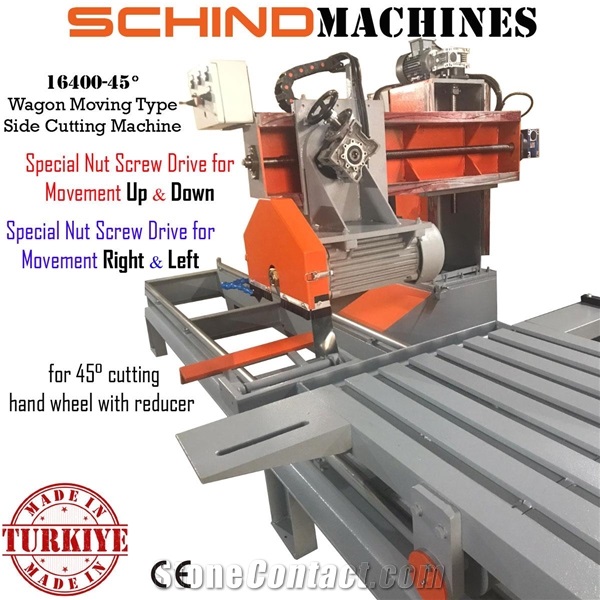

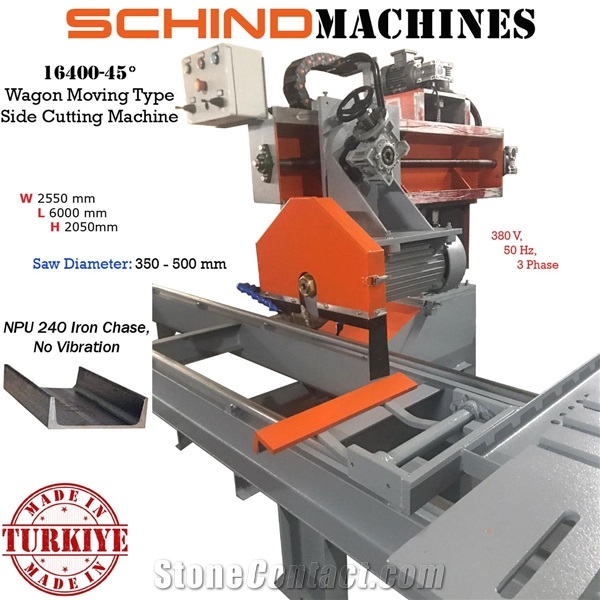

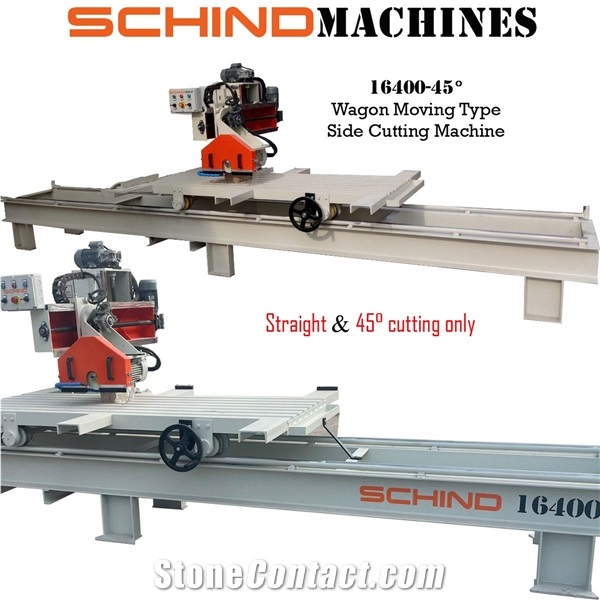

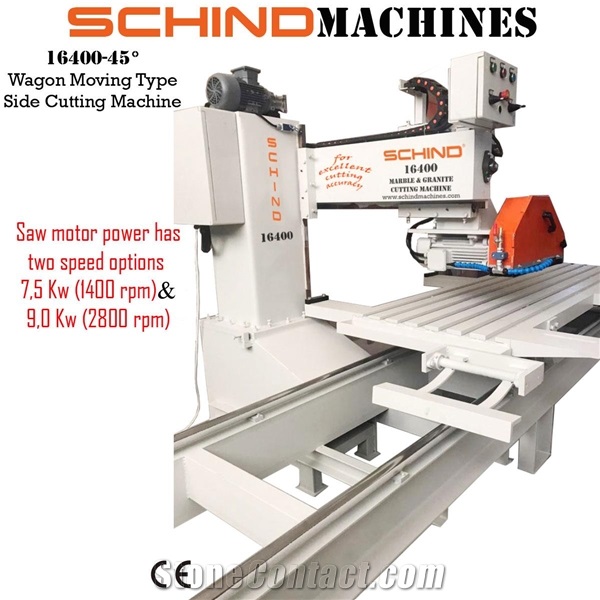

High quality, durable and long life marble cutting machine will make your job easier by cutting marble, natural stone and granite platters with side cutting feature. Our machines, which we produce with our experience in the marble and granite sector developed in Turkey, have effective and efficient designs. With the Schind 16400 marble, granite, stone cutting machine, you can speed up your production process thanks to this effective and efficient design. You save work and time with the possibility of longitudinal and 45° marble cutting. The chassis of Schind 16400 marble, granite, stone cutting machine is produced with NPU 240 iron. Thus, you can obtain smooth parts without vibration during cutting. You can shape your production as you want with two different sawing speed options. Longitudinal cutting machine 45° cutting It cuts only on X axis Cutting head can't turn It can be used manually Made of NPU 240 chassis
Technical Data
Parameters
Unit
SK16-0101
Saw Speed
rpm
1400 / 2800
Max. workable material width
mm
1300
Disc motor power
kw
7.5 - 9 .0
Marble Cutting Length
mm
3000
Discs diameter
mm
350-500
Slide Length
mm
6000
Workbench Width
mm
1500
Voltage
V
380V
Workbench Length
mm
2500
Discs number
nr
1
