SCHIND CC01 Marble And Granite Cross Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 05,2002
Main Product:
Marble Cutting, Polishing Machine, Multi Wire Gangsaw, Block Cutting, Marble Block, Diamond Tool|
Machinery Function Features

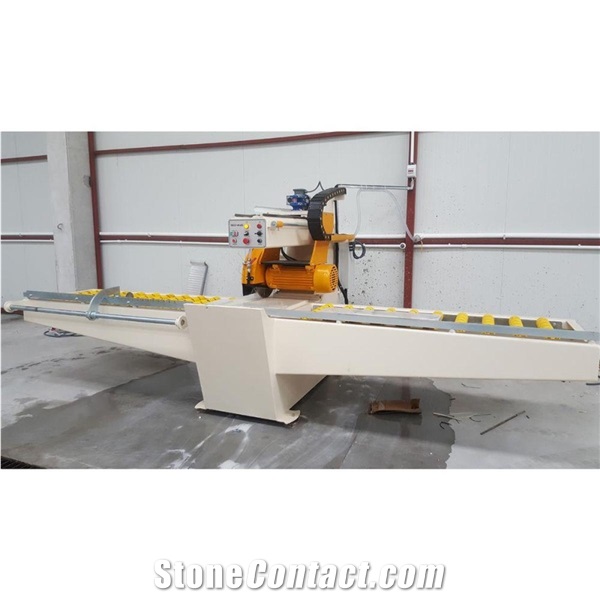

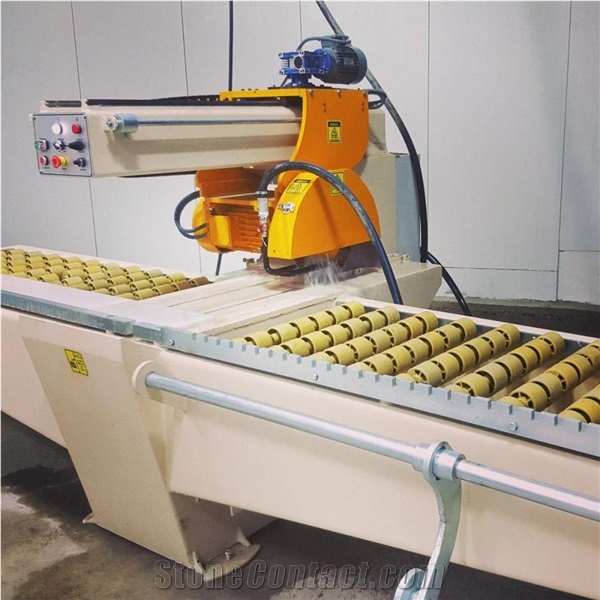

SCHIND CC01 Marble and Granite Cross Cutting Machine
Only the transverse cutting machine cuts jagged edges without any difficulty with its powerful motor.
It cuts straight on Y axis… No 45 ° cutting, No head rotation to another directions,
Cutting ability is net 800 mm on Y axis,
Cutting head group moves on the linear slides by button / joystick. Saw Forward – Saw Backward,
Marble slabs can be easily load on the plastic rolls for squaring,
Cutting speed is adjustable
Option: assembling bellows to cover upper body moving linear with additional cost
Technical Data
Parameters |
Unit |
SCHIND CC01- MCRS01 |
Maximum cutting width |
mm |
800 |
Discs number |
nr |
1 |
Cutting Angle |
° |
90° |
Saw Flange Dia. |
mm |
280 |
Disc motor power |
kw |
7.5 / 11 |
Saw Speed |
rpm |
1400 / 2900 |
Installed electrical power |
kw |
8.5 |
Machine length (L) |
mm |
4000 |
Discs diameter |
mm |
max 400 |
Voltage |
V |
380V |
Machine height (H) |
mm |
1500 |
Vertical Saw Motion |
mm |
50 |
Maximum workable thickness |
mm |
100 |
Approximate weight |
Kg |
1800 |
Machine width (W) |
mm |
2000 |
Saw Hole Dia. |
mm |
50 |
