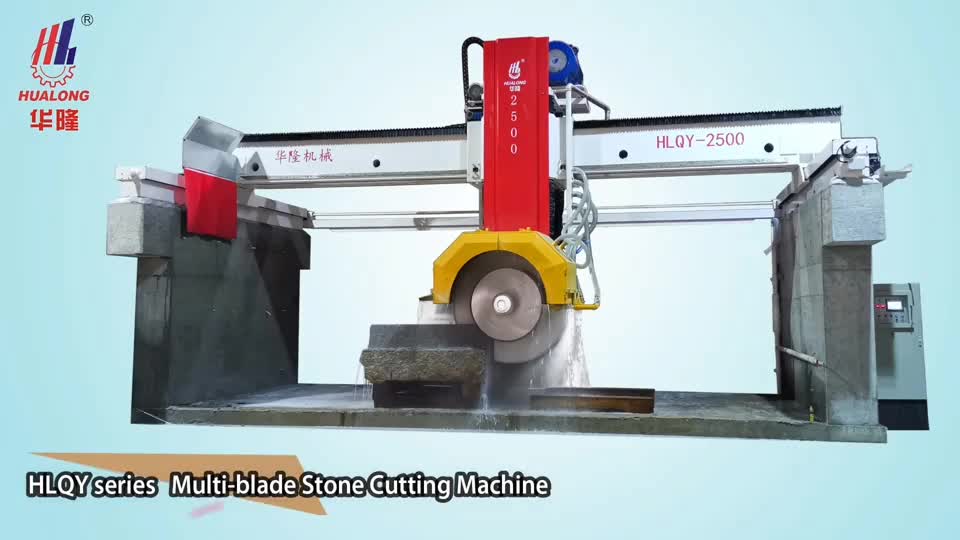

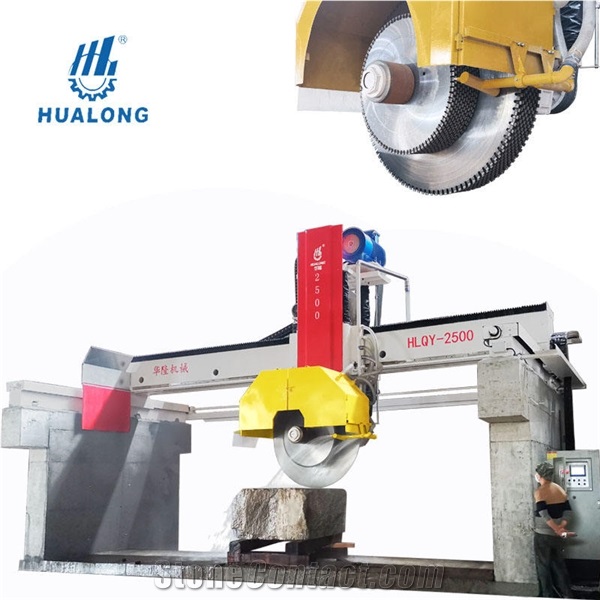

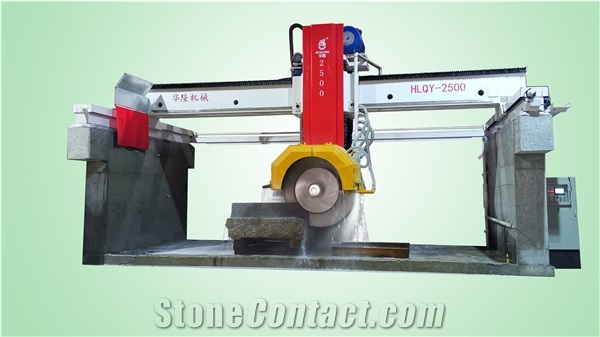

16Pcs Blade Stone Block Cutting Machine For Granite Marble Sandstone
FOB Price:$28000-31000
Type:
Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage:
Granite, Marble, Limestone, Sandstone
After-Sale
Lead Time:
30
Warranty:24 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Apr 17,1997
Main Product:
CNC Bridge Saw, Quarry Machine, CNC Diamond Wire Saw, Manual Edge Cutting Machine, Auto Hammering Machine, CNC Water Jet Cutting Machine|

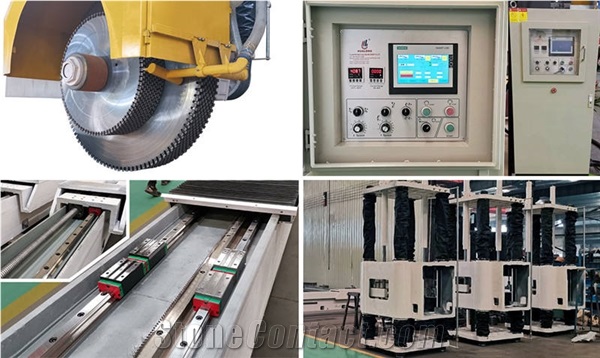

Machinery Function Features

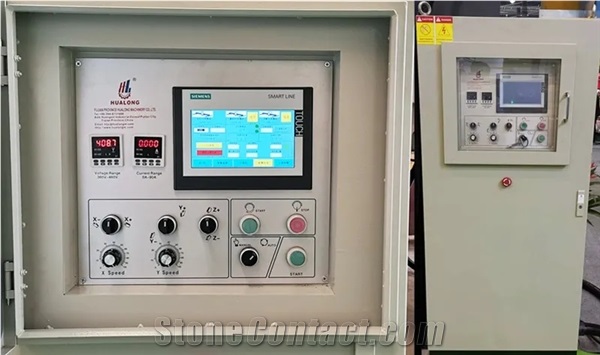

1) Siemens smart PLC control system make automation performance and easy.

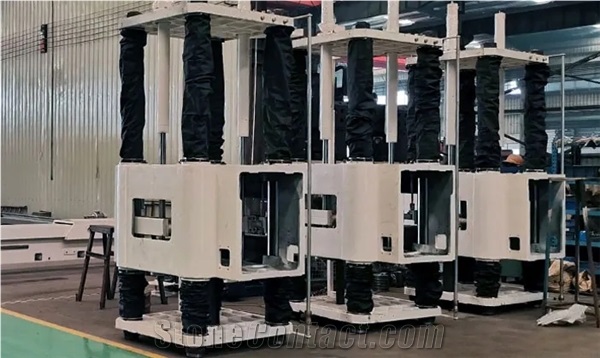

2) Adopts 4 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.
3) Two-slider frame structure driven synchronized by screw with high stiffness and stability.

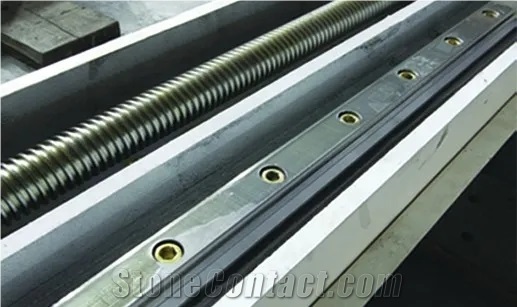

4) Sliding system of X and Y axes on linear guides and racks both in oil bath lubrication grants smooth and high production.
Technical Data
Parameters |
Unit |
HLQY-1600 |
HLQY-2300/2500 |
HLQY-3000 |
Cross beam type |
A/B |
A/B |
||
Power of pump motor |
kw |
4 |
4 |
4 |
Gross weight |
kg |
10000 |
13000/14000 |
14000/15500 |
Cross beam length |
mm |
6000 |
7600 / 8300 |
8300 / 9300 |
Gross power |
kw |
62.3 |
62.3 |
62.3 |
Dimensiona(L x W x H) |
mm |
6500x5000x4000 |
7800x5000x4500 |
7800x5000x4500 |
Max. blade diameter |
mm |
1600 |
2300/2500 |
3000 |
Lifting stroke |
mm |
800 |
1350 |
1350 |
Power of main motor |
kw |
55 (4P) |
55 (4P) |
55 (6P) |
Cutting length |
mm |
3500 |
3500 |
3500 |
Power of stroke motor |
kw |
2.2 |
2.2 |
2.2 |
Cutting width |
mm |
2000 |
2000 |
2000 |
Power of vertical motor |
kw |
1.1 |
1.1 |
1.1 |

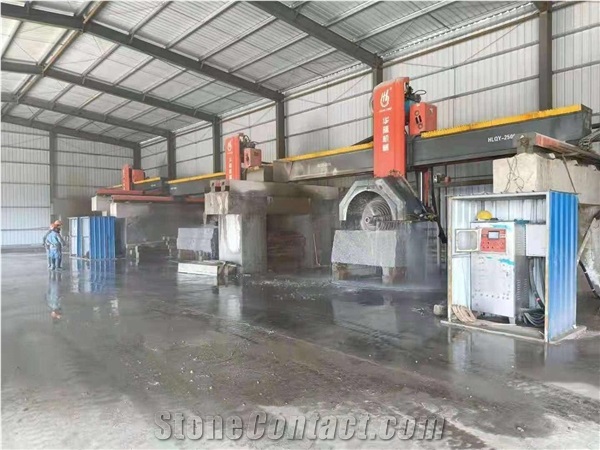

Processed Stone Photos
Components

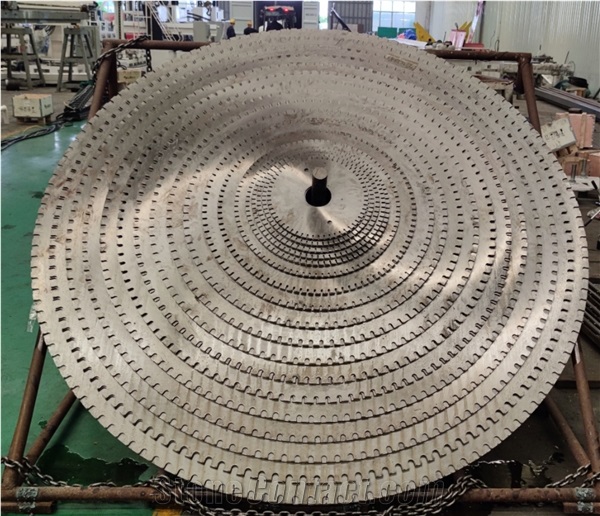

Consumables
