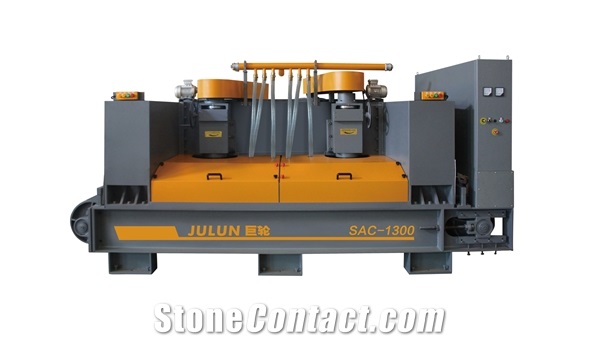

SAC-1300 Automatic Double Heads Calibrating Machine
FOB Price:$30500-31500
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesLeveling Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
WITHIN 30 DAYS AFTER RECEIVING THE DEPOSITS
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting
Supplier
Eatablished :Nov 29,1990
Main Product:
Stone Cutting Machine, Stone Polishing Machine, Stone Drilling Machine, Stone Calibrating Machine, Stone Chamfering Machine, Stone Profiling Cutting Machine|
Machinery Function Features
It is mainly formed by main engine lifting system, spindle grinding system and conveyor belt driving system. The clearance fits well by using the cylinder as the lifting guide sliding surface, which stops the minor vibrations that others can't overcome during processing. In the spindle grinding system, the structure is driving by long spline and connected the guide by long key. Thus the spindle drives steady, safe and reliable. The conveyor belt running system is moving freely by using frequency converter with continuously variable. The whole set machine has the advantage of good working performance. It is the optimization equipment of slabs calibrating and leveling.
Technical Data
Parameters |
Unit |
SAC-1300 |
Machine overall width |
mm |
3100 |
Grinding head diameter |
mm |
1350 |
Machine overall height |
mm |
2200 |
Min. working thickness |
mm |
100 |
Main motor power |
kw |
30 |
Total power |
kw |
64 |
Grinding head lifting stroke |
mm |
100 |
Water Consumption |
m3/h |
16 |
Approx. Weight |
Kg |
11000 |
Machine overall length |
mm |
4200 |

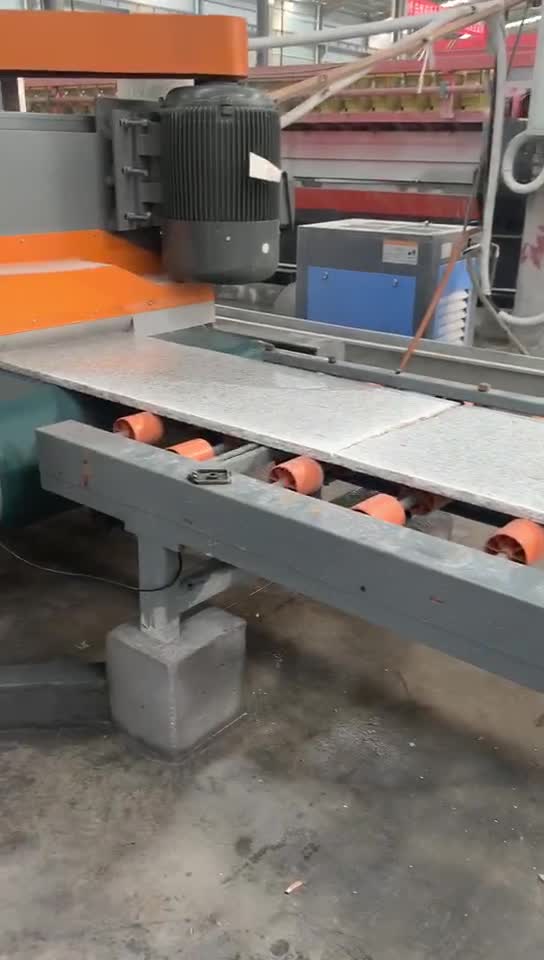

Processed Stone Photos
-

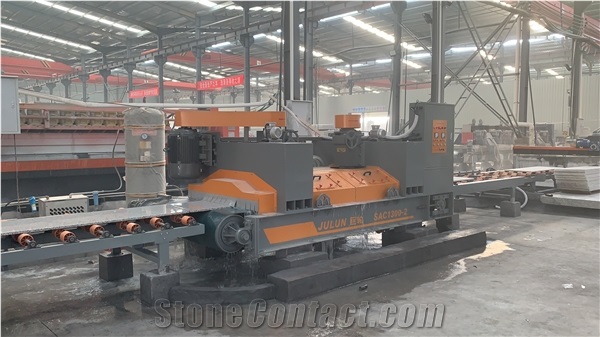

Machine

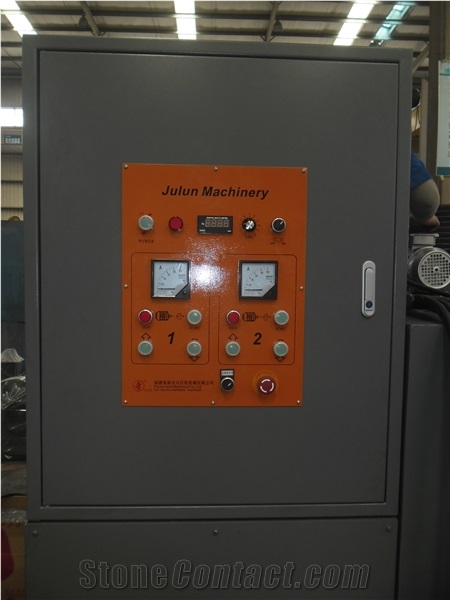

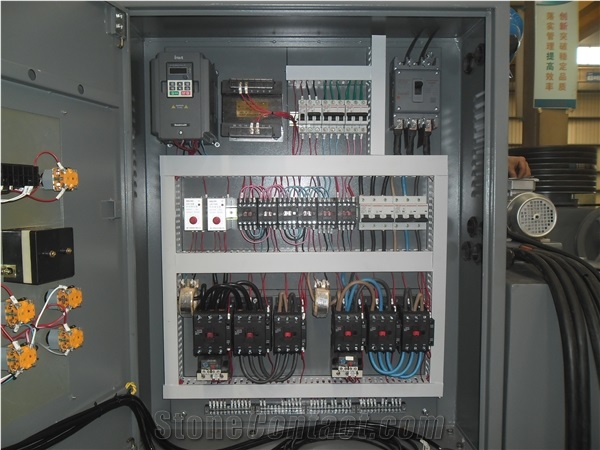

Components
-
Main machine
Consumables
-
button
Customer Case
Domestic customer
China
China
