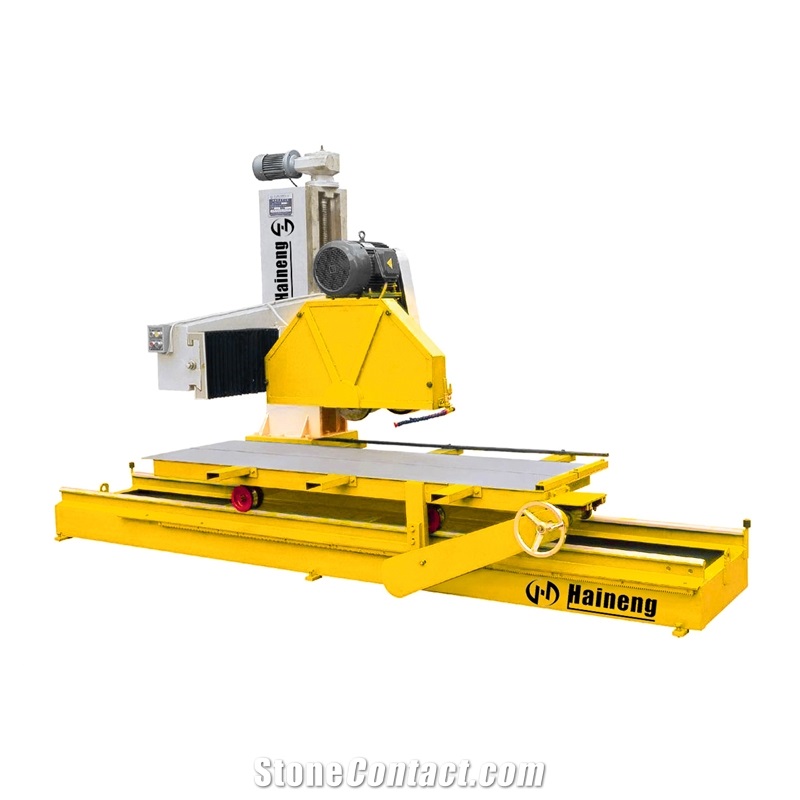

AYH-5A Single Arm Disk Manual Stone Cutting Machine
FOB Price:$6600-6800
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
It is a machine which mainly cuts semi-finished stone and slab. It can also be used to cut slat with 360 degree wanton rotation of the head. It can cut the standard stone of different beveled sides. The saw blade is of automatic elevation, in and out with manual cutting.
Technical Data
Parameters |
Unit |
DYQ-5A |
Machine length |
mm |
4200 |
Machine height |
mm |
2300 |
Total power |
kw |
16.5 |
Machine width |
mm |
2200 |
Blade diameter |
mm |
800-1000 |
Main motor power |
kw |
15 |
Max. thickness cutting capacity |
mm |
350 |

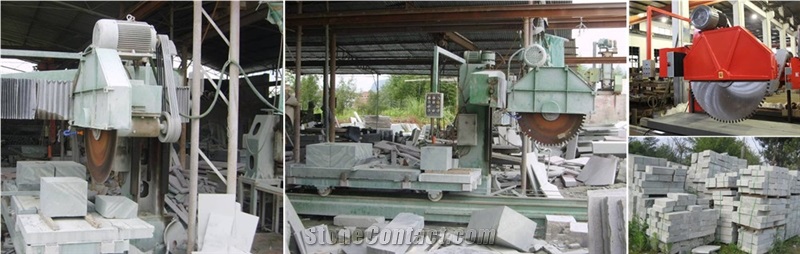

Processed Stone Photos
Components
-
¥Payment Required
Consumables
-

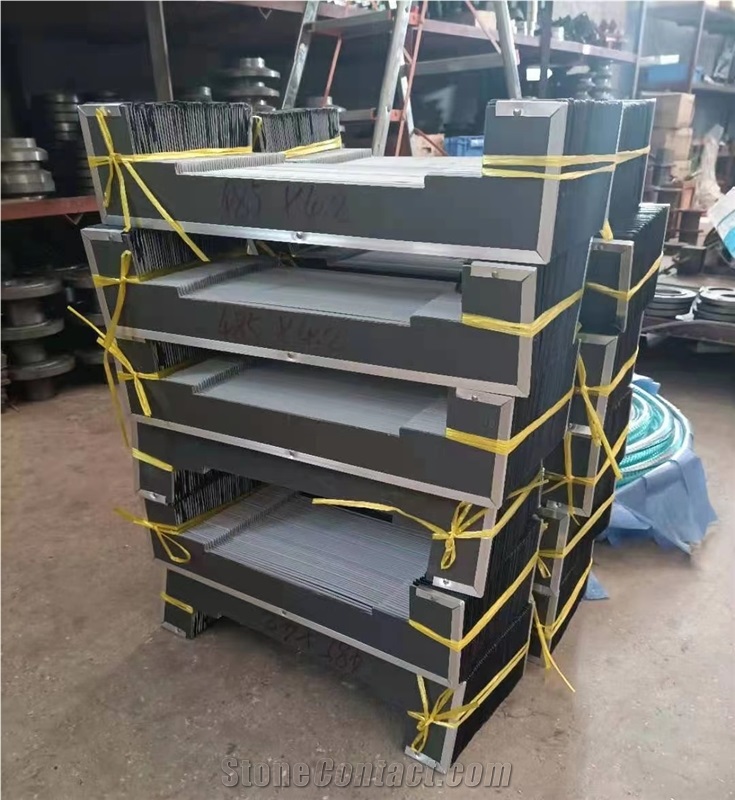

Saw blade
800mm-1000mm
