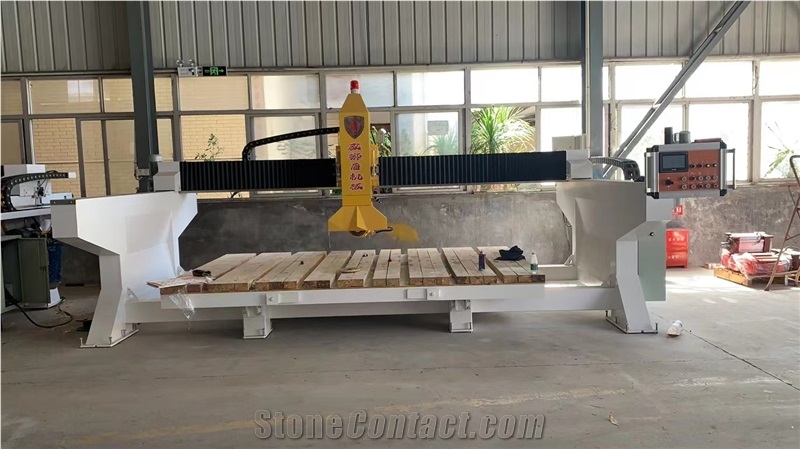

Infrared 4 Axis Marble And Granite Bridge Saw For Quartz Cutting
FOB Price:$20000-40000
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
15days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 20,2021
Main Product:
Bridge Saw, Stone Cutting Machine, Block Cutting Machine, Wire Saw Machine, Stone Splitter, Stone Polishing Machine|
Machinery Function Features

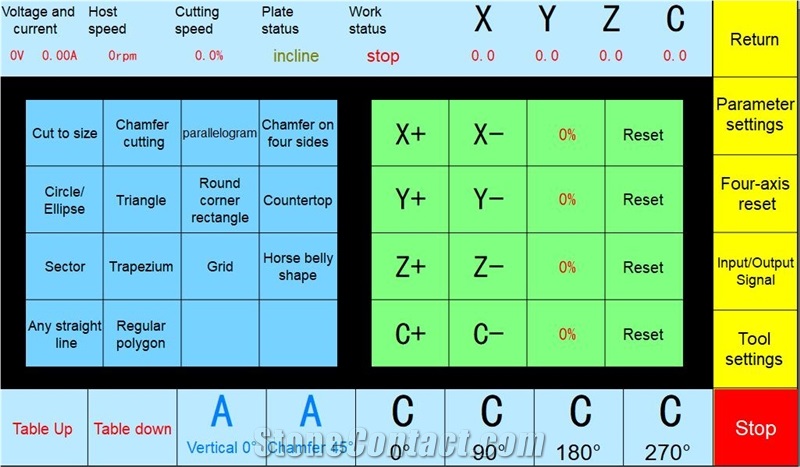

The 4 axis bridge saw main motor with Frequency Transducer, can cut many shapes such as
Edge cutting, Miter cutting, two side miter cutting, square hole, countertop, triangle, straight edge, round corner, circle, ellipse, mesh, trapezoid, fan, parallelogram, regular polygon, any angle line, etc...
Bridge and side rail both oil bath, rather than grease lubricating
High precious due to unique driven design, rather than coupling driven.
Full size 3200*2000 miter cutting
Small footprint

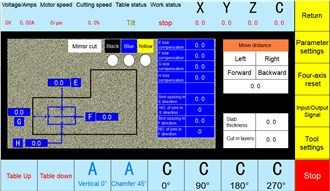

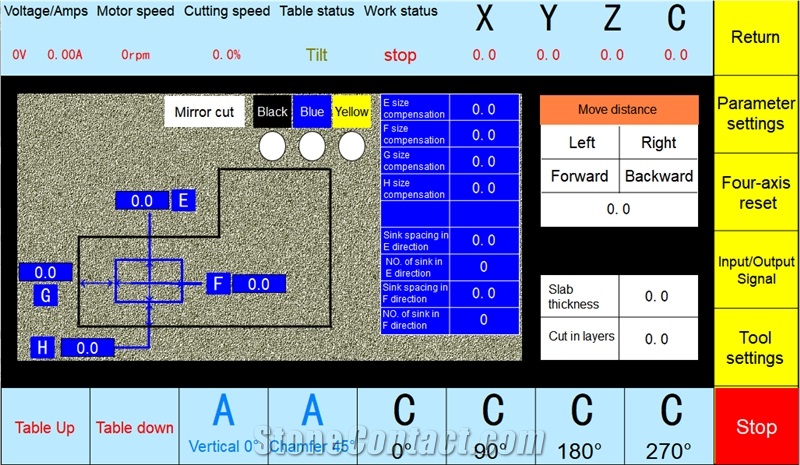

Easy operation system
Low maintenance
With industry heavy duty anti-water wireless controller
Technical Data
Parameters |
Unit |
WSD400M-4 |
Weight |
kgs |
6800 |
Blade size |
mm |
300-400 |
Max miter cutting size |
mm |
3200*2000 |
Main motor power |
KW |
15 |
Water consumption |
M³/h |
4 |
Dimension |
mm |
5900*4000*3200 |
Head rotate degree |
° |
360 |
Table tilt angle |
° |
85 |
Max cutting size |
mm |
3200*2000*50 |
Miter degree |
° |
45 |
Processed Stone Photos
Components
Consumables
