Fickert Frankfurt Automatic Polishin Line Machine For Granite Marble

Name: Fickert Frankfurt Automatic Polishin Line Machine For Granite Marble
Brand: FUJIAN JOBORN MACHINERY CO.,LTD.
SKU: 6969
Price: 86000 USD
Availability: InStock

FOB Price:$86000-180000

Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine

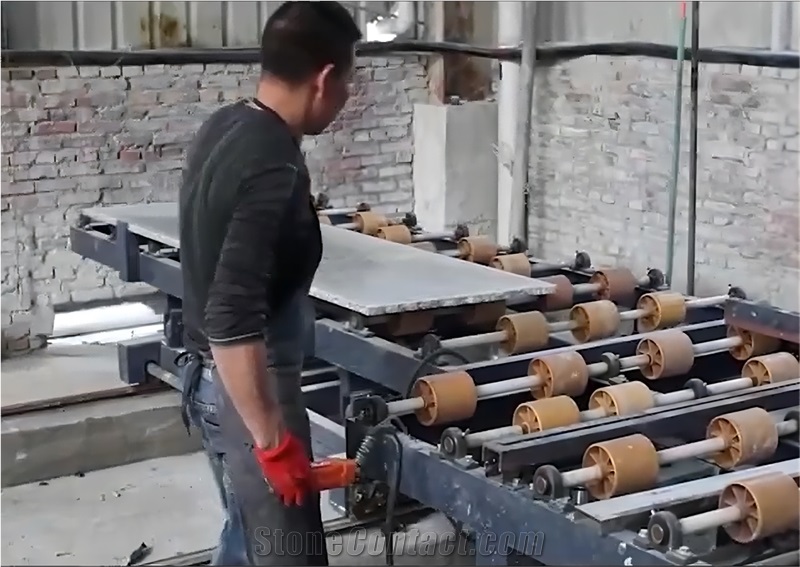

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 30~45 days after prepayment received

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

China level 4YR

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

Automatic Polishing Machine With Resin Grinding Disc(Tile)

SPG1200-12/16/20/24 Slab Polishing Line Machine

Line Polishing Machine For Kerbstone DFL-SM6

Automatic Line Polishing Machine

HLMJD Fully Automatic Marble / Granite Polishing Machine

Product Detail
Company Profile

Overview
Components
Video

Machinery Function Features

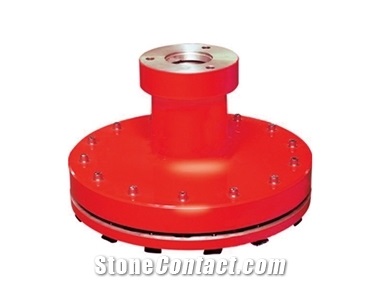

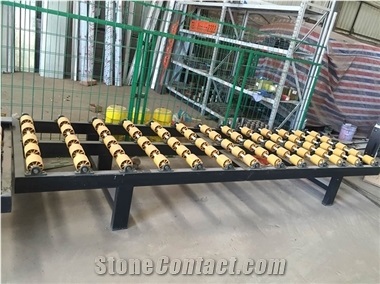

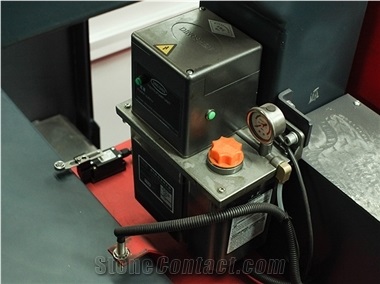

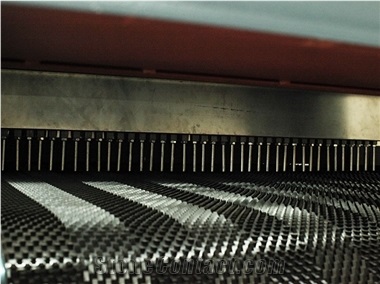

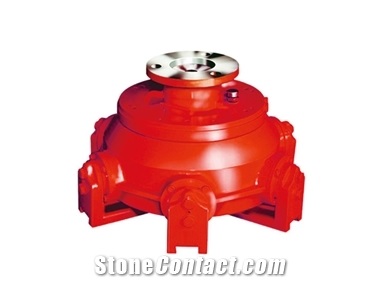

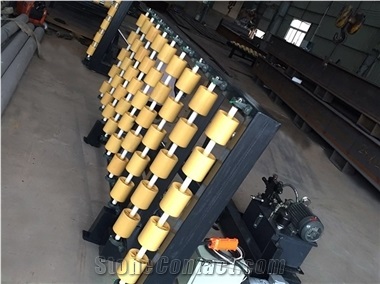

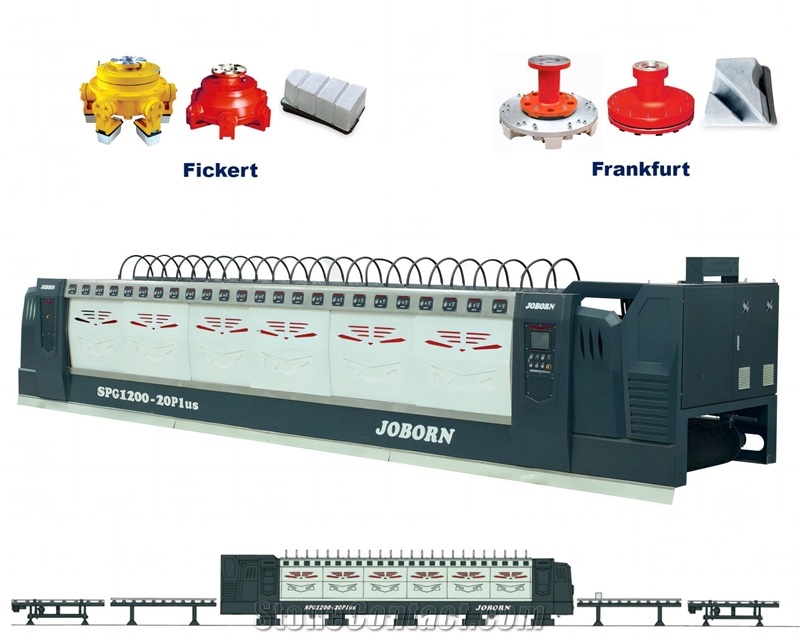

Main Feature: 1.Fickert head for Granite polishing; 2.Frankfurt head for Marble polishing; 3.Side beam heavy type roller; 4.Taiwan famous brand pneumatic components; 5.Patented spindle structure; 6.Humanized human-computer interaction interface; 7.Imported and domestic premium brand electric components; 8.Plate shape detecting deivce; 9.Automatic lubrication system; 10.Roller table(optional); 11.Turnover roller table(optional);

Technical Data

Parameters	Unit	SPG Plus	SPM	SPM Pro	SPM Plus
Total installed electrical power	kw	215~395	135~243	164~296	215~395
Polishing slabs efficiency	m2/h	30~60	30~60	30~60	30~60
Cooling water requirement	m3/h	24~48	12~24	18~36	24~48
Number of abrasives for each plate	nr	6	3	7	9
Slab polishing speed	m/min	1~4	1~4	1~4	1~4
Number of polishing heads/honing units	nr	12/16/20/24	12/16/20/24	12/16/20/24	12/16/20/24
Slabs min. processable thickness	mm	10	10	10	10
Sound pressure level	dB	60~80	60~80	60~80	60~80
Conveyor system forward speed	mm/min	0~4000	0~4000	0~4000	0~4000
Slabs max. processable thickness	mm	60	60	60	60
Machine overall width	mm	2900~4300	2900~4300	2900~4300	2900~4300
Air consumption	m3/h	12~24	12~24	12~24	12~24
Slabs max. processable width	mm	2200	2200	2200	2200
Polishing heads/honing units motor power	kw	15	7.5(11)	11	15
Machine overall height	mm	3000	2200	3000	3000
Slabs max. processable length	mm	3200	3200	3200	3200
Machine overall length	mm	10000/12200/14400/16600	7000/8000/9500/10800	9500/11500/13500/15500	11600/14200/16800/19400

Software

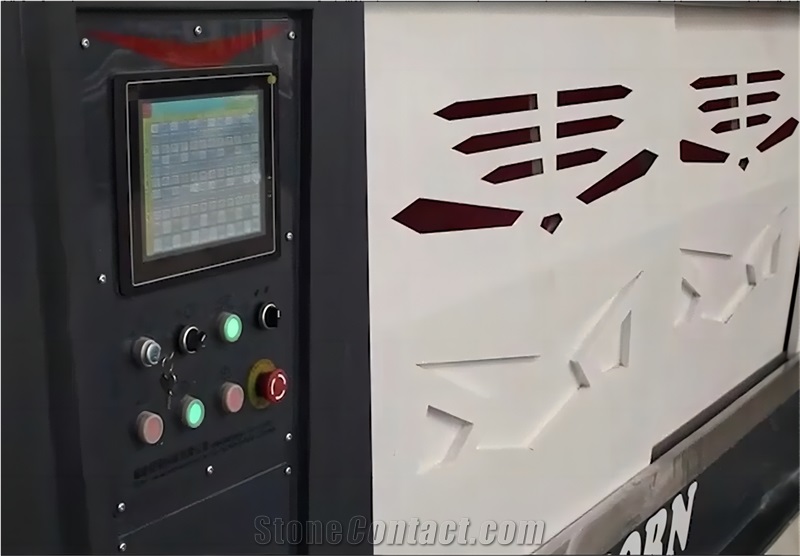

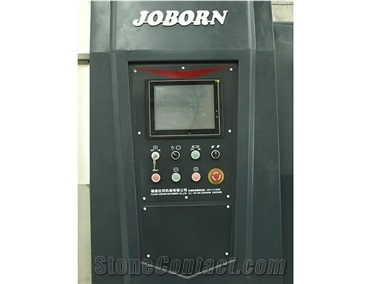

PLC intelligent control system is adopted, and man-machine dialogue is carried out through LCD touch screen to realize intelligent control.

Equipped with automatic avoidance of grinding head and shape memory function, and equipped with anti beating device of conveyor belt, the whole machine has a high degree of automation and low labor intensity.

Work Example

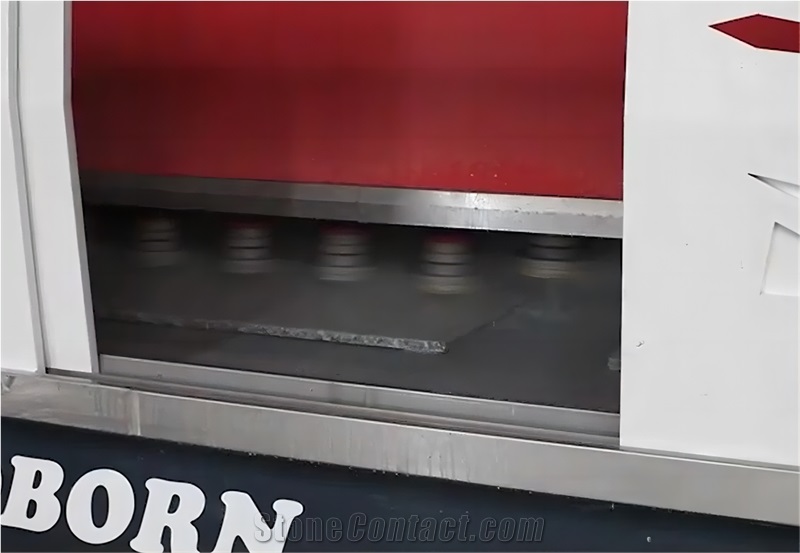

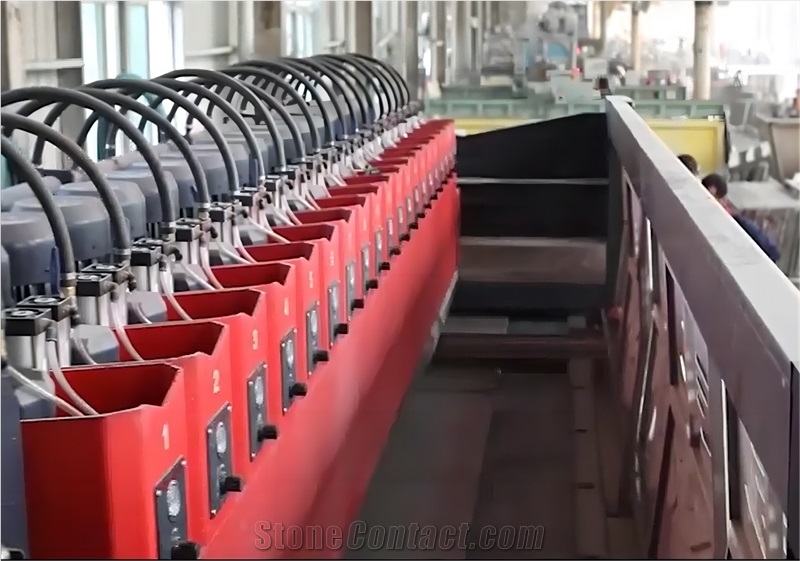

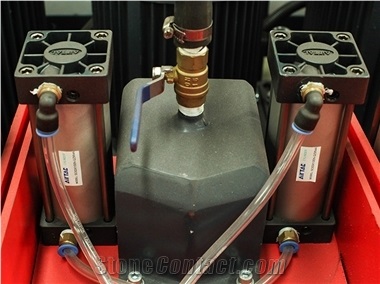

The grinding head is pneumatic lifting, the maximum processing height of the grinding head is 50mm, the grinding head adopts uniform elastic grinding head; Linear rolling guide rails are adopted for moving forward and backward.

Adopt independent patented technology of spindle structure, plate shape detection device, automatic lubrication system;

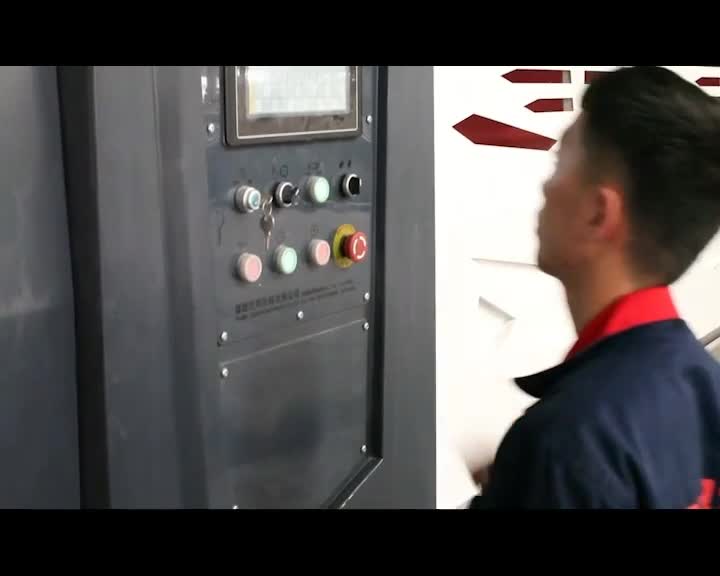

PLC computer operating system, LCD touch screen (10 inches) using Chinese and English operation interface, the use of imported and domestic first-line brands of electrical components, air components of Taiwan Yadeke; The main motor of grinding head is 7.5kW-4P/11kW-4P/15kW-4P;

Processed Stone Photos
