Multi Blade Giant Disc Bridge Saw Stone Block Cutting Machine (16 Pcs)

FOB Price:$29000-35000

Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Saw Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 15~20 days after prepayment received
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

ChinaChina level4YR idicon

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
Machinery Function Features
1.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly,works more stable. 2.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more. 3.Germany Siemens inverter, feeding more stable; imported or domestic famous brand electrical components, with lower failure rate, help you to worry less and save more labor. 4.Side-beam rails use slide V-rail, contacting area is large, not easy to shake when cutting, ensure the plate/slabs are flatness after cutting; meanwhile,the forward and backward slicing take high precision screw-nut transmission, have automatic slicing fuction. 5.It uses hydraulic lifting system, combination of chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life. 6.Revolving working platform (Optional)
Technical Data
Parameters
Unit
SQC2200-4D
SQC2500-4D
SQC2800-4D
Maximum block width
mm
2200
2200
2200
Approximate Weight
Kg
14000
14500
15000
Usefull cutting height
mm
950
1100
1250
Maximum machine width
mm
4400
4400
4400
Disc diameter
mm
2200
2500
2800
Maximum disc stroke
mm
1350
1350
1350
Output
m2/day
120-200
120-200
120-200
Transversal displacement motor power
kw
1.5
1.5
1.5
Machine front dimension
mm
8000*3700
8000*3700
8000*3700
Vertical displacement motor power
kw
4.5
4.5
4.5
Cooling water (1.5 bar pressure)
m3/h
15
15
15
Cut motor power
kw
45
55
65
Installed power
kw
56
66
76
Machine width
mm
4400
4400
4400
Maximum block length
mm
3800
3500
3200
Processed Stone Photos

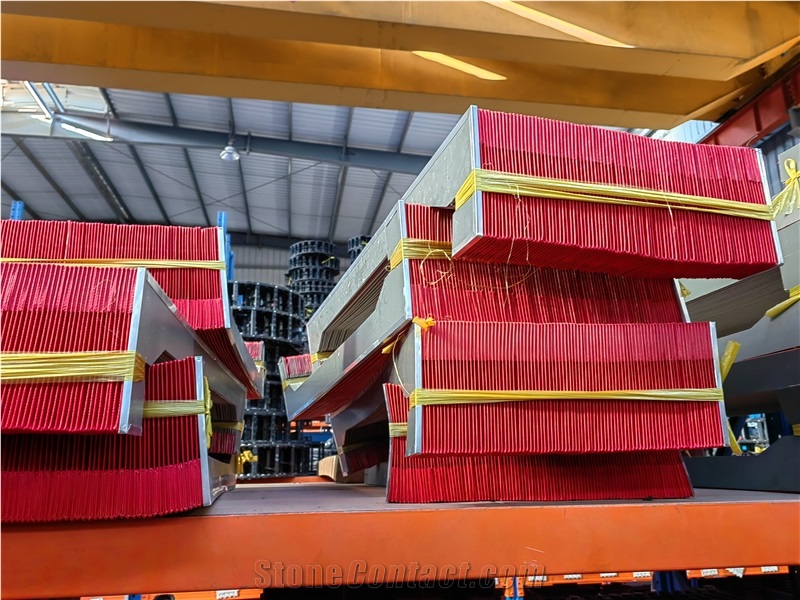

  • dust cover

    dust cover

Components

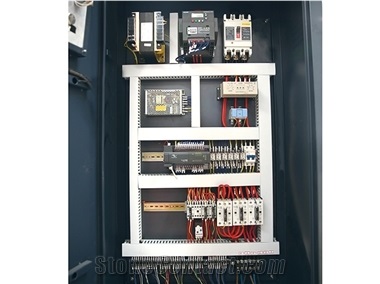

  • electric cabinet

    electric cabinet

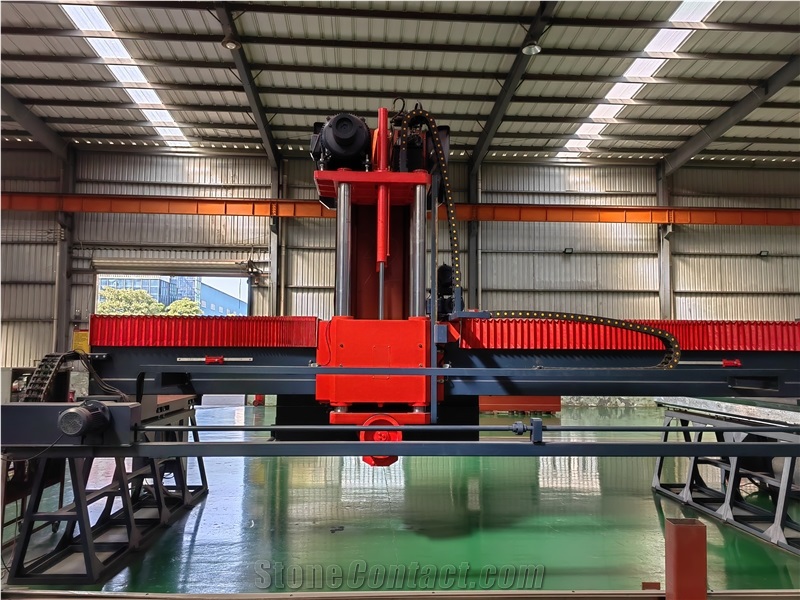

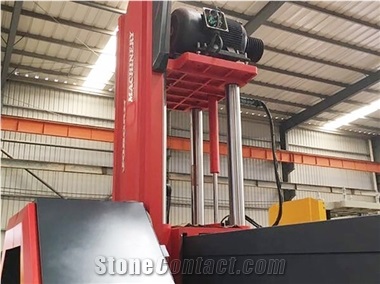

  • guide post

    guide post

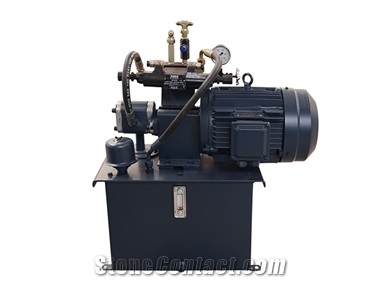

  • hydraulic system

    hydraulic system

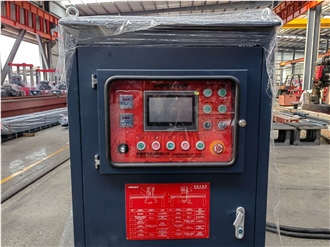

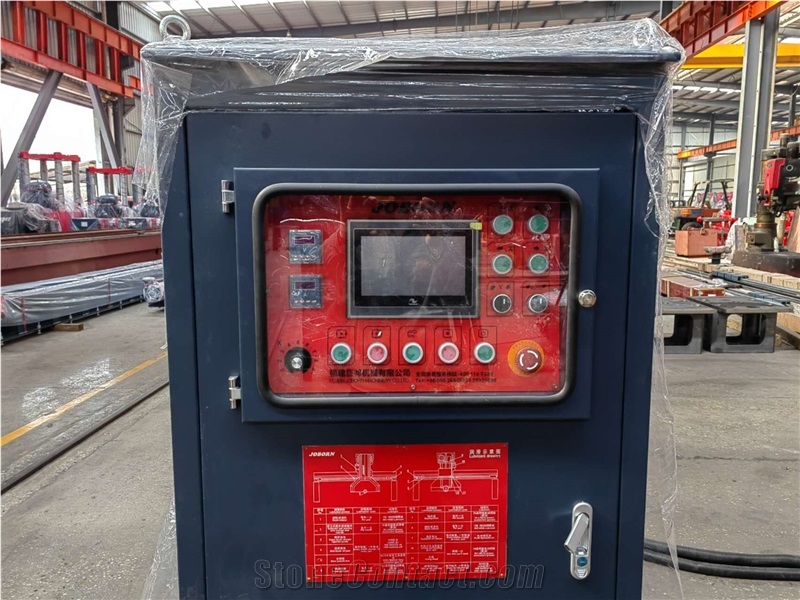

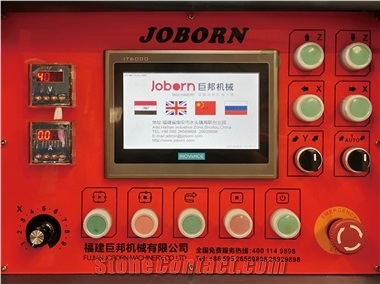

  • control box

    control box

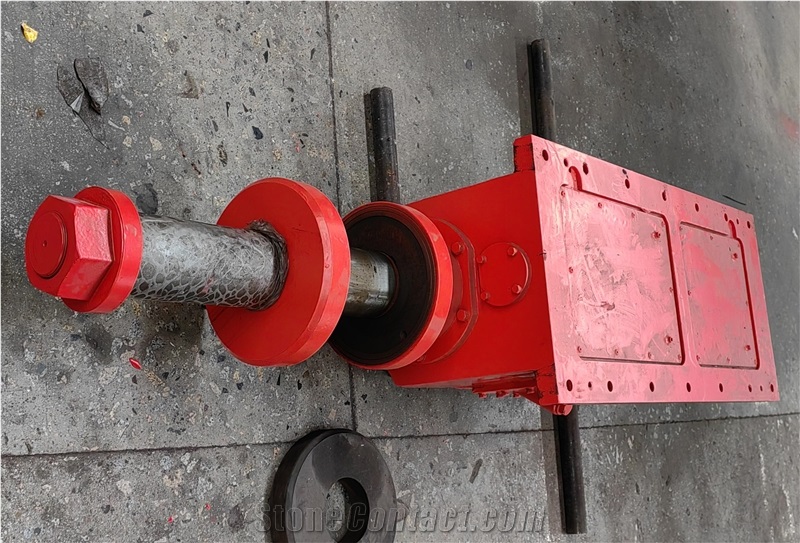

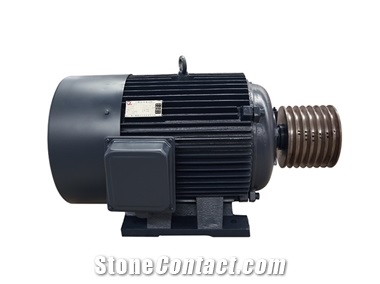

  • main motor

    main motor

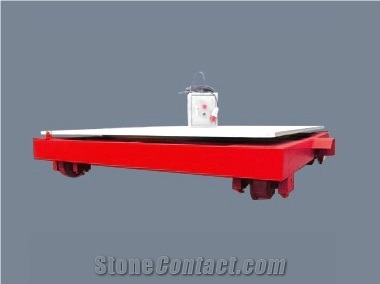

  • feeding table

    feeding table

    ¥Payment Required
Consumables

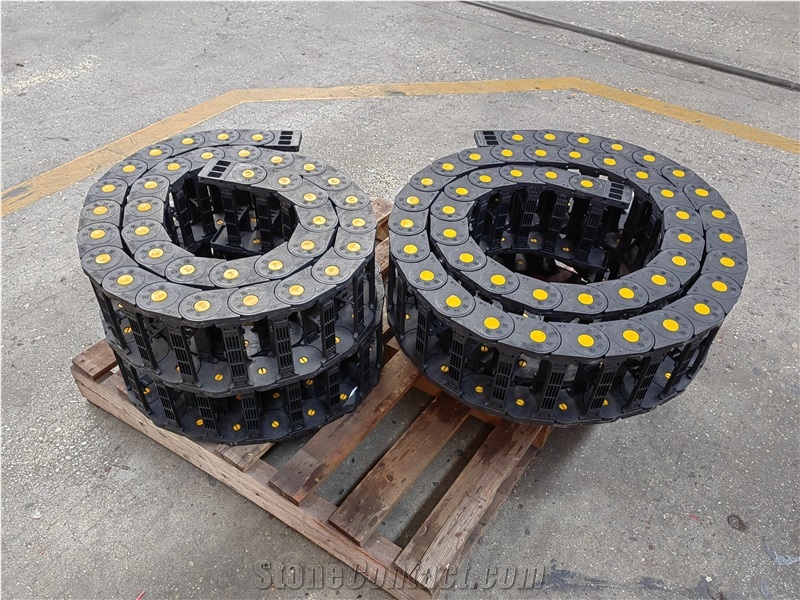

  • wiring & pipeline guide

    wiring & pipeline guide

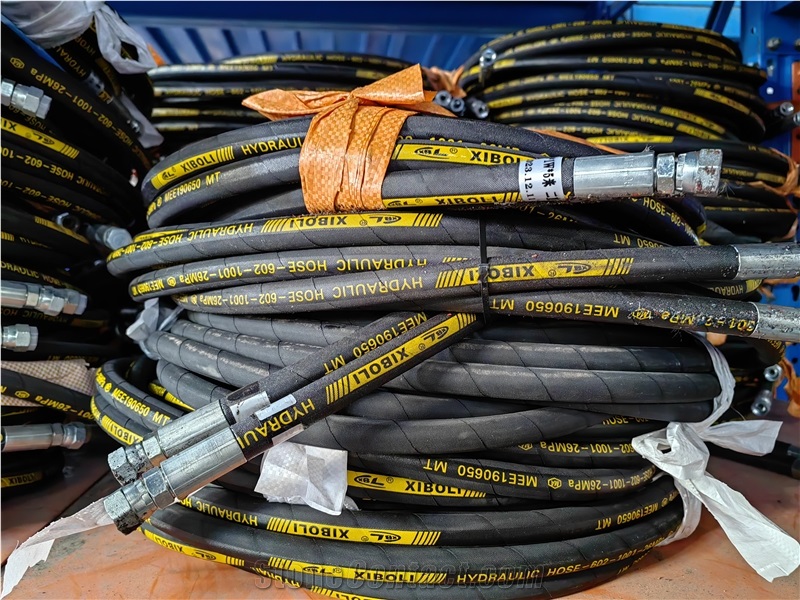

  • hydraulic tube

    hydraulic tube

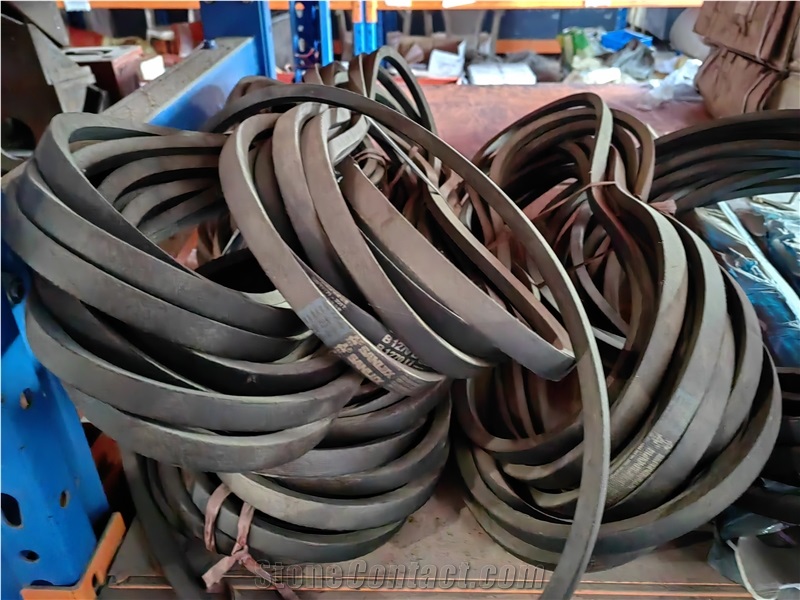

  • triangular belt

    triangular belt
