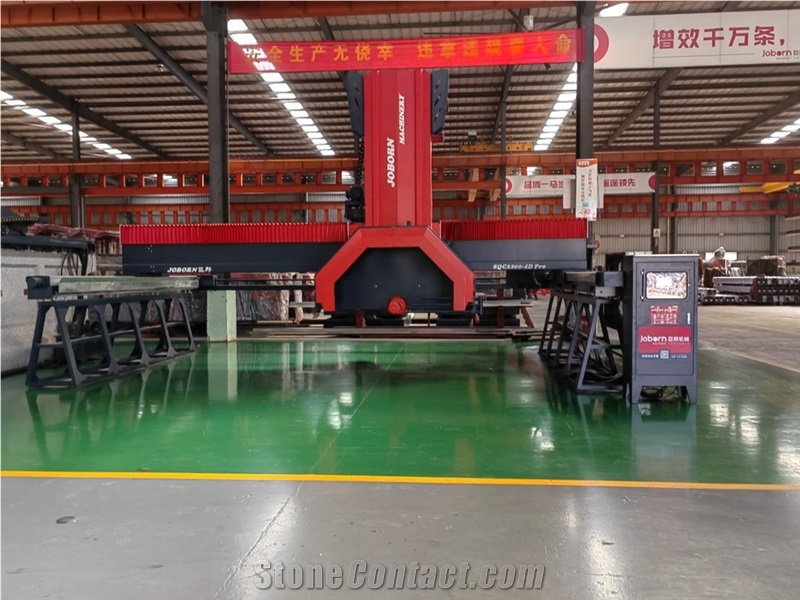

Joborn Stone Bridge Type Multi Blade(16/18 Pcs) Block Cutting Machine

FOB Price:$28500-36800

Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: After receive the payment within 25days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

FUJIAN JOBORN MACHINERY CO.,LTD.
JOBORN MACHINERY

ChinaChina level4YR idicon

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like
DQCM-26-75-B DUAL DRIVE BLOCK CUTTING MACHINE
DQCM-26-75-B DUAL DRIVE BLOCK CUTTING MACHINE
SQC/PC-1600S/1800S/2000S Double-Directions Block Cutting Machine
SQC/PC-1600S/1800S/2000S Double-Directions Block Cutting Machine
Giant Disc Saw Stone Block Cutter Block Cutting Machine - Max 26 Blade
Giant Disc Saw Stone Block Cutter Block Cutting Machine - Max 26 Blade
Stone Bridge Saw Block Cutter Machine With Horizontal Cut
Stone Bridge Saw Block Cutter Machine With Horizontal Cut
Portal Two-Way Stone Block Cutter Giant Disc Bridge Saw Machine
Portal Two-Way Stone Block Cutter Giant Disc Bridge Saw Machine
  • Overview
  • Components
  • Video
  • Customer Case
Machinery Function Features
Machine model : SQC2500-4D Max.processing length : 2500mm Max.processing width : 3800mm Max.lifting stroke : 2200mm Water consumption : 15³/h Power of main motor : 45kw Total power : 56kw Dimension(L*W*H) : 8000*4400*3700mm Weight : 14000kg
Technical Data
Parameters
Unit
SQC2200-4D
SQC2500-4D
SQC2800-4D
Maximum block length
mm
3800
3500
3200
Disch vertical stroke ( Z axis)
mm
1350
1350
1350
Machine width
mm
4400
4400
4400
Installed power
kW
56
66
76
Machine height
mm
3700
3700
3700
Machine length ( front )
mm
8000
8000
8000
Disc motor power
kW
45
55
65
Cooling water (1.5 bar pressure)
㎥/H
15
15
15
Approximate Weight
kg
14000
14500
15000
Disc diameter
mm
2200
2500
2800
Maximum block width
mm
2200
2200
2200
Software

This machine adopts the PLC control system, floor type electric control cabinet, LCD touch screen (7 inches) using Chinese, English, Russian, Arabic, with the best human-computer interaction interface, the operation interface is a combination of touch screen and mechanical button to control the interface, input operating parameters through interface (including cutting size specification, moving speed) Etc), the cutting process is automated and programmed.

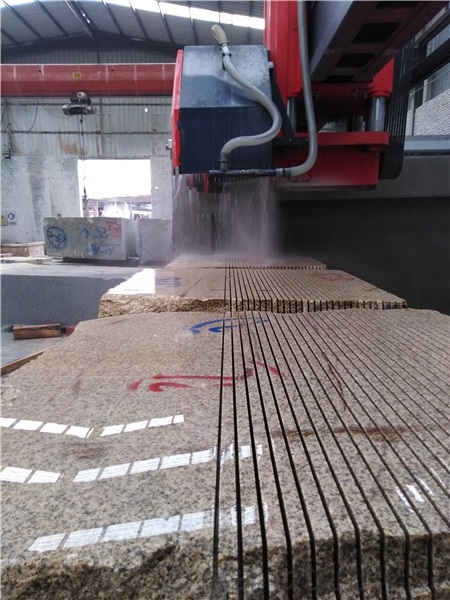

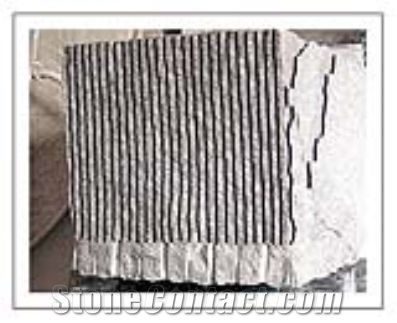

Processed Stone Photos
  • Processed Stone Photos

  • Processed Stone Photos

  • Processed Stone Photos

Components

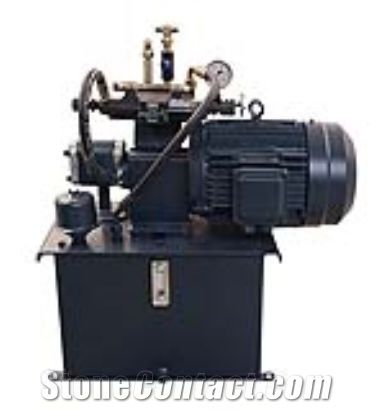

  • hydraulic system

    hydraulic system

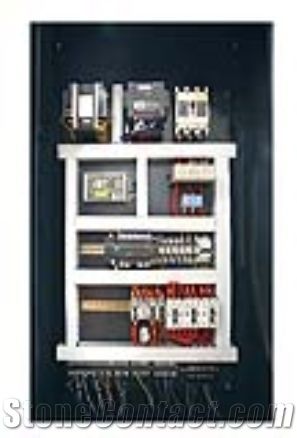

  • electric cabinet

    electric cabinet

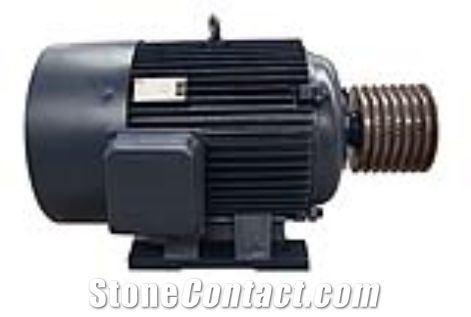

  • main motor

    main motor

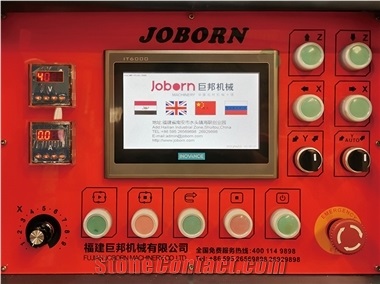

  • control box

    control box

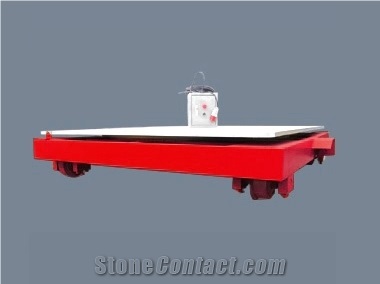

  • feed table

    feed table

    ¥Payment Required
Consumables

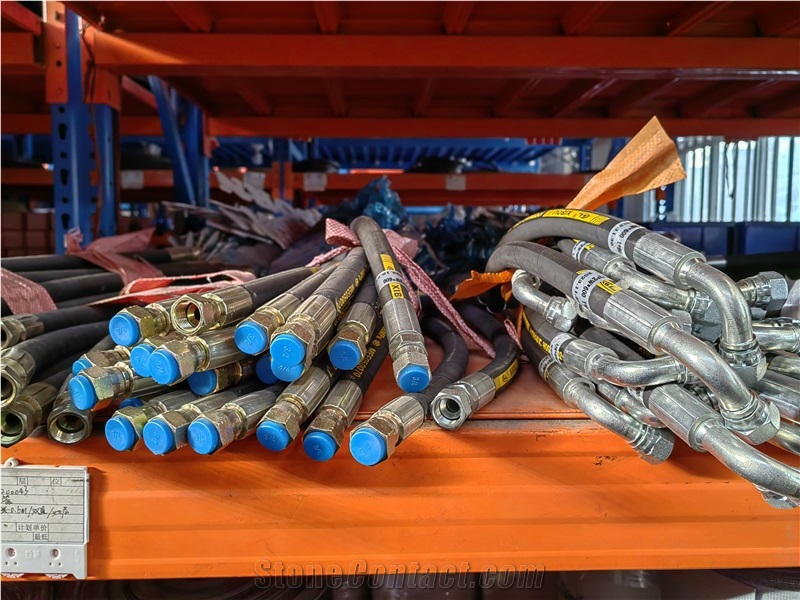

  • hydraulic tube

    hydraulic tube

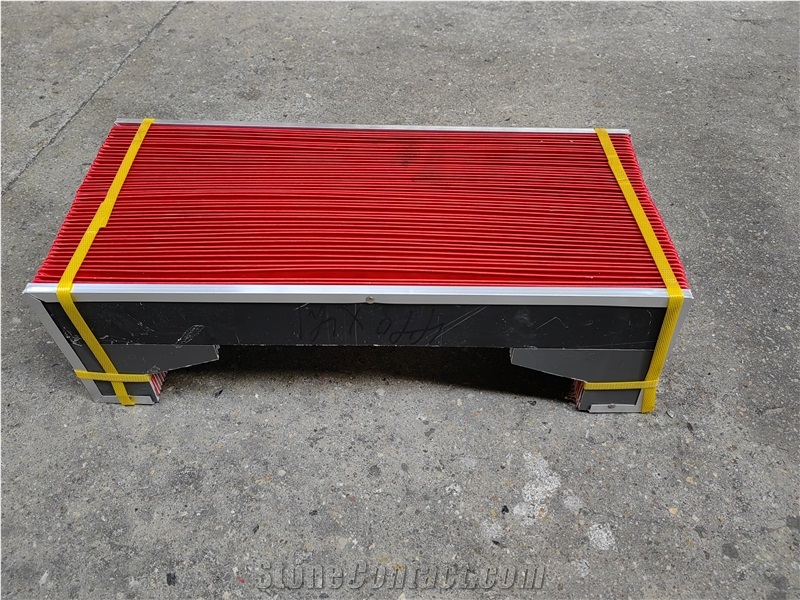

  • dust cover

    dust cover

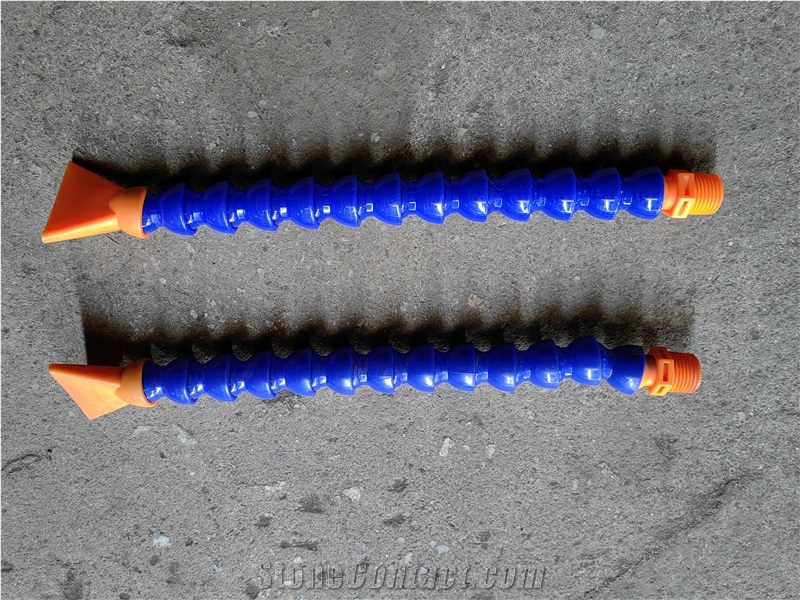

  • universal spray pipe

    universal spray pipe

Customer Case
alexander Russian Federation Russian Federation 2016
Video

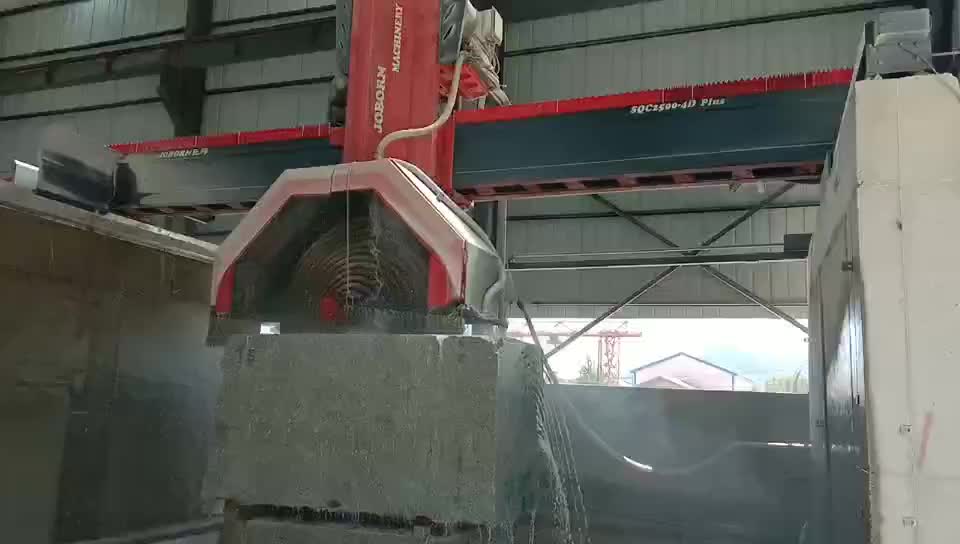

Install Video
