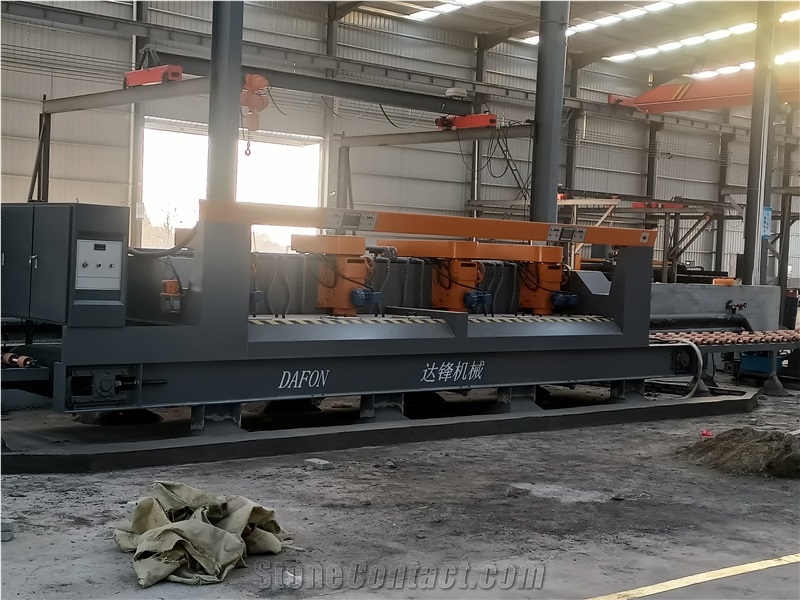

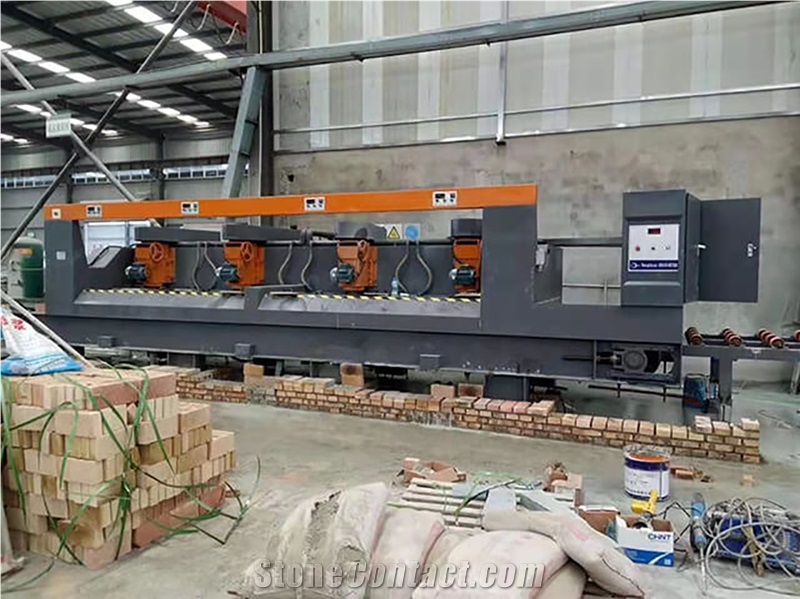

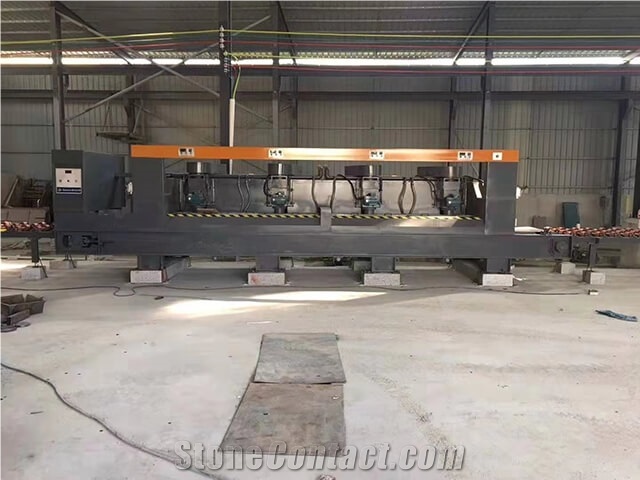

Multi-Disc Stone Calibration Machine
FOB Price:$18000-42000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage:
Granite, Marble, Sandstone
After-Sale
Lead Time:
15 days after receiving deposit
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Feb 06,2023
Main Product:
Kerbstone Cutting Machine, Kerbstone Chamfering Machine, Granite Block Cutting Machine, Granite Slabs Cutting Machine, Marble Cutting Mahcine, Stone Slabs Polishing Machine|
Machinery Function Features
This equipment can effectively eliminate the stone surface blade mark to avoid the formation of waves on the surface of the slab, the finished product has high flatness, and uniform thickness, suitable for stone plates and other fixed-thickness treatments that can be composed of assembly lines with automatic polishing machine.
Technical Data
Parameters |
Unit |
DFB-Y1250（2T） |
DFB-Y1250（4T） |
DFB-Y1250（6T） |
Working width |
mm |
300-1250 |
300-1250 |
300-1250 |
Working thickness |
mm |
10-50 |
10-50 |
10-50 |
Grinding head motor power |
kw |
22/30 |
22/30 |
22/30 |
Water consumption |
L/min |
150 |
160 |
180 |
Weight |
kg |
6800 |
12000 |
18000 |
Calibrating heads |
No. |
2 |
4 |
6 |
Overall dimensions (L*W*H) |
mm |
4500*2300*2200 |
8580*2300*2200 |
11580*3530*2200 |
Work Example
Processed Stone Photos

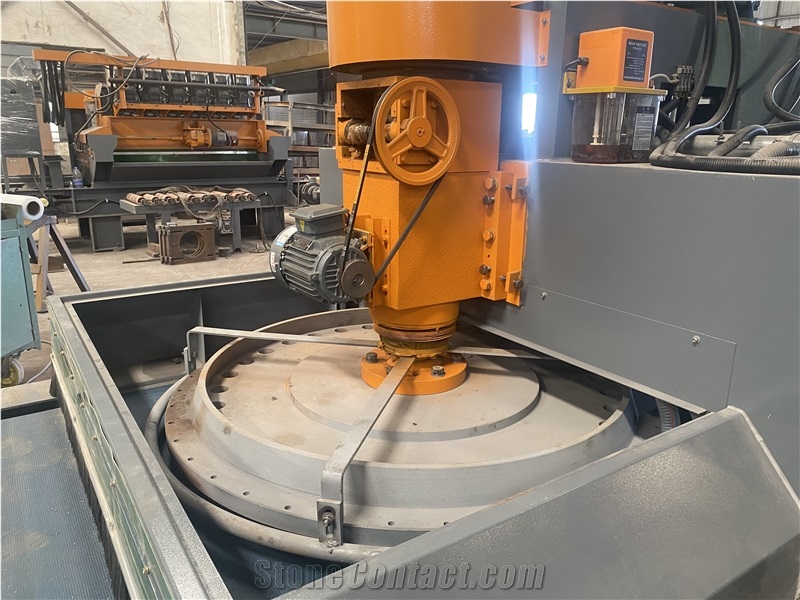

Components
-
disc
Consumables
Video
Install Video
