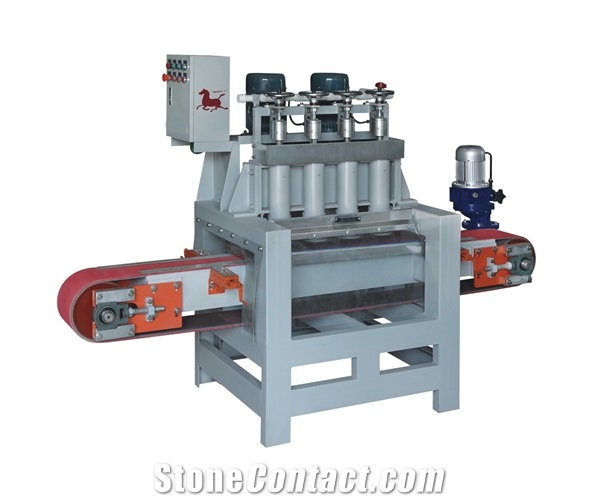

Four Heads Calibration Machine
FOB Price:$6700-7300
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage:
Granite, Marble
After-Sale
Lead Time:
within 25-35 days after received deposit
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :




Machinery Function Features
This machine using barrel with patented technology,reasonable structure design grinding thick set of high efficiency,solve the long-standing thick stone production companies given the low efficiency problem difficult to hire workers ,and fast processing speed effectively reduce costs,master chuan move using cycloid reducer frequency control,you can manually add pneumatic lift or trimming to achieve highly accurate control of grinding down,and thickness accuracy,high efficiency.
Technical Data
Parameters |
Unit |
TJPGD-150 |
Diameter of calibrating tool(abrasive) |
mm |
Ø170 |
Approx. Weight |
Kg |
500 |
Spindle Motor Power |
kw |
4 |
Maximum Width |
mm |
150 |
Belt advancement speed |
m/min |
1-6 |
Belt width |
mm |
200 |
Dimension |
mm |
2500*1900*1700 |
Total power installed |
kw |
8.75 |
Maximum Thickness |
mm |
30 |
Spindle Head |
pcs |
4 |
Conveyor belt power |
kw |
0.75 |
