Levibreton ONE PLUS Single-spindle polishers
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Single Head Polishing Machine
Usage:
Granite, Marble, Limestone
After-Sale
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Trade Terms
Delivery Details: FOB
Payment :

Supplier

Breton S.p.A.
Italy
Eatablished :Dec 31,1962
Main Product:
Stone Machines, Cutting Machine, Polising Machine, Wire Saw, Cnc Machines|
Machinery Function Features

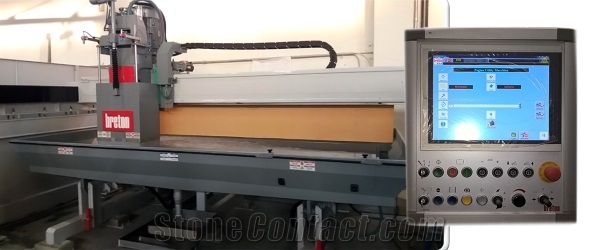

LEVIBRETON ONE PLUS
The simple and sturdy machine for processing marbleand granite slabs, has evolved in electronics and in software
The simple and sturdy machine for processing marbleand granite slabs, has evolved in electronics and in software.
- Wide touchscreen panel
- Easy interface, user-friendly

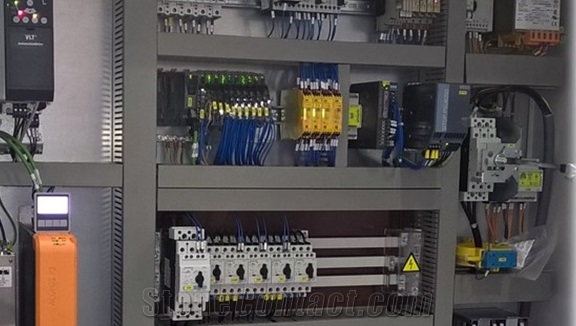

- Use of brushless engines and latest version available digital electronics
- Thanks to the latest generation PC, remote diagnostic is possible too.
NEW INTERFACE AND UTILITIES
- Selectable path for different materials/finishing treatment
- Possibility to set the step in a very simple way
- Possibility to set the speed
- Possibility to set the radius instead of the angle for the polishing path
- Possibility to set number of runs at the beginning and at the end of the slab
- Possibility to store slab dimension
- Full control of all the parameters
- User friendly icons in order to help the operator
IT RAISES IN POLISHING QUALITY
Thanks to the brushless motors, it moves in a very fluid and simple way, because the axes are always «in torque». Acceleration ramps and decelaration ramps are perfectly controlled, without pitches or stickings.
You have a huge reduction of the «shades phenomenon» with the rounding inversion path function.
If the machine is supplied with the camera accessory (optional), the processing of very irregular slabs becomes easier.
The possibility to save some processing «recipes» (polishing path sequences, connected to working parameters) helps the operator, which can use well known parameters for different types of material, gaining in machine set up times and in result constance.

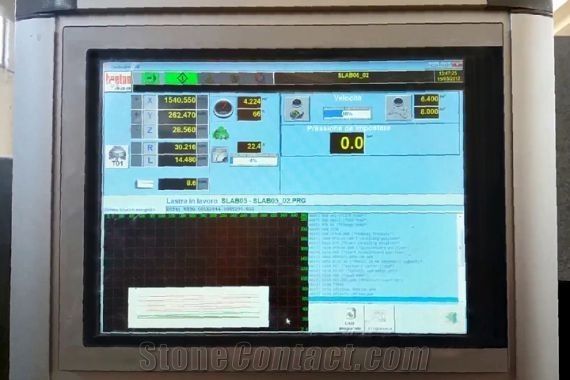

Thank to the synoptic that shows the head travel on the screen, you have an always under control system without the operator stopping the machine or moving dangerously close to the working area.
Technical Data
Parameters |
Unit |
Levibreton ONE PLUS |
Polishing head vertical travel |
mm |
160 |
Slabs max. processable width |
mm |
2200 |
Slabs min. processable thickness |
mm |
10 |
Slabs max. processable length |
mm |
3500 |
Diameter of polishing heads/plates |
mm |
460-510 |
Number of polishing head |
nr |
1 |
Slabs max. processable thickness |
mm |
115 |
Power of single polishing head |
kW |
15 |
Sound pressure level |
dbA |
80 |
