Levibreton One Reloaded Single-head polishing machine
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Single Head Polishing Machine
Usage:
Granite, Marble
After-Sale
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Delivery Details: FOB
Payment :

Supplier

Breton S.p.A.
Italy
Eatablished :Dec 31,1962
Main Product:
Stone Machines, Cutting Machine, Polising Machine, Wire Saw, Cnc Machines|
Machinery Function Features
LEVIBRETON ONE RELOADED - AUTOMATION AND QUALITY ALSO FOR SMALL SCALE PRODUCTION
The Levibreton One Reloaded is a highly evolved automatic machine designed specifically for professionals working with limited volume.

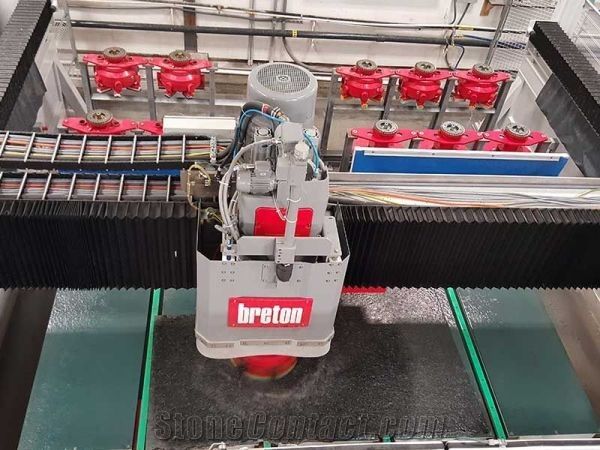

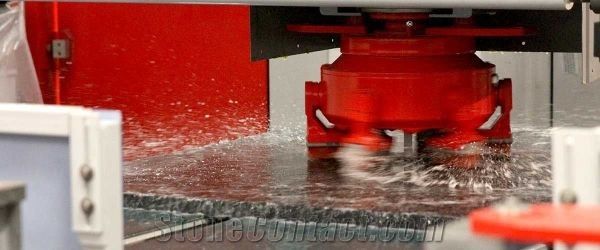

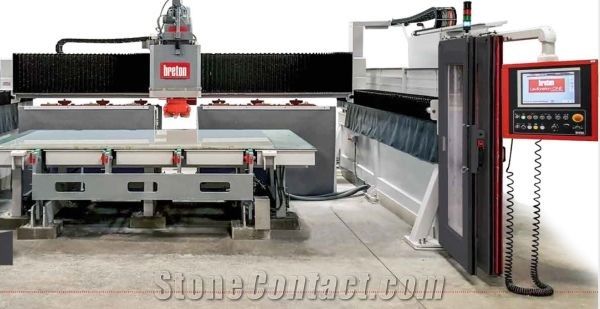

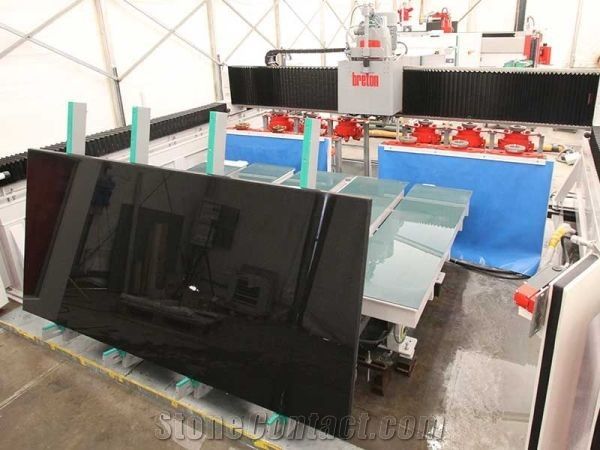

Levibreton One Reloaded is a single-head polishing machine for marble and granite with an automatic heads changer. The machine is derived from the Levibreton One, which has been widely installed, consistently proving a firm favourite among our customers.
levibreton-one-reloaded
With Levibreton One Reloaded the operator simply launches the polishing program and the machine will run it automatically and completely unattended; the machine is equipped with a sensor to monitor abrasive wear and a laser tool to plot the shape to be machined.

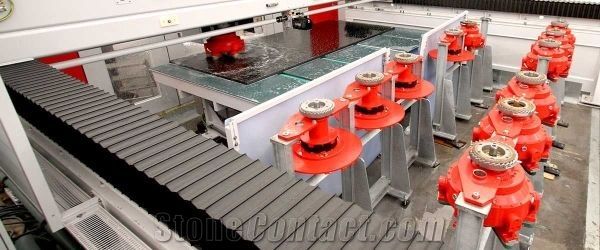

The heads magazine has 12 positions and can be equipped with oscillating bricks for granite or Frankfurt abrasive plates for marble. The machine can be supplied with a tilting table on request.
The control panel for work cycle programming features a simple and intuitive user interface. The software includes multiple work cycles (polishing, levelling, bush-hammering, brushing, sawtooth pattern, chequer pattern…).
Technical Data
Parameters |
Unit |
LVB1R-8 |
LVB1R-12 |
Travel motor power |
kW |
2.75 |
2.75 |
Sound pressure level |
dbA |
80 |
80 |
Structure travel speed |
mm/min |
32.000 |
32.000 |
Slabs max. processable length |
mm |
3500 |
3500 |
Power of single polishing head |
kW |
15 |
15 |
Slabs min. processable thickness |
mm |
10 |
10 |
Diameter of polishing heads/plates |
mm |
510-460 |
510-460 |
Slabs max. processable thickness |
mm |
115 |
115 |
Machine overall width |
mm |
7200 |
7200 |
Polishing head vertical travel |
mm |
160 |
160 |
Approx. Weight |
Kg |
6800~ |
6800~ |
Spindle beam travel speed |
mm/min |
32.000 |
32.000 |
Number of polishing head |
nr |
8 |
12 |
Machine overall height |
mm |
2700 |
2700 |
Spindle beam motor power |
kW |
1.2 |
1.2 |
Slabs max. processable width |
mm |
2200 |
2200 |
Machine overall length |
mm |
6600 |
6600 |
