X400A B Intelligent Bridge Saw
FOB Price:$19000-20000
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
60 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
You may also like
Machinery Function Features

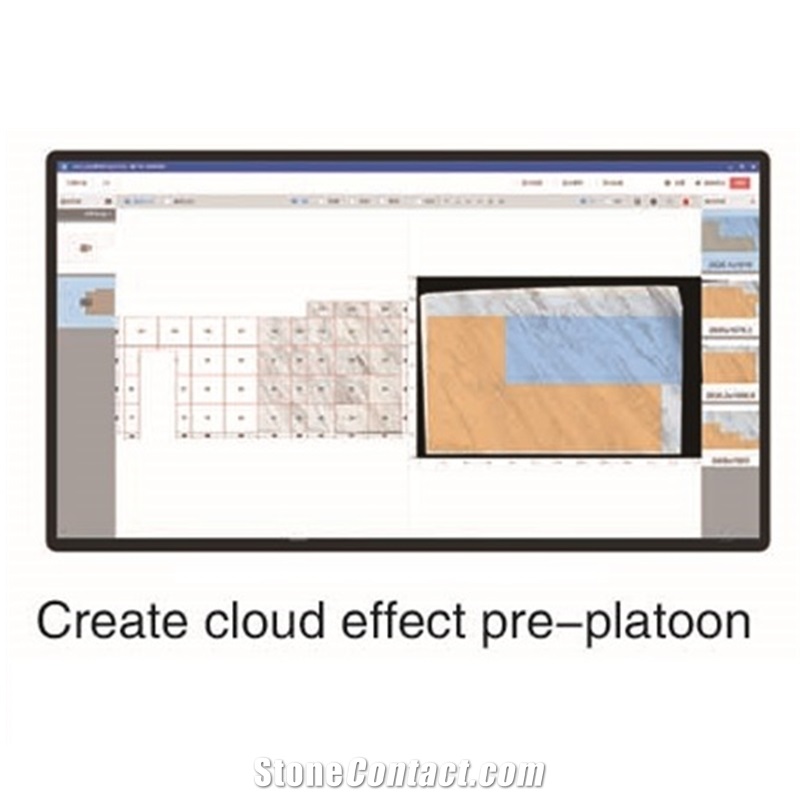

This series of equipment is mainly used for marble and other high-end natural stone automation (cutting), with CAD automatic billing, fine grain pre-typesetting and other powerful functions, automatic cutting, automatic plate, save time, labor, material, intelligent cutting.
Technical Data
Parameters |
Unit |

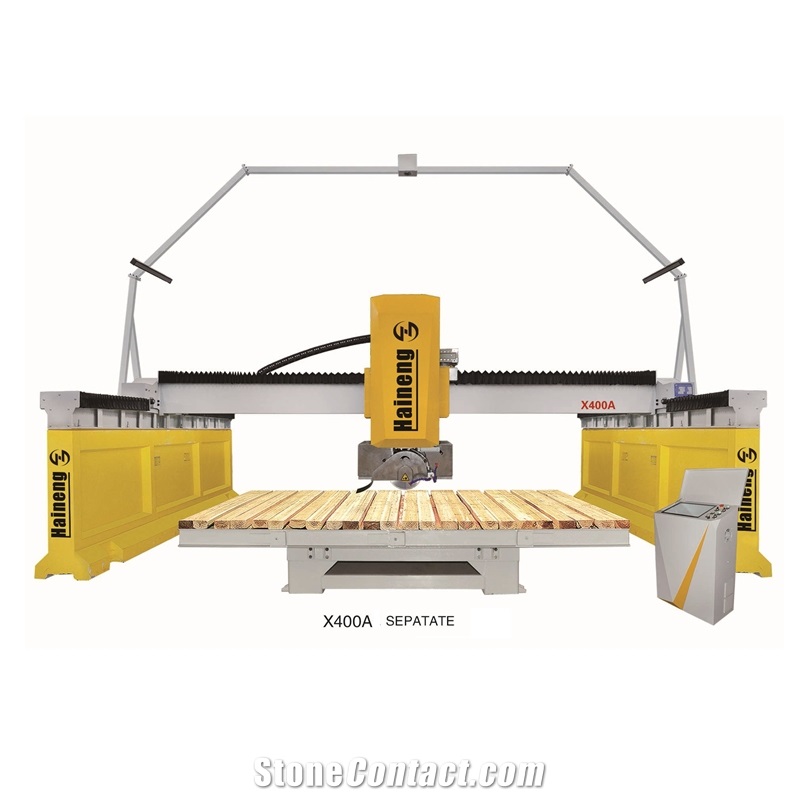

Separate X400A |

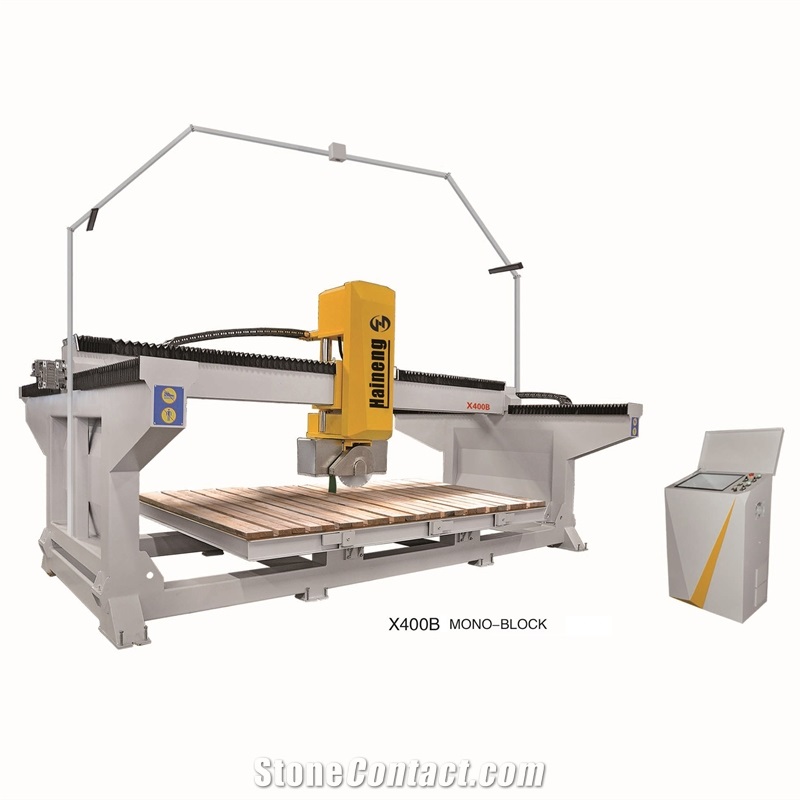

Mono-block X400B |
Horizontal rotation Angle of saw blade |
n° |
0-90° |
0-90° |
Size of work table |
mm |
3700×2500 |
3700×2500 |
Automatic labeling |
Standard configuration: available (optional) |
Standard configuration: available (optional) |
|
Table turning Angle |
n° |
0-85° |
0-85° |
Total power |
kw |
20.2 |
20.2 |
Overall dimensions |
mm |
6500×4700×4500 |
6500×3800×4500 |
Host frequency conversion |
Optional |
Optional |
|
Main motor power |
kw |
15 |
15 |
Maximum cutting size |
mm |
3700×2500×80 |
3700×2500×80 |
Water consumption |
m³/h |
3,5 |
3,5 |
Sucker transfer plate |
Standard configuration: Yes |
Standard configuration: Yes |
|
Total machine gross weight |
kg |
8500 |
4500 |
Table rotation Angle |
n° |
Default: None (optional) |
Default: None (optional) |
Diameter of saw blade |
mm |
Φ300-400 |
Φ300-400 |
Photo taking function |
Standard configuration: Yes |
Standard configuration: Yes |
|
Whether the mall can be connected |
Standard configuration: available (optional) |
Standard configuration: available (optional) |
Processed Stone Photos
Components
-

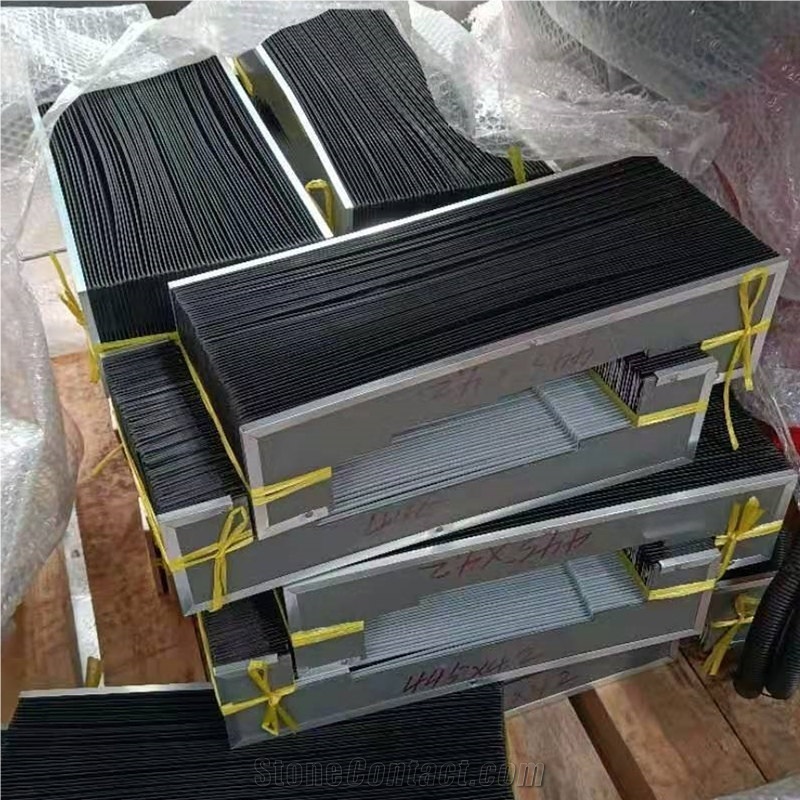

dust cover
¥Payment Required
Consumables
-

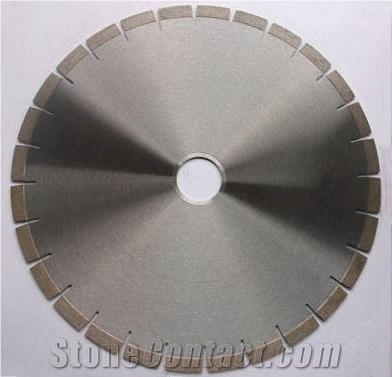

saw blade
Video
Install Video

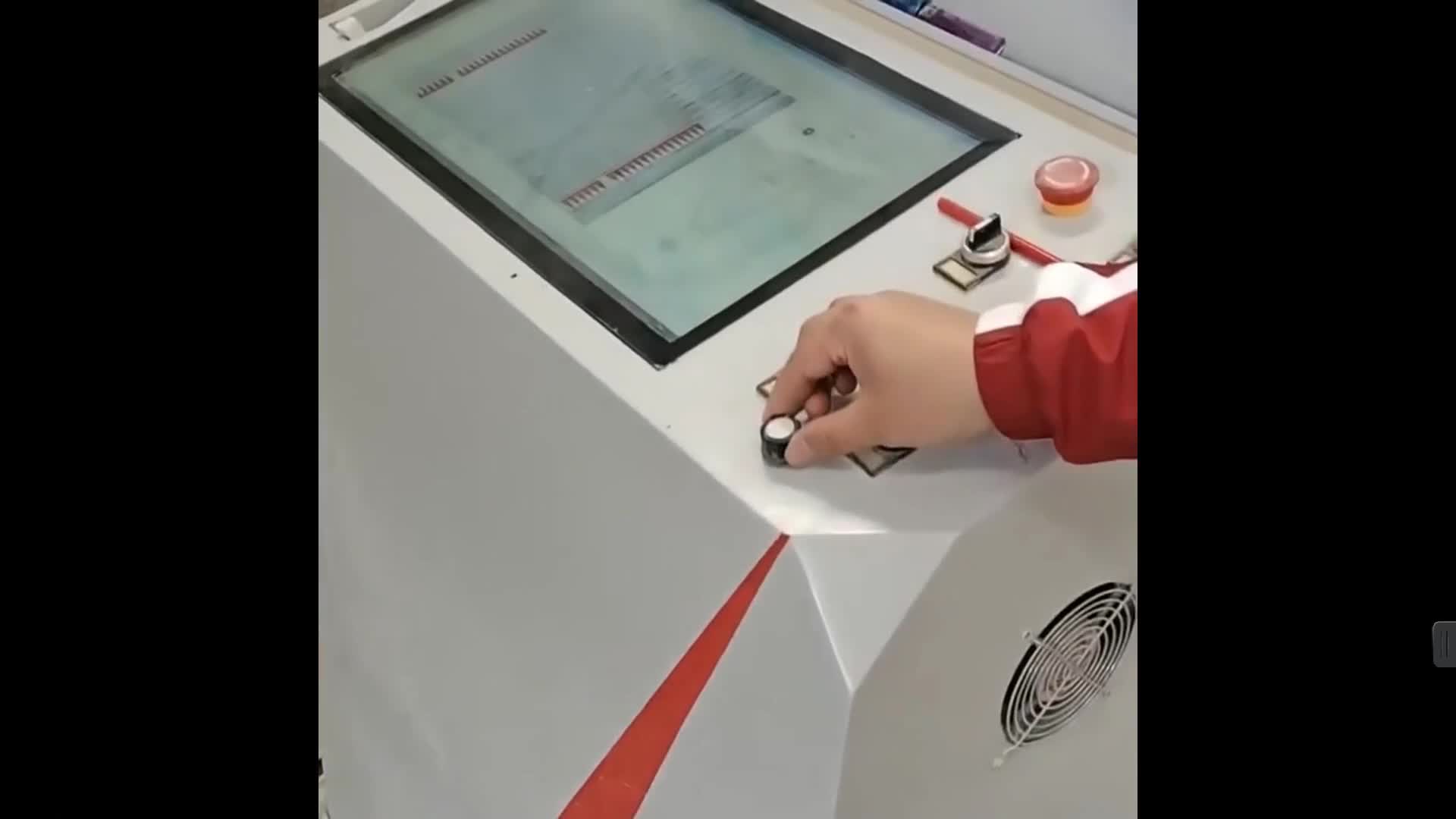

Operation Video
