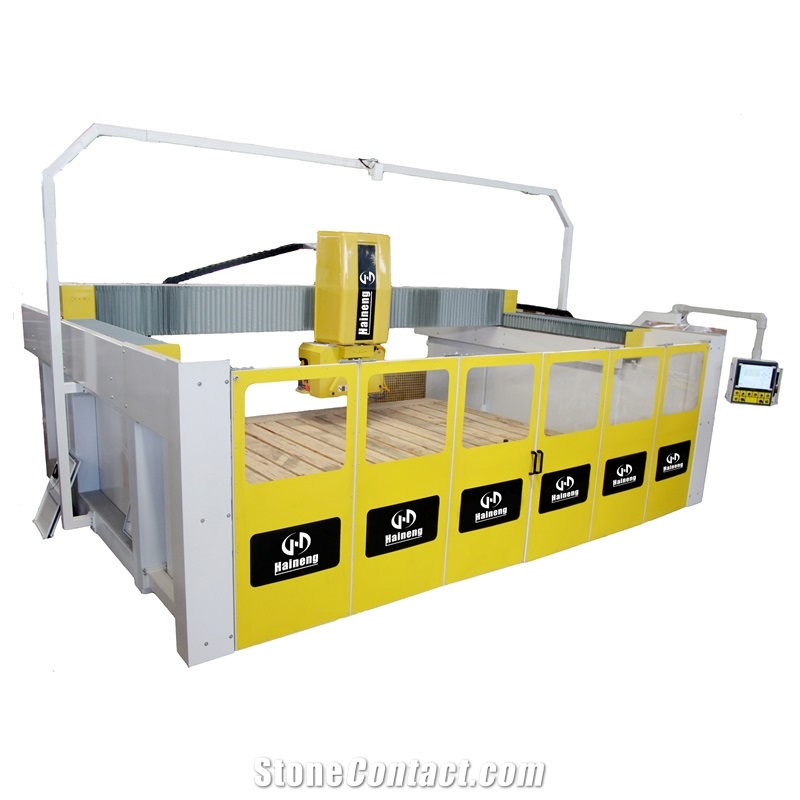

WZQ-500 Multi Function CNC 5 Axis Bridge Saw

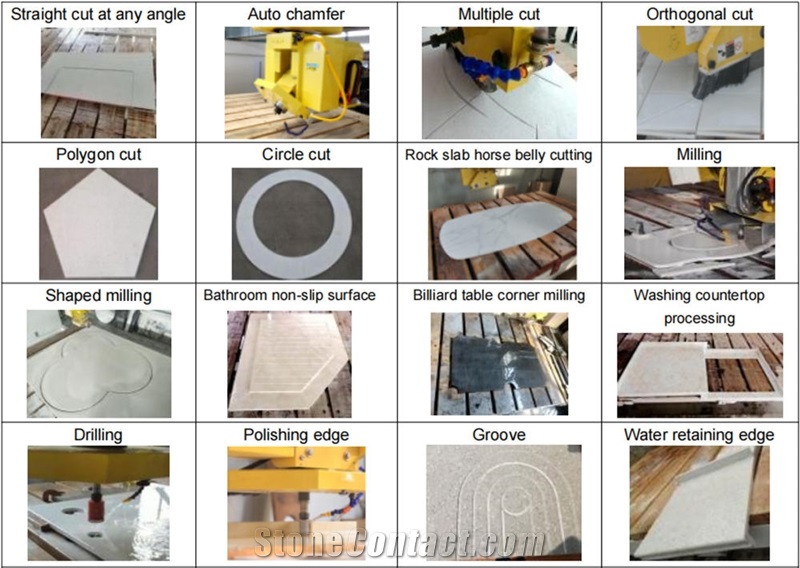

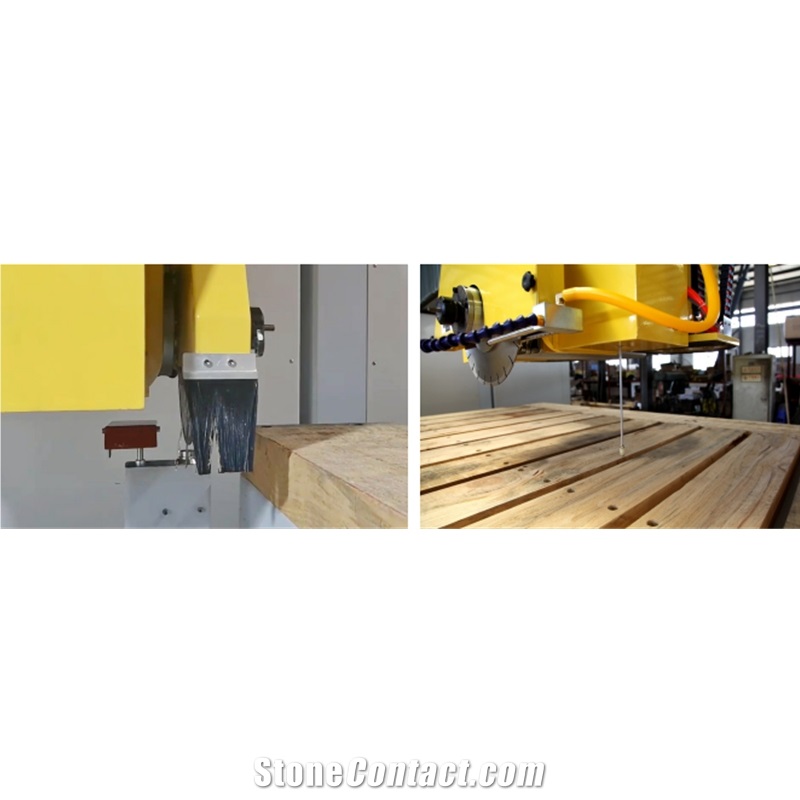

It is a new generation of 5axis Monoblock Bridge Saw with Vacuum Manipulation,Camera on Board,Tool Presetting,Slab Thickness Probe,Milling&Coring via collet on tilting head,advanced intelligent and synchronous CNC control system. Its powerful 11kw/15Hp main spindle with adjustable speed from 1000-6500rpm featuring tooling collet attachment provides a wide array of tasks using coring bits and router bits. Easy to use touch screen interface allowing quick and easy programming of simple jobs or programs imported via DXF. Vacuum manipulation on head is a must on any new bridge saw,it allows you to start the program and have a slab completely cut and moved on the table without the operator having to stop machine to move away. Real-time on board camera allows you to position the programmed pieces precisely over the area of the slab that requires cutting. Slab Thickness Probe can measure slab’s thickness automatically. Tool Presetting can auto measure the diameter of blade or milling cutter Its head can rotate 360°and chamfer 0-90°. It can cut,drill,slot,dig round,mill,profile edge, slash cutting and other multi-functional integration.It is suitable for quartz stone, rock slab, artificial stone, granite, marble and other large, medium and small stone decoration projects.
