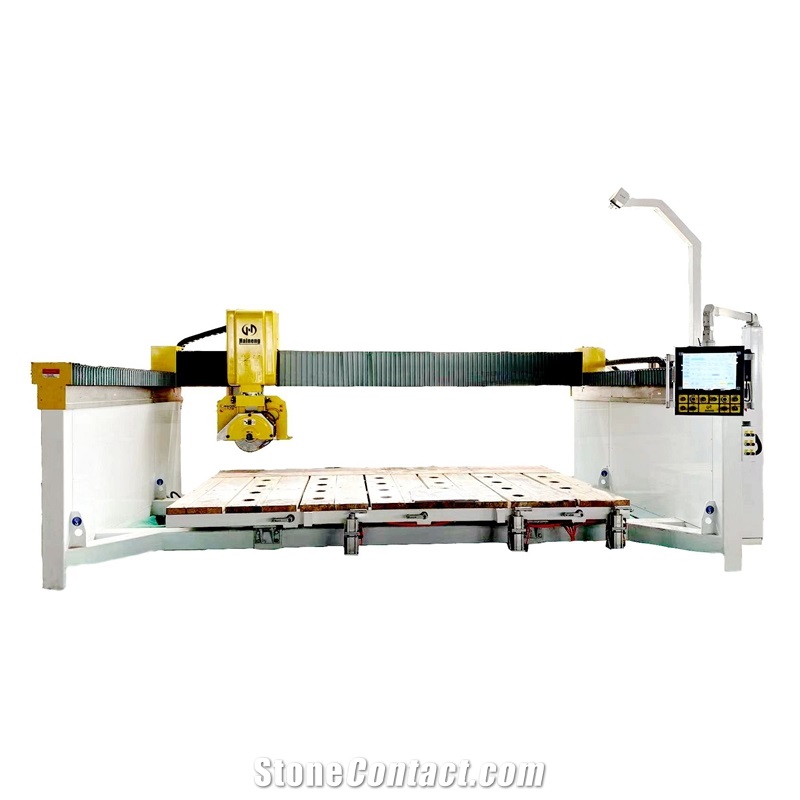

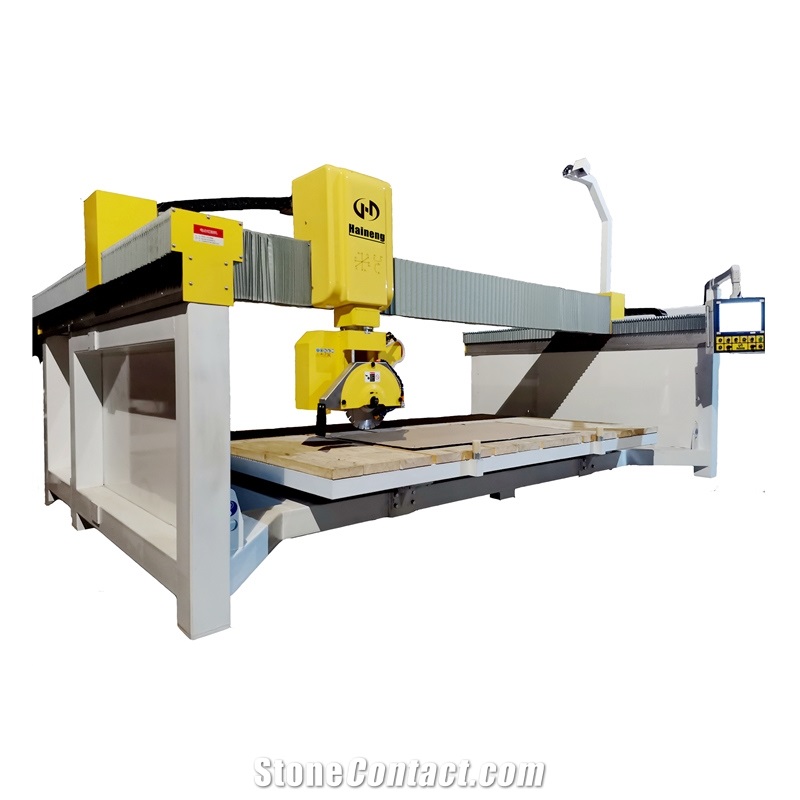

WZQ-400 Multi Function CNC 5 Axis Stone Bridge Cutting Machine
FOB Price:$32500-35500
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
50 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

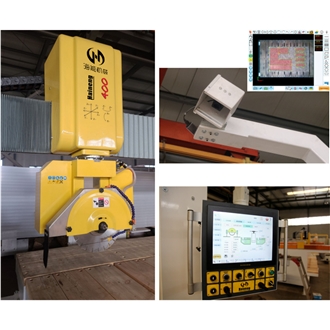

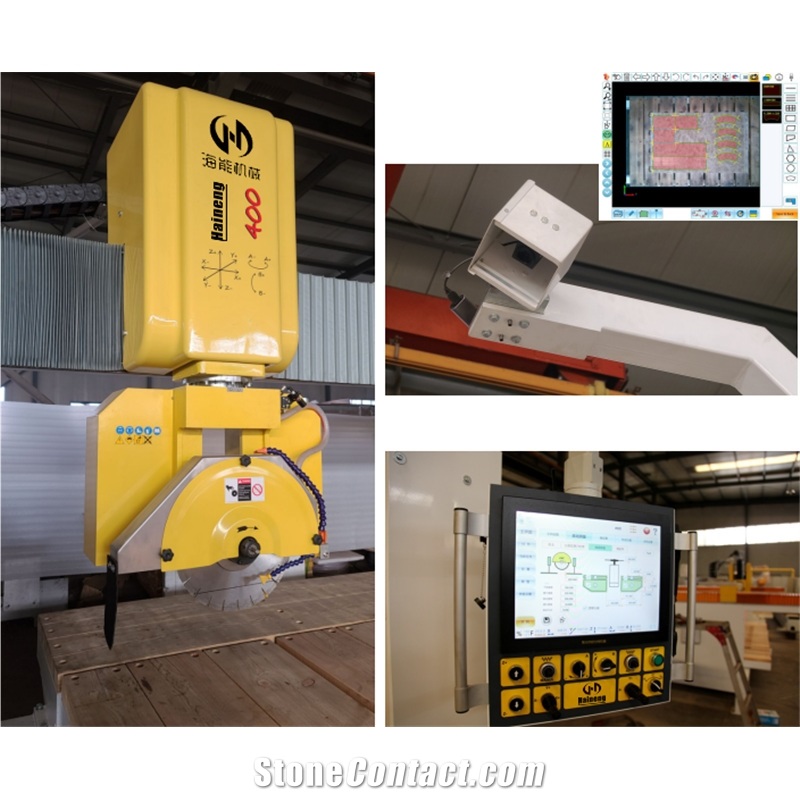

Machinery Function Features
It is the new generation multi-function processing machine. With pattern operation and advanced control system and synchronous CNC control system, the machine can be easily operated easily without knowing complicated CNC knowledge. This machine can be used to realize some advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to small processing factory and countertop shops.
Technical Data
Parameters |
Unit |
WZQ-400 |
Stroke of Z axis |
mm |
450 |
Point imaging |
YES |
|
Camera capture layout |
yes |
|
Programming method |
CAD & manual |
|
Voltage/frequency |
380v-3phase,50Hz |
|
Cutting speed of Y axis |
mm/min |
1-12000 |
Cutting speed of X axis |
mm/min |
1-15000 |
Overall size(LxWxH) |
mm |
5750x3050x3200 |
Stroke of B axis |
0-90degree |
|
Dia. Of diamond blade |
mm |
400 |
Spindle of main shaft |
rpm |
1000-6000 |
Stroke of A axis |
360 degree |
|
Stroke of X axis |
mm |
3500 |
Packing size(LxWxH) |
mm |
5500x2100x2100 |
Cutting speed of Z axis |
mm/min |
1-2000 |
Stroke of Y axis |
mm |
2000 |
Weight |
kg |
4300 |
Max.cutting thickness |
mm |
80 |
Bore size of blade |
mm |
50 |
Main motor power |
kw |
7.5 |
Rotating speed of A axis |
R/min |
0-7 |
Tilting workbench |
80 degree tilting |

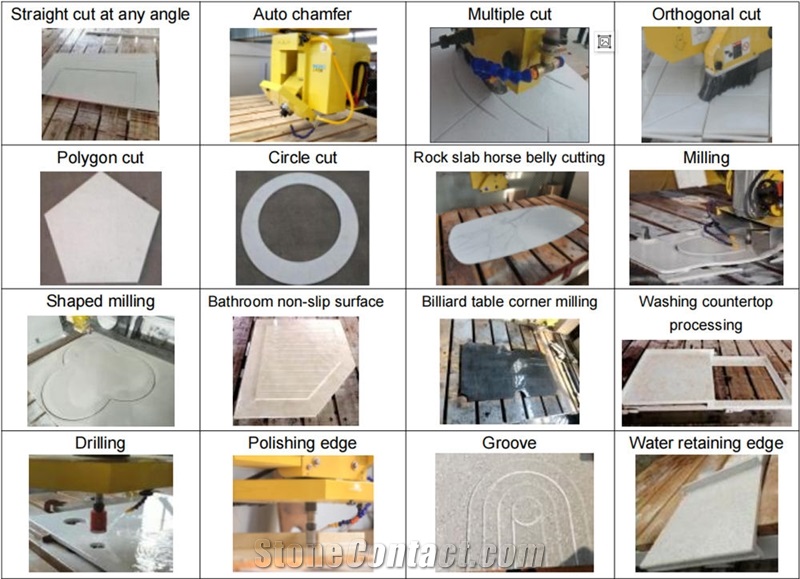

Processed Stone Photos
Components
-

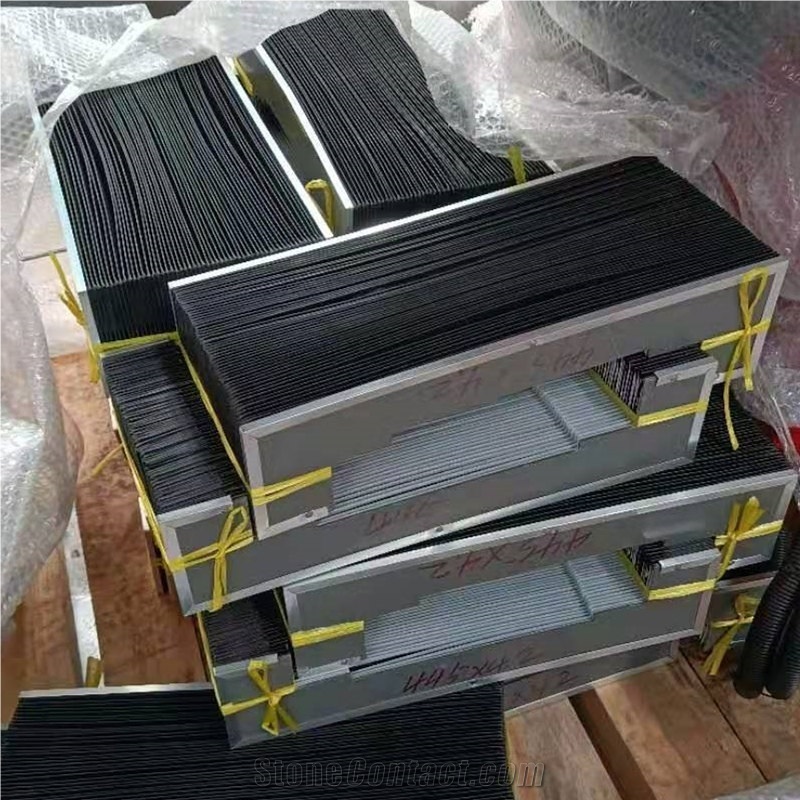

dust cover
¥Payment Required
Consumables
-

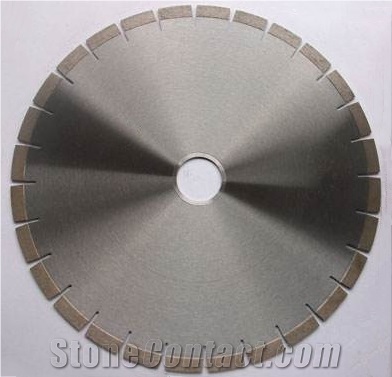

saw blade

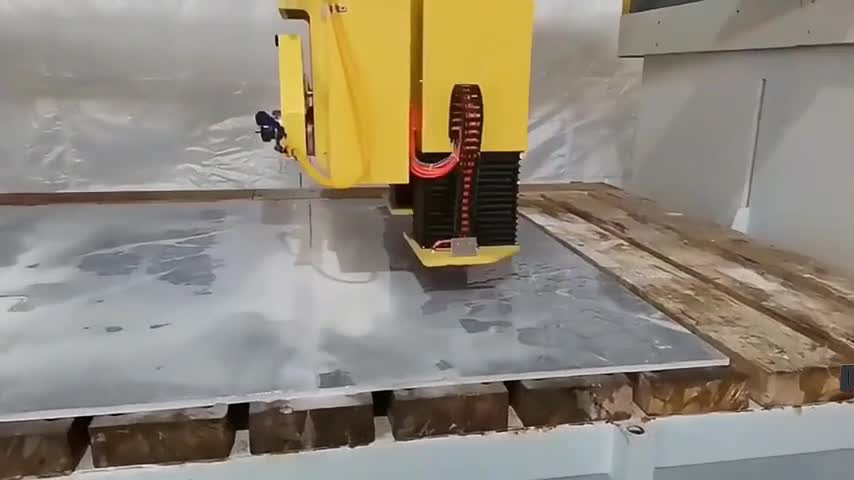

Video
Install Video
Operation Video
