Bridge Saw Circular Cutting Machine For Stone DSL-1200 45Q

FOB Price:€51000-51000

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 1 month
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Regular guidance & maintenance

Supplier

Dianormet Machinery

Dianormet Machinery

Dianormet

PolandPoland idicon

Eatablished :May 24,2023

Main Product:

Stone Saw, Multiwire Saw, Stone Processing Machines, Pass-Through Stone Siding Machine, Single Wire Saw, Transport Lift|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features

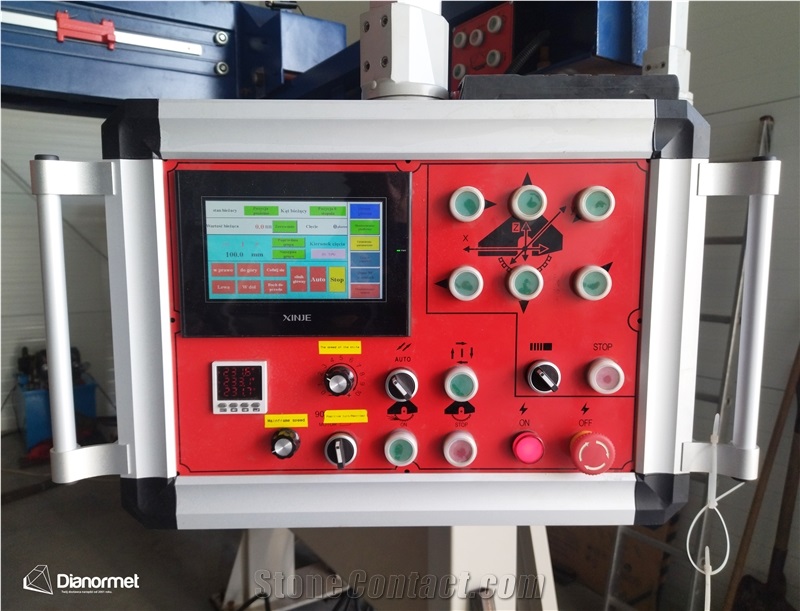

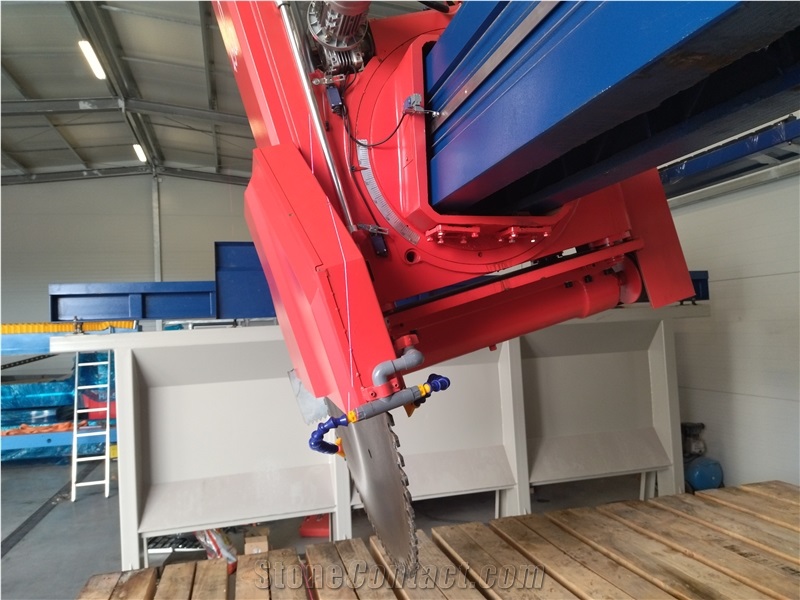

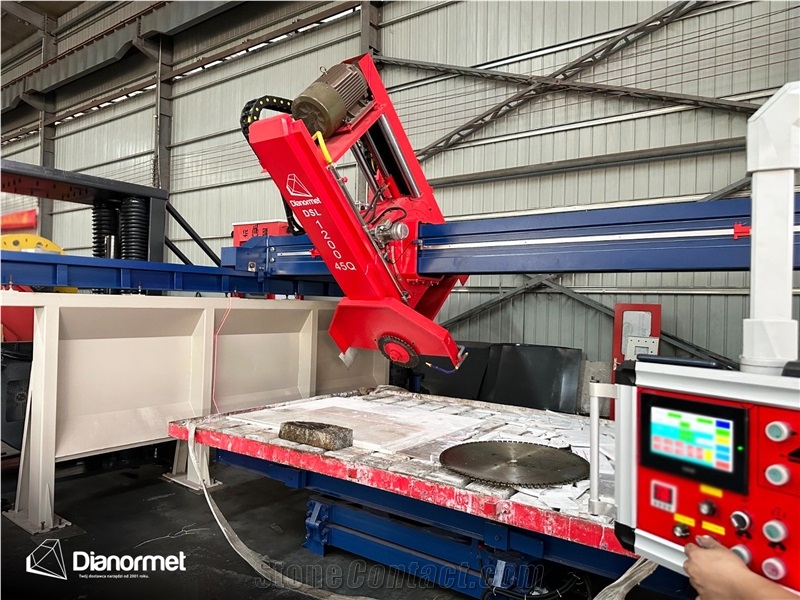

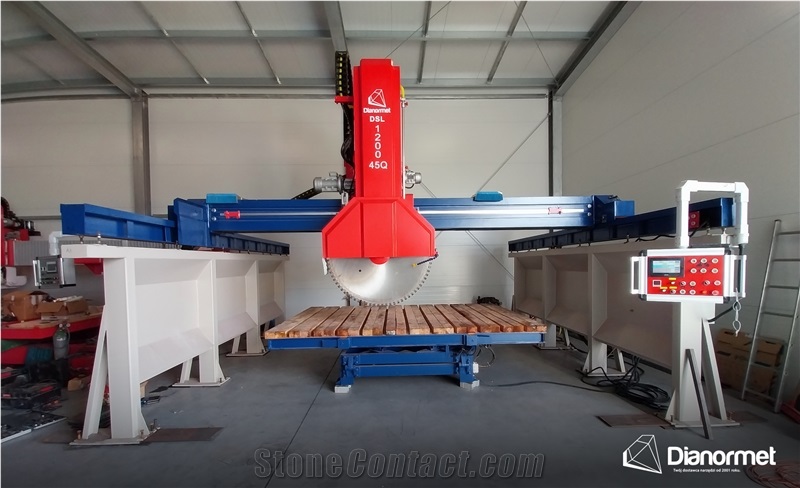

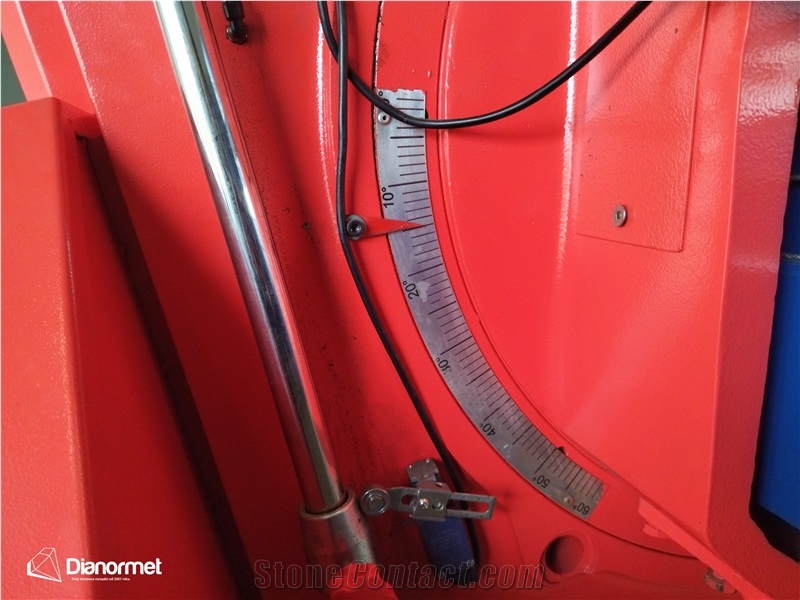

Stone circular machine, steel wall bridge saw DSL1200-45Q controlled automatically, can be fully automated. Parts of the machine are made of high-quality materials. Automatic control ensures the accuracy of cutting. The maximum diameter of the blade is as much as 1200mm. Our bridge saw is an ideal machine for small, medium and large plants needing the ability to cut stone in manual and automatic mode. This saw with a bridge design, is designed to cut stone slabs to a specific size. A tilt up to 45° with step cutting capability (stopping the tilt every 1°) enables prop cutting. The multi-cutting works both when cutting straight and at an angle. The machine has a hydraulically controlled table raised to 85°, rotating 0° – 360° with stopping every 90°, so working with this machine allows fast and convenient stone processing. A convenient touchscreen control panel allows precise settings of this machine. This is a saw of the highest quality, for which we provide a warranty, installation and service of the machine and access to spare parts.
Technical Data
Parameters
Unit
DSL-1200 45Q
Discs diameter
4
1200
Discs number
73
1
Machine width (W)
4
470
Approximate weight
26
8500
Machine length (L)
4
590
Cooling water (minimum pressure 1.5 bar)
32
2
Installed electrical power
kw
30
Machine height (H)
4
420
Processed Stone Photos
