5 Axis CNC Bridge Saw Machine IK-3520-500
FOB Price:$23000-24000
Supplier
Eatablished :Dec 26,2014
Main Product:
5 Axis CNC Bridge Saw, 4+1 CNC Bridge Saw , 45° Miter Cutter, Stone CNC Engraving Machine, Cutting And Edging Work Center, Trepanning Machine|

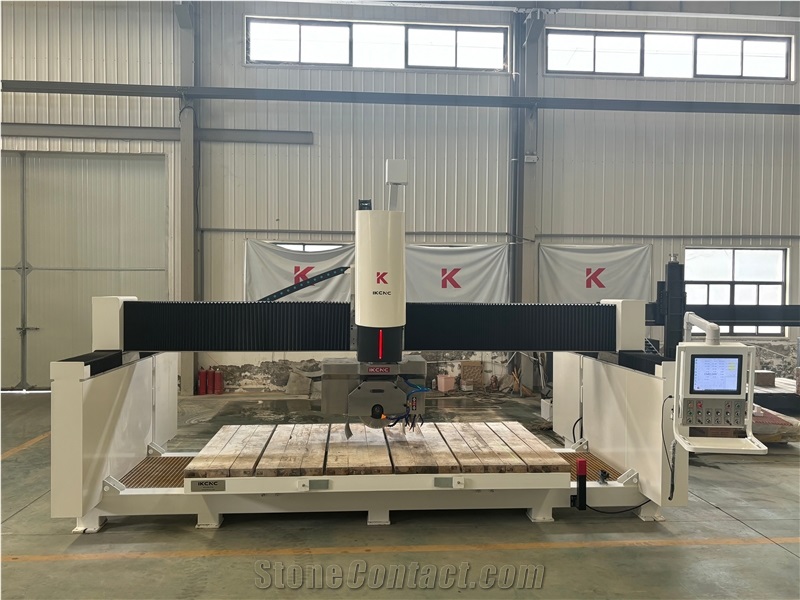

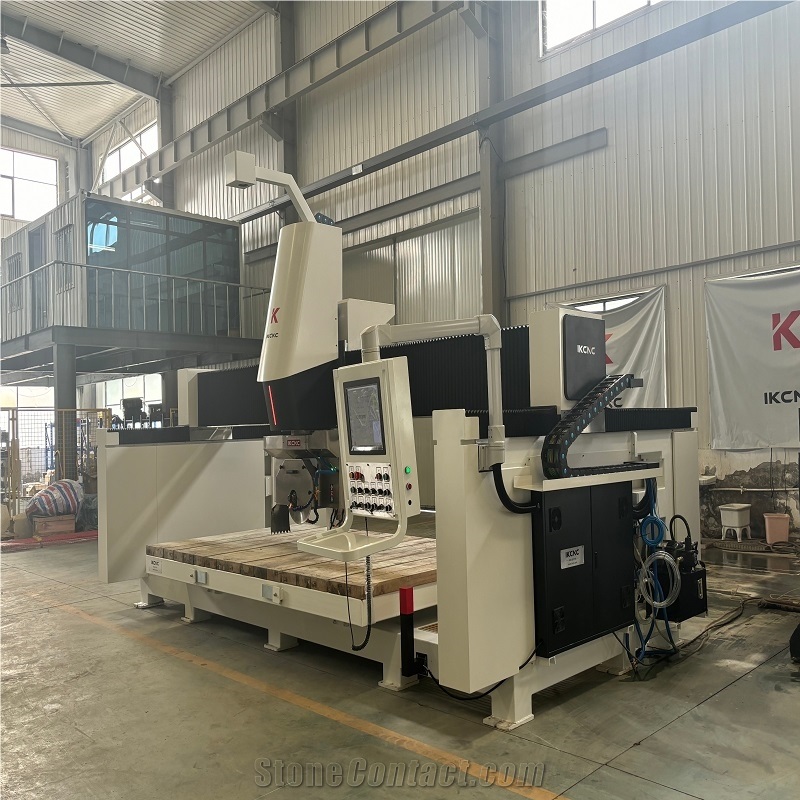

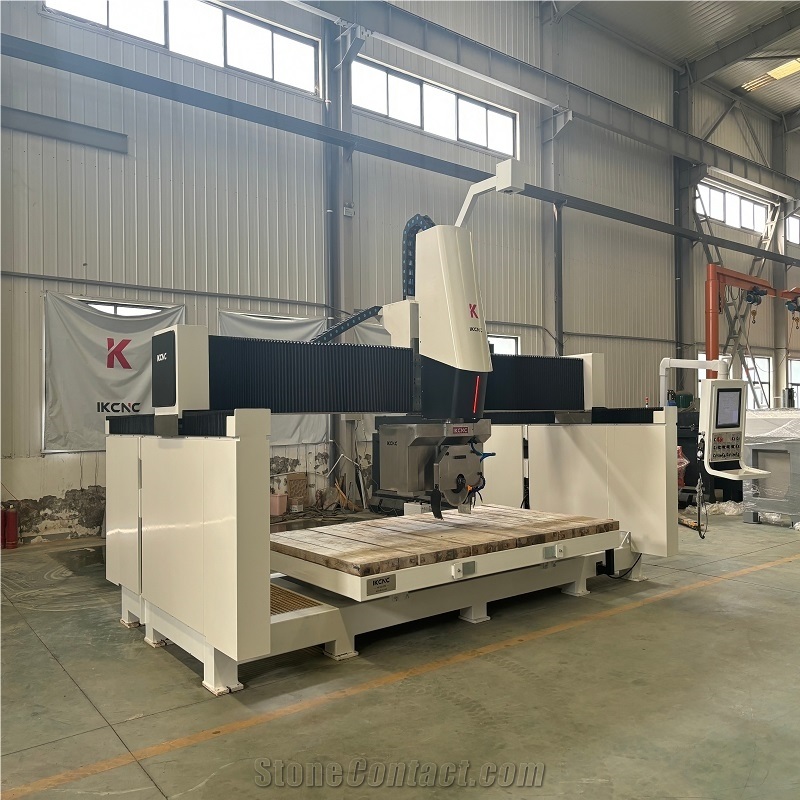

5 Axis CNC Bridge Saw
The machine is an integrated five-axis bridge cutting machine, for the different specifications of the plateand a variety of special-shaped copying processing(such as polygon, triangle, fan, countertop, oval,diamond, circle, rim of horse's belly, chamfer at anyangle, special-shaped copying and engraving). lt has the advantages of fast speed, high cutting precision, simple and intelligent operation, suitable for cutting slab, marble, granite, quartz stone, and other stone processing. lt is the first choice of project and stone processing enterprises.
Parameters |
Unit |
IK-3520-500 |
1 |
Air consumption |
L/min |
20 |
|
Max. liftable weight with all the vacuum cups activated |
Kg |
200 |
|
Max.length of the cut slab |
mm |
3500 |
|
Tools holder head inclination(A axis blade rotation) |
° |
0-90 |
|
Max. workable thickness |
cm |
12 |
|
Max. cutting depth |
cm |
12 |
|
Worktable turn-over degree |
° |
0-90(Automatic) |
|

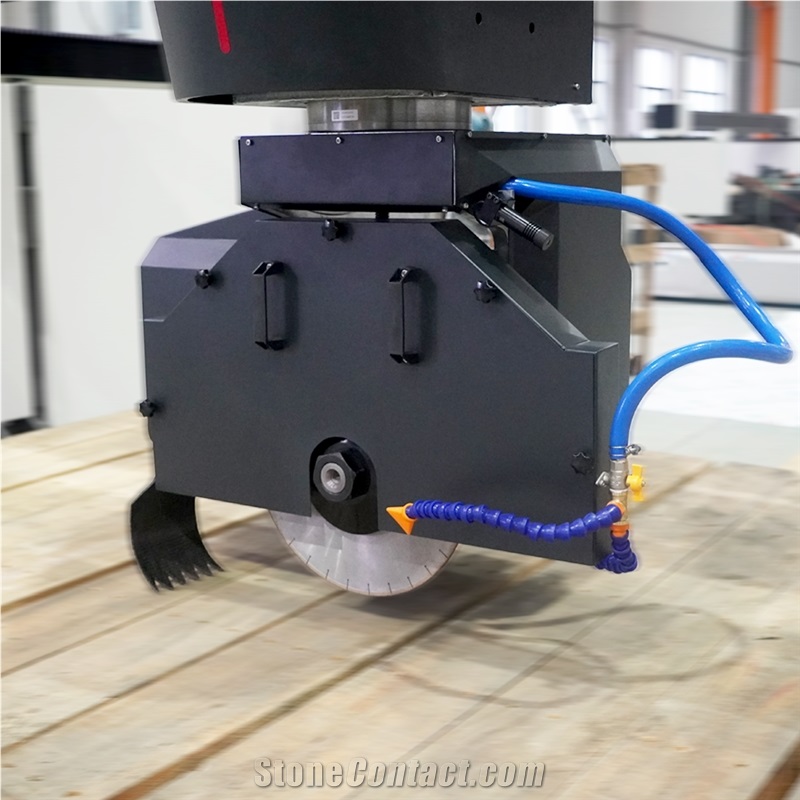

Disc diameter |
mm |
200/230(optional) |
|
Head motor power |
kw |
18.5 |
|
Crossbeam motor power |
kw |
1.5 |
|
Max. revolutions of the spindle unit |
r/min |
0-4000 |
|
C axis blade rotation |
° |
365 |
|
Head raising/lowering stroke(Z axis travel) |
mm |
400 |
|
Vertical cutting spindles motor power |
kw |
18.5 |
|
Dimensions of the work table(L×W) |
mm |
3500*2000 |
|
Machine height |
mm |
3300 |
|
Worktable Weight |
T |
5.5 |
|
Installed electrical power |
kw |
1.5 |
|
Transversal stroke speed (Y displacement speed) |
m/min |
20 |
|
Disc motor power |
kw |
24 |
|
Horizontal stroke speed(X axis displacement speed) |
m/min |
20 |
|
Max.width of the cut slab |
mm |
2000 |
|
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
|
Machine width |
mm |
3100 |
|
Number of vertical cutting spindles |
nr |
1 |
|
Machine length |
mm |
5900 |
|
Cooling water requirement(1.5 bar min. pressure) |
m3/h |
3 |
|

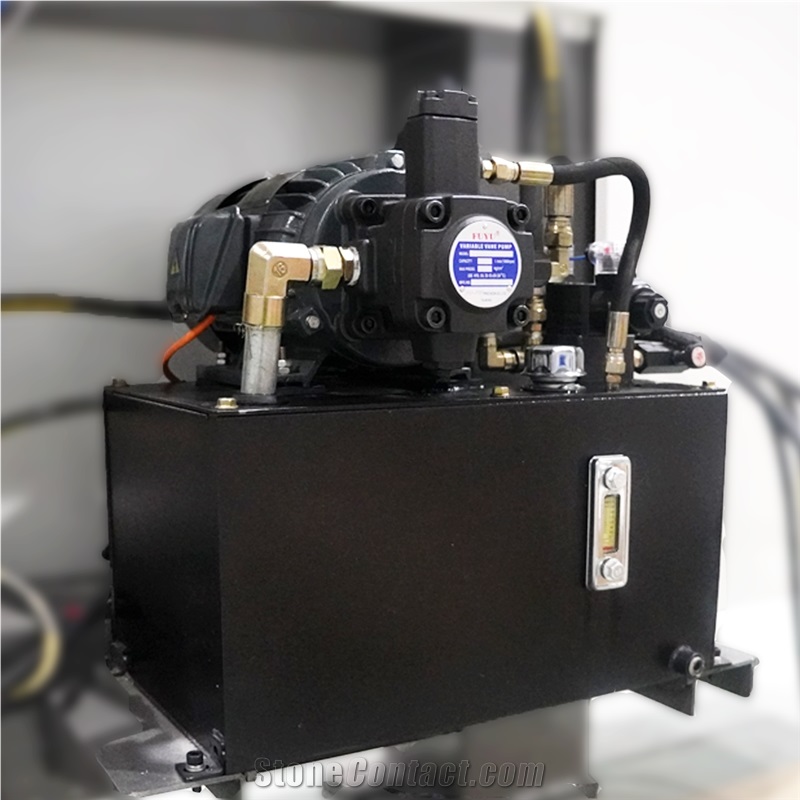

Hydraulic station motor power |
kw |
2.2 |

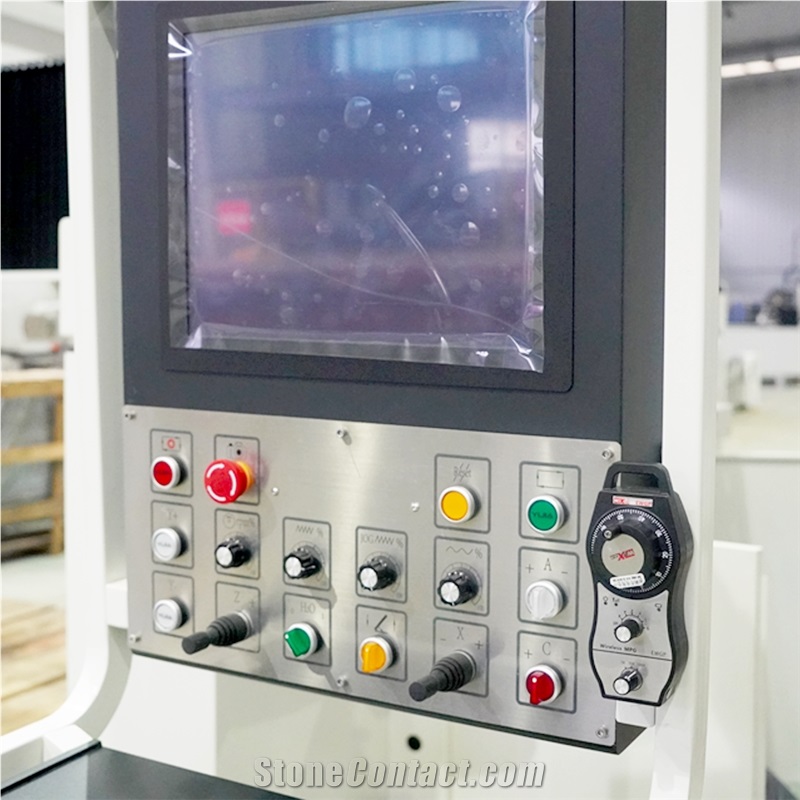

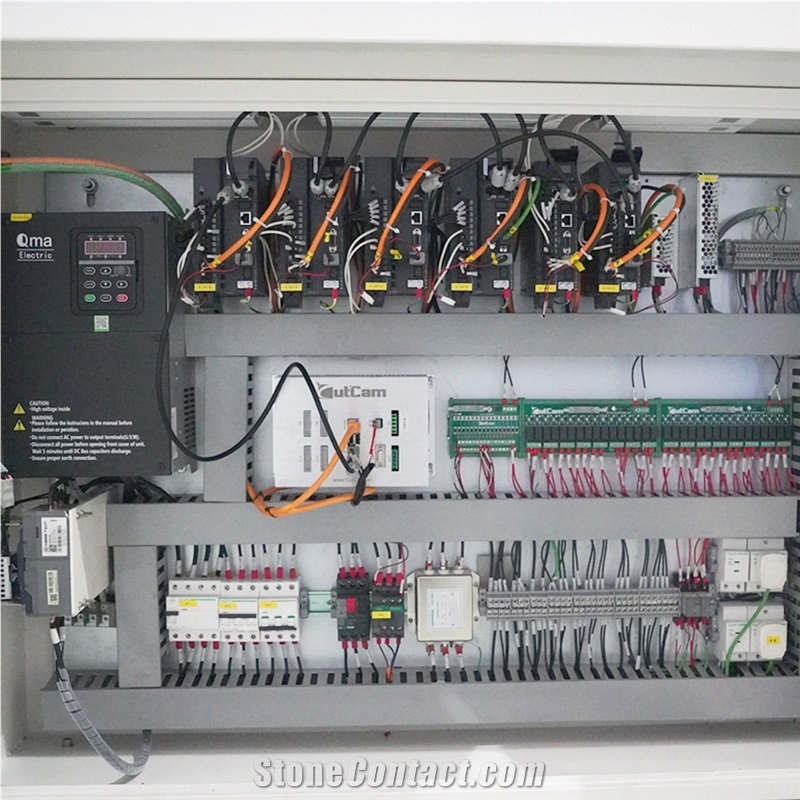

The system: CUTCOM

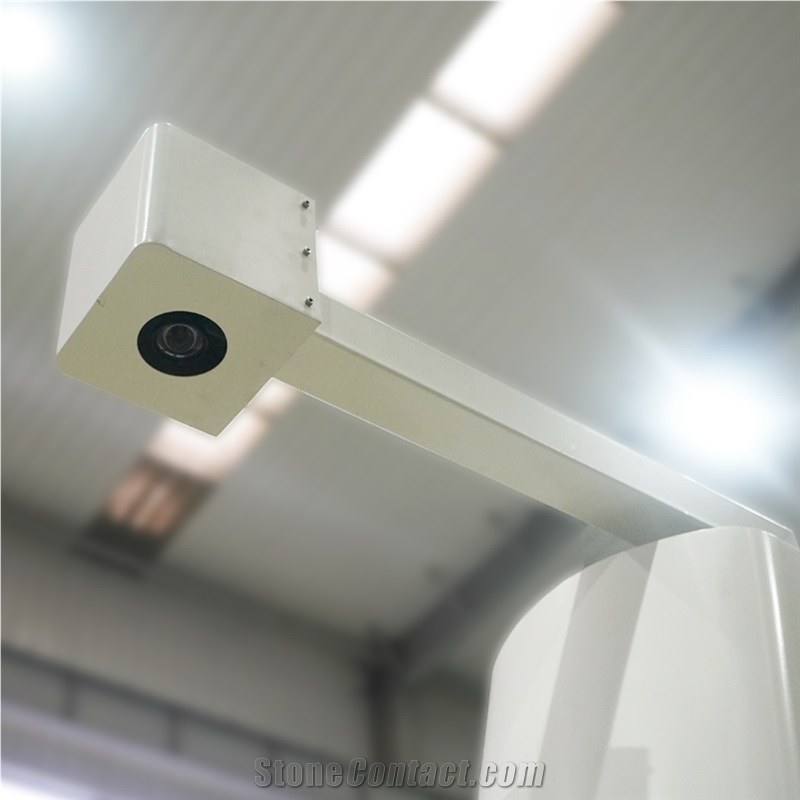

System function: Includes photo, intelligent layout, automatic adsorptionfunction.
Features: efficient andconvenient,save time andlabor
3D copying features: All kinds of lines are generated directly in the software, Simple and intuitive, no programming required
Custom function: Various sizes can be customized according to customer needs, and complex graphics can be cut by entering simple parameters. No need to import CAD drawing, simple and convenient, greatlyimprove production efficiency.

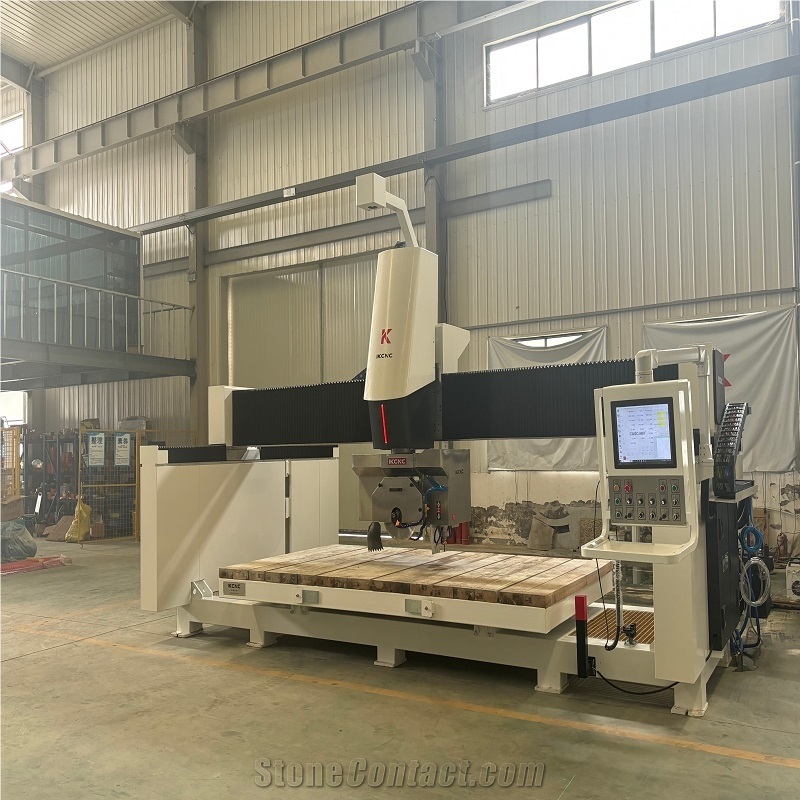

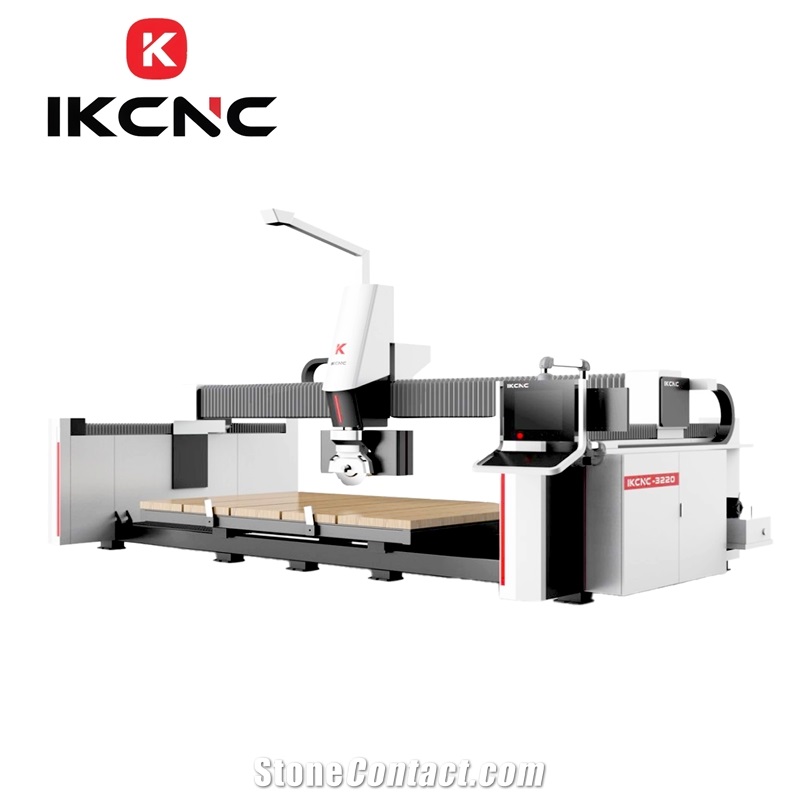

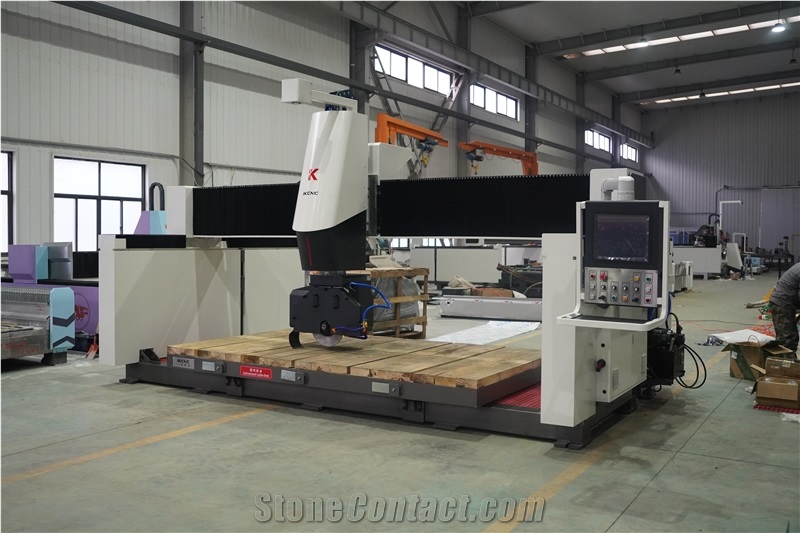

Ikcnc 5 Axis CNC Bridge Saw
The machine is an integrated five-axis bridge cutting machine, for the different specifications of the plate and variety of special-shaped copying processing(such as polygon, triangle, fan, countertop, oval, diamond, circle, rim of horse's belly, chamfer at any angle, special-shaped copying and engraving). It has the advantages of fast speed, high cutting precision, simple and intelligent operation, Suitable for cutting slab, marble, granite, quartz stone, and other stone processing. It is the first choice of project and stone processing enterprises.
-
Ik-3520-500
-
-
-
-
-
-
¥Payment Required -
-
-
-

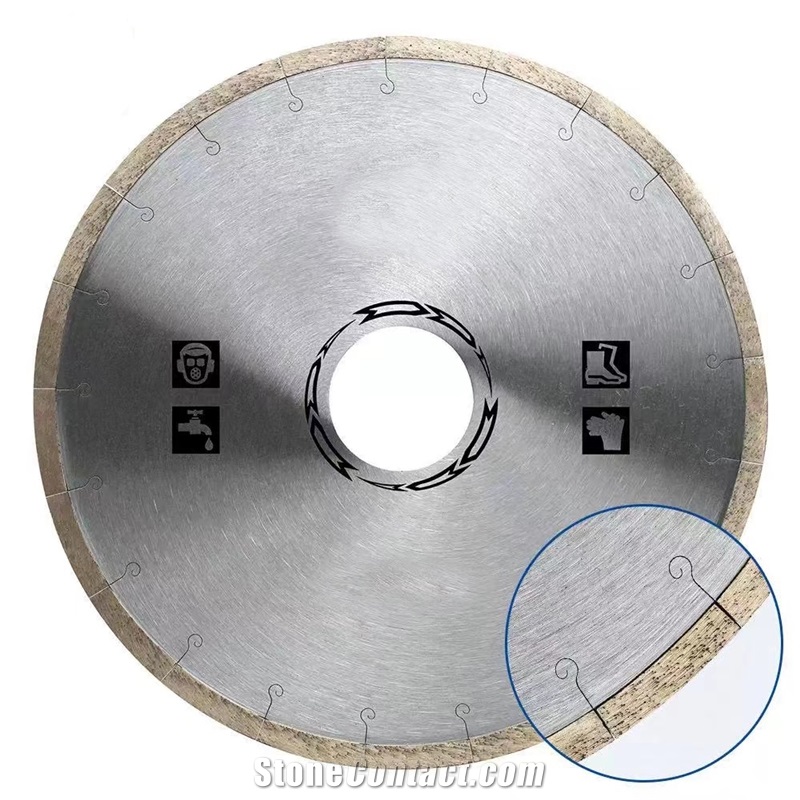

blade
