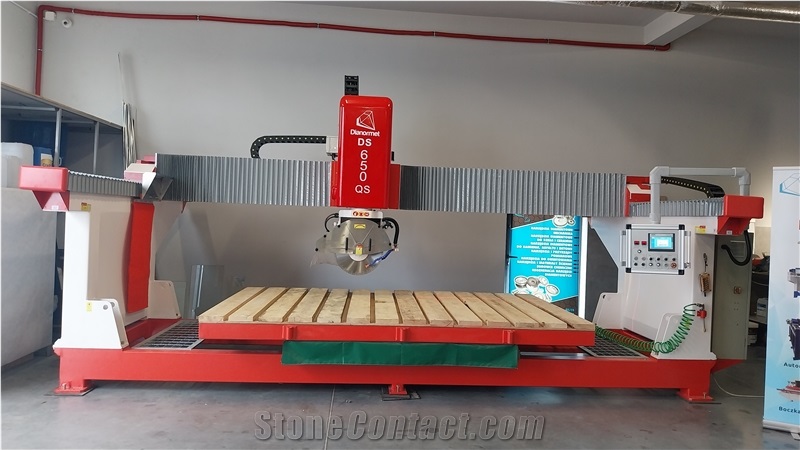

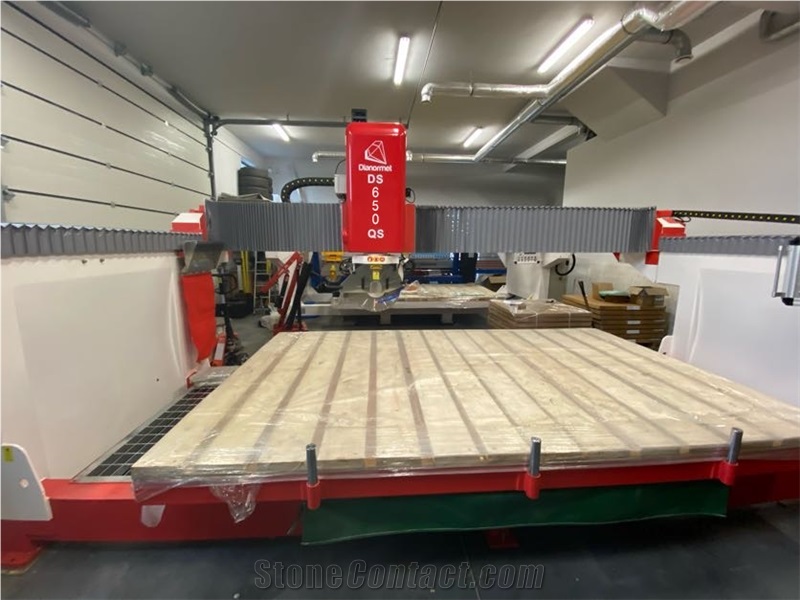

Monoblock Bridge Saw, Stone Circular Saw DS650QS

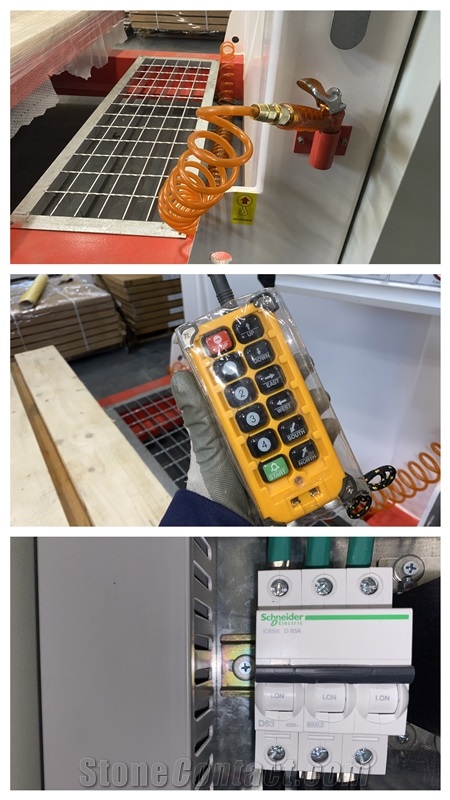

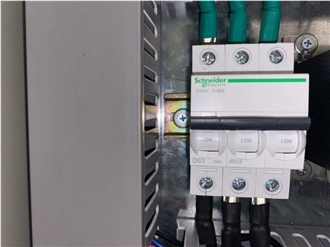

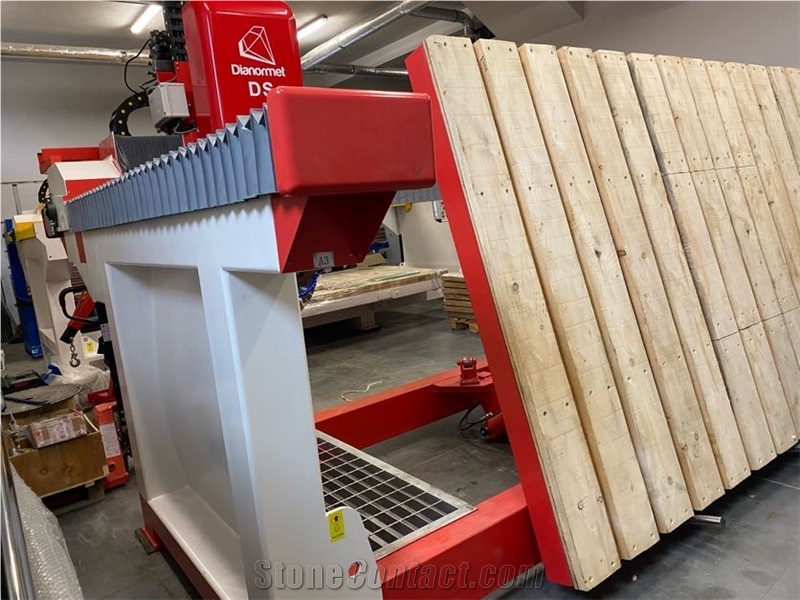

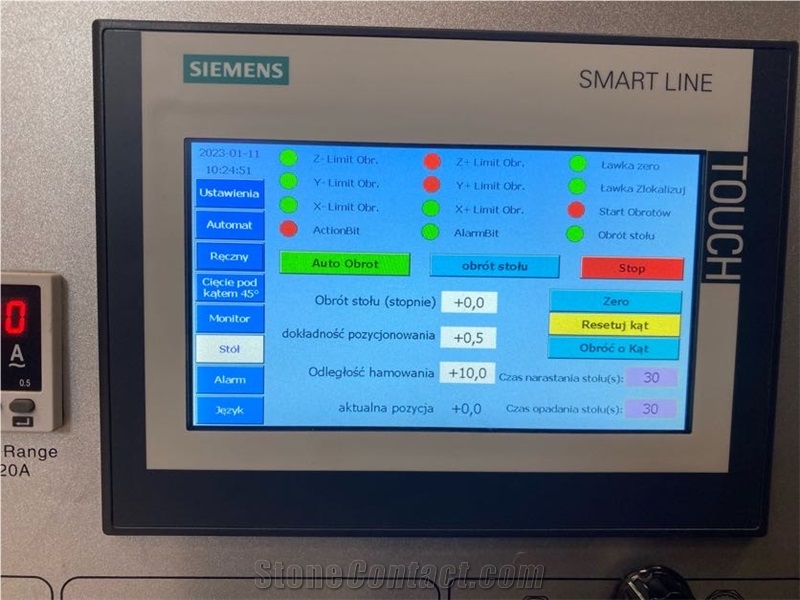

Stone circular saw machine with the possibility of both straight and 45° cutting. Machine with tilting work table up to 85°, with rotation of the work table in increments of 1°. Monobloc machine – no additional costs such as pouring a foundation for the table, possibility to move the machine to another location at any time. Head tilting 0° – 45° and with rotation of 0° – 90° – 180°- 270°. The machine is very solid and stable due to its weight (~6t). The machine uses a hydraulic oil cooler and automatic central lubrication, as well as helical gears, which makes the operation of the machine much quieter and also means it will work for longer. The maximum saw blade diameter is 650mm. The circular machine uses top-quality Siemens and Schneider components. Control on the machine is controlled by a touchscreen and joysticks as well as buttons on the control panel, and also by a wireless remote controller. The main motor has an inverter, which allows smooth regulation of the rotational speed. The circular saw machine has a built-in water hose for rinsing. The built-in laser can be used to position cutting lines. Z-axis operation is carried out on a screw. To determine the limit position, it is necessary to move the disc to the table and confirm the current position with a single button on the touchscreen. Types of cutting In manual mode, the operation of the machine is controlled mainly by joysticks on the control panel. There is also an option to move the head by a predefined distance in a specific axis (“Manual travel distance”). With this option, we can move the blade edge precisely by, for example, 200mm to the right. In automatic mode, up to 12 cutting programmes can be stored in the X axis (left-right) and in the Y axis (front-back). In addition, the head will return to the safe-home position automatically at the end of the program. Machine design Solid main bridge – cast iron tool-head with tilting angle 0° – 45°, rotation 0° – 90° – 180° – 270° and laser pointer monolithic steel base with 2 horizontal beams ( which replace the foundations) work table, swivelling up to 85°, and rotating in 1° increments automatic central lubrication Movement in specific axes X axis – Movement of the tool slide on the bridge, driven by an helical rack and gear wheel; supported by linear carriages Y axis – Movement of the bridge along horizontal guideways, powered by an helical rack and gear wheel; bearing on linear carriages C axis – Rotation of the head with blade 0° – 90° – 180° – 270° A axis – Disc rotation between 0° and 45° Z axis – Screw drive for even greater accuracy and precision in cutting Did you know? We provide warranty and post-warranty service and spare parts. We will organize the transportation of the machine (priced individually) and install the machine and provide training for you and your employees. As one of the few machine suppliers we mill the working table.
