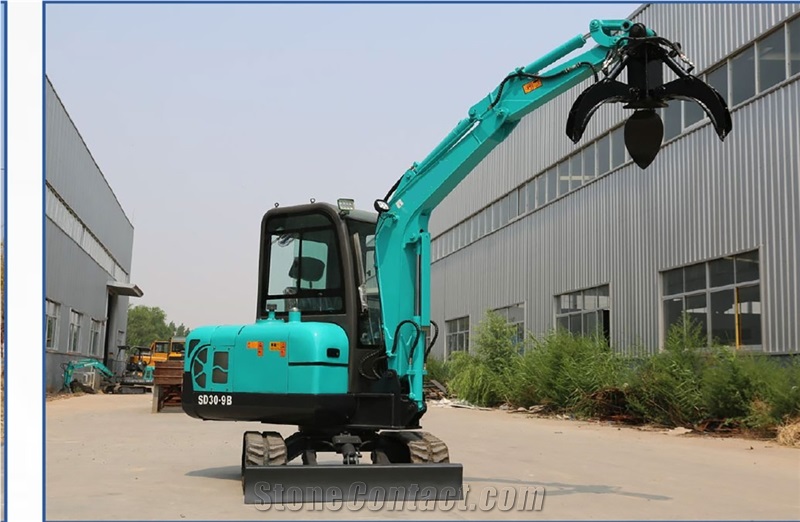

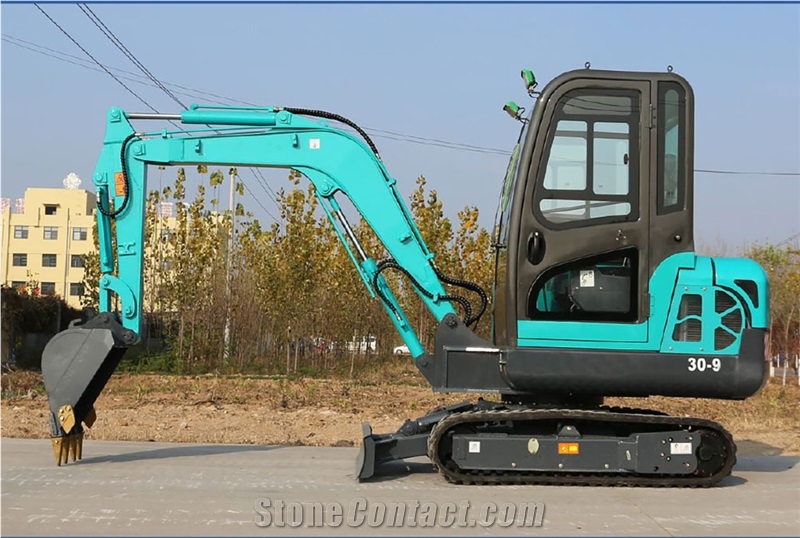

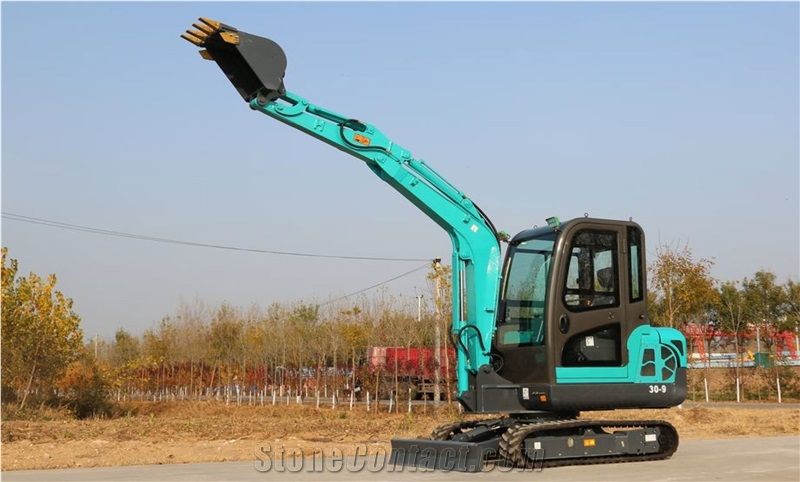

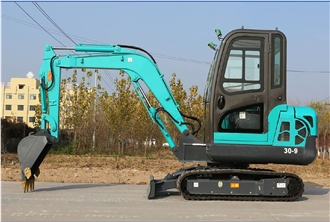

SD30-9B Mini Excavator

Name: SD30-9B Mini Excavator
Brand: XIAMEN SHUINAN MACHINE CO.,LTD.
SKU: 7321
Price: 5000 USD
Availability: InStock

FOB Price:$5000-20000

Type: Stone Quarry MachinesQuarry Heavy EquipmentsExcavator

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 35 day

Warranty:12 Months

Install and Guarantee:Customer pay for installation

Maintenance:Remote troubleshooting, Field troubleshooting

Trade Terms

Port: XIAMEN- China

Delivery Details: FOB,CFR,CIF,EXW,Express Delivery

Payment :

Supplier

XIAMEN SHUINAN MACHINE CO.,LTD.

SHUINAN MACHINE

China level 5YR

Eatablished :Sep 10,2018

Main Product:

Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|

Contact supplier

Start Order

You may also like

SD40U Mini Excavator

EXCAVATOR SWING GEAR BOX DH225-7

The Crawl Type Excavator For Quarry

L920 Wheel Loader

Machinery Function Features

SD30-9B Mini Excavator

Technical Data

Parameters	Unit	SD30-9B
Max.Sinking Depth of Bulldozer	mm	170
Overall Length	mm	4450
Overall Width	mm	1450
Platform Width	mm	1250
Machine Weight	kg	2600
Bucket capacity	m3	0.11
Bucket Width	mm	550
Engine hood height	mm	1320
Rated Power	kw	20
MaxDigging Radius	mm	4550
Boom Length	mm	2150
Max.Digging Height	mm	4010
Rated Rotary speed of Engine	r/min	2200
MinGround Clearance	mm	295
Max Platform Rotation Speed	rmp	11
Travel Motor		Eaton
Hydraulic Pressure	MPa	18
Max.Dumping Height	mm	2550
Overall Height	mm	2210
Track Length	mm	1850
Track Width	mm	280
Min.Radius of Gyration	mm	1995
Max Travel Speed	Km/h	2.7
Arm Length	mm	1150
Max.Lifting Height of Bulldozer	mm	205
Platform Height Above Ground	mm	560
Radius of Tail Gyration	mm	1975
Max.Traction	KN	18
Max Grade	°	30
Digging Radius of Max.Digging Height	mm	2420
Rotary Motor		NACHI
Max.Digging Depth	mm	2900
Ground Pressure	kpa	32
