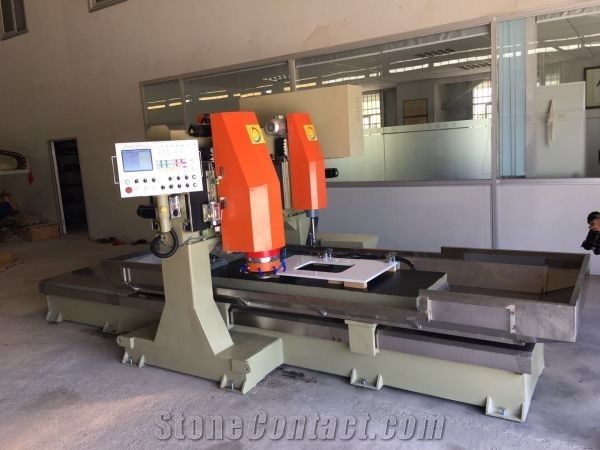

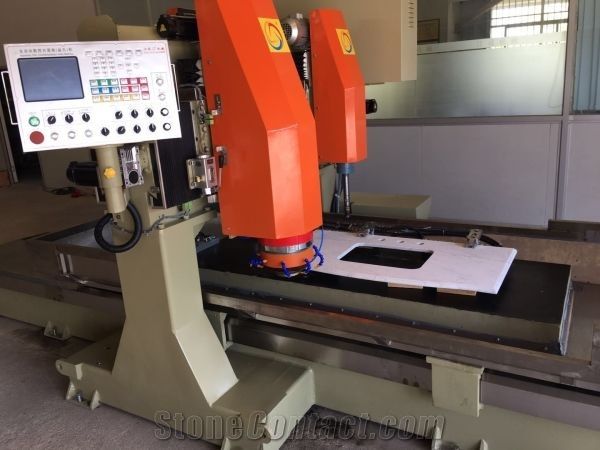

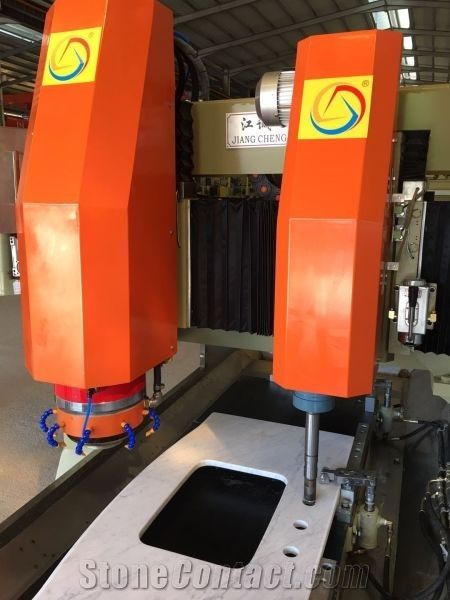

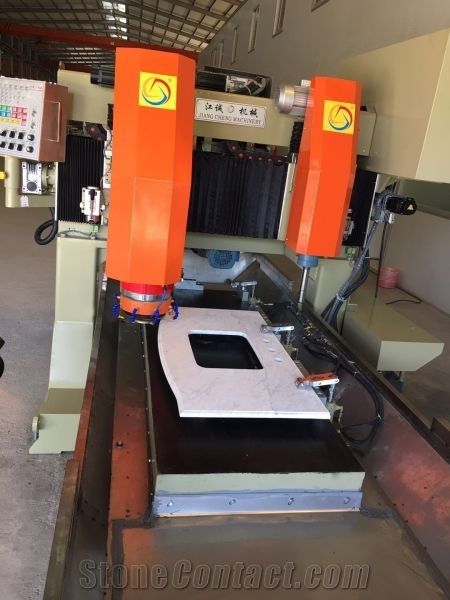

Automatic CNC counter top(basin hole) machine
FOB Price:$32000-33000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesSink Hole Cutting Machine
Usage:
Granite, Marble, Artificial Stone
After-Sale
Lead Time:
20-25days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Machinery Function Features

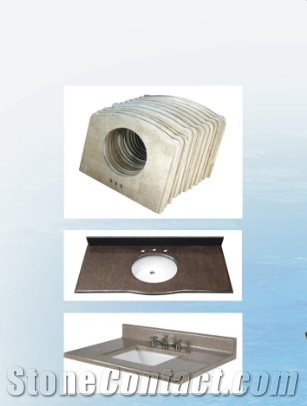

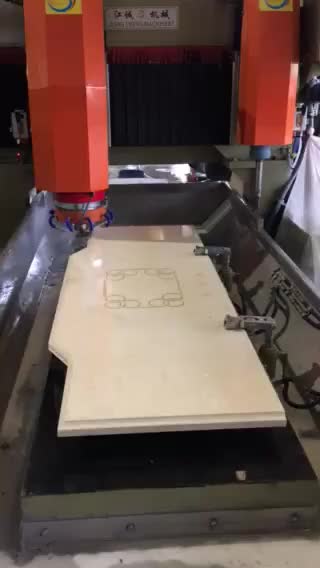

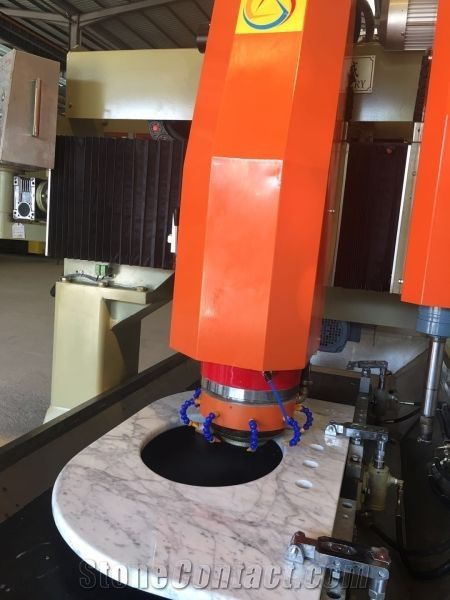

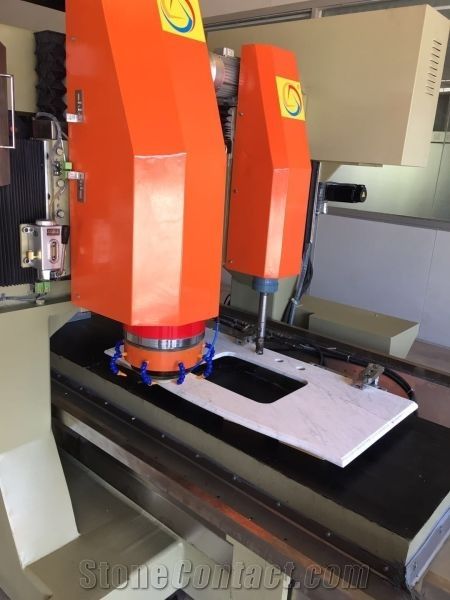

The machine will be digital control technology and artificial intelligence technology perfect combination of unique control system, without complicated mapping, an effective solve a variety of special-shaped table and the basin of the automated processing problems. With high precision machining, high efficiency, wide adaptability, energy saving and environmental protection, simple operation and so on. The structure of the three power head can reduce the frequent tool change process, greatly improving the production efficiency. Each action is servo control, can quickly and accurately complete the processing process. The main polishing motor with frequency conversion of the water-cooled spindle motor, you can automatically complete the tool change, tension and other actions. Workpiece compression using automatic hydraulic principle, saving time and effort, the machine is suitable for all kinds of forms of countertops, kitchen top processing, is the industry's most beautiful equipment.
Technical Data
Parameters |
Unit |
JCTP |
Total power |
kW |
26 |
Edge polish speed |
m/min |
0-2 |
Control system |
CNC |
|
Machine overall length |
mm |
4500 |
Edge polish thickness |
mm |
0-35 |
Voltage |
three phase/380V(220V) |
|
Edge polish/suction hole diameter |
mm |
60-150 |
Machine overall width |
mm |
2200 |
Cutting line speed |
m/s |
0-48 |
Cutting table size |
mm |
1850X625 |
Edge polish/suction hole line speed |
m/s |
0-30 |
Maximum suction hole depth |
mm |
40 |
Max. processing length |
mm |
1850 |
Machine overall height |
mm |
1900 |
Max. loading weight |
kg |
2000 |
Blade diameter |
mm |
250 |
Max. cutting hole diameter |
mm |
25-40 |
Approx. Weight |
Kg |
3800 |
Max. Processing Width |
mm |
650 |
Max. processing thickness |
mm |
40 |
