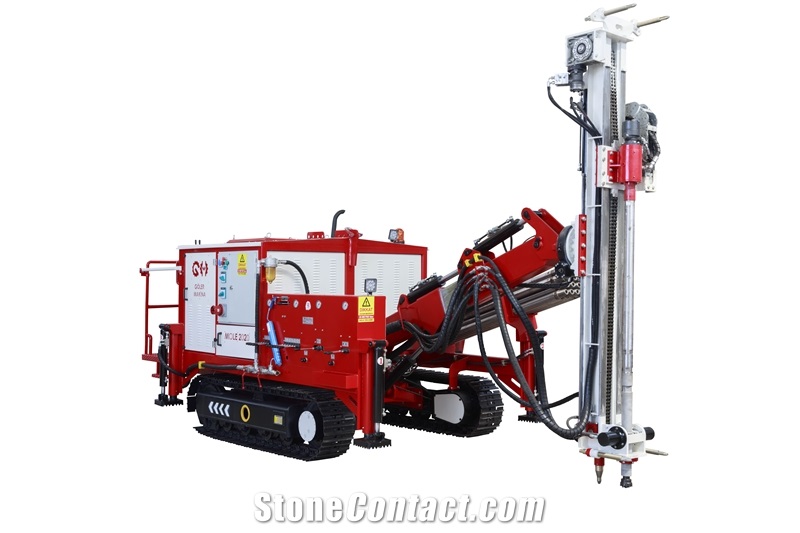

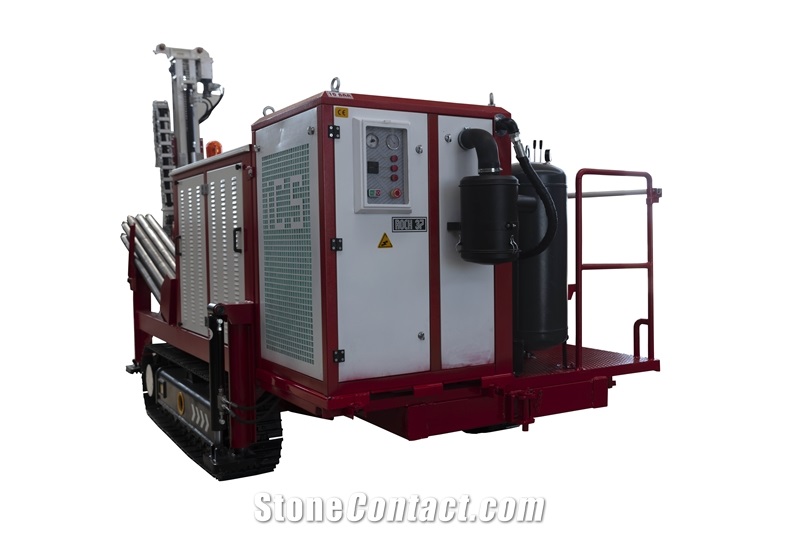

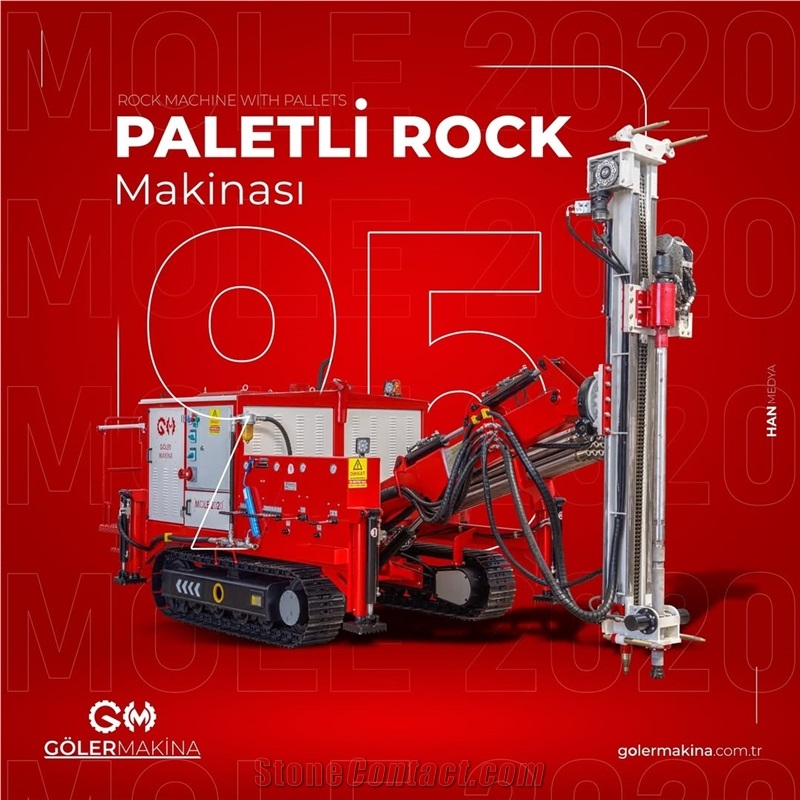

Tracked Rock Drilling Machine
FOB Price:
Type:
Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Usage:
Granite, Marble, Onyx, Basalt, Quartzite, Travertine
After-Sale
Lead Time:
1-2
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade
Supplier
Eatablished :Oct 06,1995
Main Product:
ROCK MACHINE WITH PALLETS, ROCK MACHINE WITH TIRES, BRIDGE TO WIRE CUTTING MACHINE, WIRE CUTTING MACHINE, HYDRAULIC DRILLING MACHINE, CROSS CUTTING MACHINE BAND|
Machinery Function Features
Fast and Powerful Drilling.
Night Work Lamps.

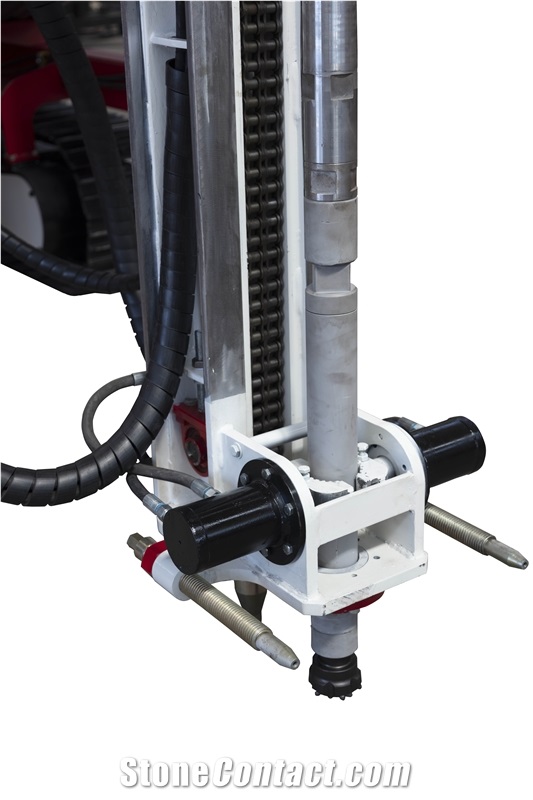

Hydraulic Jaw System,
Keyless Pipe Removal and Installation.
Easy Installation Works 3-4 Times Faster Compared to Drilling.
One Person Usage Ability.
Italian Walking System (Crawler). 5 TONS
Double Engine (Diesel - Electric).
Drilling Using Dual Motors - Walking.
Engine Type ↔ Electric - Diesel (Dual Engine)
DIESEL ENGINE ; 4 Cylinders Air Cooled 55 kw 80 hp DEUTZ
ELECTRIC MOTOR 22 kw 30 hp
Gun Left Right Rotation ↔ Hydromotor Gun
Forward and Reverse ↔ Hydromotor - Transmission Boost
Machine Back and forth ↔ Italian 6 TON Crawler Walking
Drilling Speed ↔ 2 m / 6 -10 Min. (6-10 Bar)
Drilling Diameter: Between 85 mm - 100 mm
Air Consumption ↔ 2.1 m³ - 4.5 m³ (6-10 Bar)
Tower Angle ↔ Horizontal - Vertical - Parallel - Angled
Total Weight ↔ 5.900 Kg
Usage ↔ Balancing - Boom Sliding - Slide Slide - Vertical Slide Pistons - Tower Rotation System and Disassembly Jaws,
Length ↔ 6 m.
Width ↔ 2.1 m.
Height ↔ 2 m.
Supplied Accessory ↔ 2 mt 14+1 Pcs. Pipe / PERVOL GUN
Technical Data
Parameters |
Unit |
PALETLİ ROCK MAKİNASI |
Working Pressure |
Mpa |
mpa |
Rotary Head Max. Torque |
Nm - lbf.in |
nm |
Total Weight |
Kg |
kg |
Feed Unit Pull Up Force |
kgf |
kgf |
Air Consumption |
m3/min |
m3/dak |
Rotary Head Speed |
r/min |
r |
Feed Stroke |
m |
m |
Overall Width |
mm |
mm |
Pull Up & Pull Down Speed |
m/min |
6 |
Usable Rock Hardnees |
F |
f |
Drill Rod Diameter |
mm |
85-100 |
Feed Unit Pull Down Force |
kgf |
kgf |
Overall Length |
mm |
mm |
Feed Length (MAST) |
mm |
mm |
Drilling Depth |
m |
30 |
Feed Unit Travel Length |
mm |
mm |
Overall Height |
mm |
mm |
Drill Rod Length |
m |
2 |
